Getting Started With STM32G0
Microcontroller 32-bit ARM Cortex-M0 RISC 64KB Flash 3.3V 32-Pin LQFP Tray
STM32G0 is suitable for applications in consumer, industrial and appliance domains and is ready for the Internet of Things (IoT) solutions. This article mainly introduces pinout, diagram, datasheet and other detailed information about STMicroelectronics STM32G0.
STM32G030K8T6
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.18741 | $2.19 |
| 10+ | $2.06359 | $20.64 |
| 100+ | $1.94678 | $194.68 |
| 500+ | $1.83659 | $918.3 |
| 1000+ | $1.73263 | $1732.63 |
The STM32G0 mainstream microcontrollers are based on high-performance Arm® Cortex®-M0+ 32-bit RISC core operating at up to 64 MHz frequency. Offering a high level of integration, they are suitable for a wide range of applications in consumer, industrial and appliance domains and ready for the Internet of Things (IoT) solutions.
The devices incorporate a memory protection unit (MPU), high-speed embedded memories(8 Kbytes of SRAM and up to 64 Kbytes of Flash program memory with reading protection, write protection), DMA, an extensive range of system functions, enhanced I/Os, and peripherals. The devices offer standard communication interfaces (two I2Cs, two SPIs / one I2S, and two USARTs), one 12-bit ADC (2.5 MSPs) with up to 19 channels, a low-power RTC, an advanced control PWM timer, four general-purpose 16-bit timers, two watchdog timers, and a SysTick timer.
The devices operate within ambient temperatures from -40 to 85°C. They can operate with supply voltages from 2.0 V to 3.6 V. Optimized dynamic consumption combined with a comprehensive set of power-saving modes allows the design of low-power applications. VBAT direct battery input allows keeping RTC and backup registers powered.
The devices come in packages with 8 to 48 pins.
Symbol

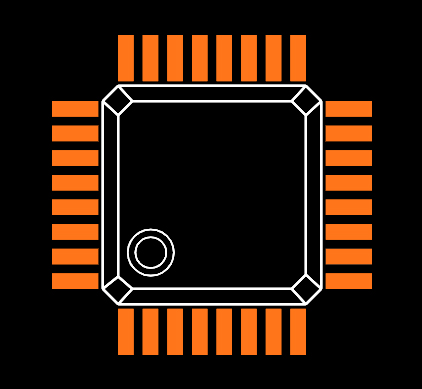

Footprint
3D Model
• Core: Arm® 32-Bit Cortex®-M0+ CPU, Frequency Up To 64 MHz
• -40°C To 85°C Operating Temperature
• Memories
– Up to 64 Kbytes Of Flash Memory With Protection
– 8 Kbytes Of SRAM With HW Parity Check
• CRC Calculation Unit
• Reset And Power Management
– Voltage Range: 2.0 V To 3.6 V
– Power-On/Power-Down Reset (POR/PDR)
– Low-Power Modes: Sleep, Stop, Standby
– VBAT Supply For RTC And Backup Registers
• Clock Management
– 4 To 48 MHz Crystal Oscillator
– 32 kHz Crystal Oscillator With Calibration
– Internal 16 MHz RC With PLL Option
– Internal 32 kHz RC Oscillator (±5 %)
• Up To 44 Fast I/Os
– All Mappable On External Interrupt Vectors
– Multiple 5 V-Tolerant I/Os
• 5-Channel DMA Controller With Flexible Mapping
• 12-Bit, 0.4 µs ADC (Up To 16 ext. Channels)
– Up To 16-Bit With Hardware Oversampling
– Conversion Range: 0 To 3.6V
• 8 Timers: 16-Bit For Advanced Motor Control, Four 16-Bit General-Purpose, Two Watchdogs, SysTick Timer
• Calendar RTC With Alarm And Periodic Wakeup From Stop/Standby
STMicroelectronics STM32G030K8T6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32G030K8T6.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 32-LQFP | |
| Surface Mount | YES | |
| Data Converters | A/D 16x12b | |
| Number of I/Os | 30I/Os | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tray | |
| Series | STM32G0 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 32Terminations | |
| Terminal Position | QUAD |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Form | GULL WING | |
| Supply Voltage | 3V | |
| Terminal Pitch | 0.8mm | |
| Reach Compliance Code | compliant | |
| Supply Voltage-Max (Vsup) | 3.6V | |
| Supply Voltage-Min (Vsup) | 2V | |
| Oscillator Type | Internal | |
| Speed | 64MHz | |
| RAM Size | 8K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2V~3.6V | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC | |
| Core Processor | ARM® Cortex®-M0+ | |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Product Attribute | Attribute Value | |
|---|---|---|
| Clock Frequency | 48MHz | |
| Program Memory Type | FLASH | |
| Core Size | 32-Bit | |
| Program Memory Size | 64KB 64K x 8 | |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART | |
| Bit Size | 32 | |
| Has ADC | YES | |
| DMA Channels | YES | |
| PWM Channels | YES | |
| Length | 7mm | |
| Width | 7mm | |
| RoHS Status | RoHS Compliant |
• Lighting
• Industrial Devices
• Motor Control
• Advanced Control
• Smartphones
• Lot Devices
• Rechargeable Connected Devices
• Home Appliances
• Alarms And Safety
• Advanced User Interfaces
French-Italian multinational STMicroelectronics manufactures a broad portfolio of semiconductor and discrete technologies. Their portfolio includes analog, discrete, digital logic, memory, ARM-based microcontrollers, power management ICs and MEMS sensors.
The breadth of STMicroelectronics's offering fits across medical, industrial, communication and multimedia applications.
STMicroelectronics is Europe’s largest semiconductor chip maker based on revenue.
Download datasheets and manufacturer documentation for STM32G030K8T6
