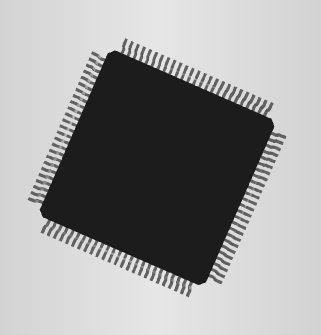

STM32H743VIT6 Microcontroller: 480MHz, 100-LQFP, Pinout and Datasheet

STM32H743VIT6 is based on the high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 480 MHz. The Cortex® -M7 core features a floating-point unit (FPU) which supports Arm® double-precision (IEEE 754 compliant) and single-precision data-processing instructions and data types. STM32H743VIT6 supports a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.

STM32H743VIT6 incorporates high-speed embedded memories with a dual-bank Flash memory of up to 2 Mbytes, up to 1 Mbyte of RAM (including 192 Kbytes of TCM RAM, up to 864 Kbytes of user SRAM, and 4 Kbytes of backup SRAM), as well as an extensive range of enhanced I/Os and peripherals connected to APB buses, AHB buses, 2x32-bit multi-AHB bus matrix, and a multi-layer AXI interconnects supporting internal and external memory access.

STM32H743VIT6 offers three ADCs, two DACs, two ultra-low-power comparators, a low-power RTC, a high-resolution timer, 12 general-purpose 16-bit timers, two PWM timers for motor control, five low-power timers, a true random number generator (RNG). The devices support four digital filters for external sigma-delta modulators (DFSDM). They also feature standard and advanced communication interfaces.

STM32H743VIT6 Symbol

STM32H743VIT6 Footprint

STM32H743VIT6 3D Model

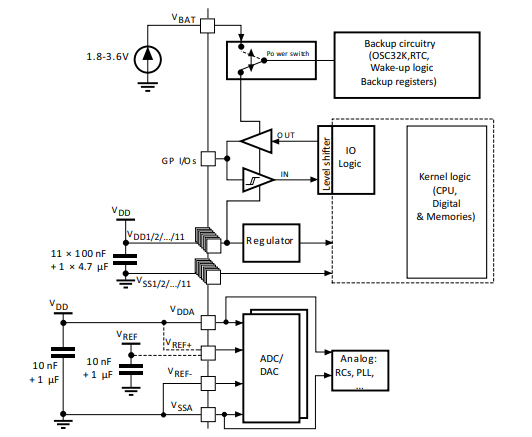

STM32H743VIT6 Power Supply Scheme

Core

• 32-bit Arm® Cortex®-M7 core with double-precision FPU and L1 cache: 16 Kbytes of data

and 16 Kbytes of instruction cache; frequency

up to 480 MHz, MPU, 1027 DMIPS/

2.14 DMIPS/MHz (Dhrystone 2.1), and DSP

instructions

Memories

• Up to 2 Mbytes of Flash memory with reading while-write support

• Up to 1 Mbyte of RAM: 192 Kbytes of TCM

RAM (inc. 64 Kbytes of ITCM RAM +

128 Kbytes of DTCM RAM for time-critical

routines), Up to 864 Kbytes of user SRAM, and

4 Kbytes of SRAM in the Backup domain

• Dual mode Quad-SPI memory interface

running up to 133 MHz

• Flexible external memory controller with up to

32-bit data bus: SRAM, PSRAM,

SDRAM/LPSDR SDRAM, NOR/NAND Flash

memory clocked up to 100 MHz in

Synchronous mode

• CRC calculation unit

Security

• ROP, PC-ROP, active tamper

General-purpose input/outputs

• Up to 168 I/O ports with interrupt capability

Reset and power management

• 3 separate power domains which can be

independently clock-gated or switched off:

– D1: high-performance capabilities

– D2: communication peripherals and timers

– D3: reset/clock control/power management

STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
