STM32H743ZIT6 is based on the high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 480 MHz. This article will introduce more details about STM32H743ZIT6, including Description, Block diagram, CAD model, Features, Power-up/power-down sequence, Timer feature comparison, Package information, and so on.
STM32H743ZIT6
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $14.90811 | $14.91 |
| 10+ | $14.06425 | $140.64 |
| 100+ | $13.26816 | $1326.82 |
| 500+ | $12.51714 | $6258.57 |
| 1000+ | $11.80862 | $11808.62 |
STM32H743ZIT6 is based on the high-performance Arm ® Cortex®-M7 32-bit RISC core operating at up to 480 MHz. The Cortex® -M7 core features a floating-point unit (FPU) which supports Arm® double-precision (IEEE 754 compliant) and single-precision data-processing instructions and data types. STM32H743ZIT6 supports a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.
STM32H743ZIT6 incorporates high-speed embedded memories with a dual-bank Flash memory of up to 2 Mbytes, up to 1 Mbyte of RAM (including 192 Kbytes of TCM RAM, up to 864 Kbytes of user SRAM, and 4 Kbytes of backup SRAM), as well as an extensive range of enhanced I/Os and peripherals connected to APB buses, AHB buses, 2x32-bit multi-AHB bus matrix, and a multi-layer AXI interconnects supporting internal and external memory access.
All the devices offer three ADCs, two DACs, two ultra-low-power comparators, a low-power RTC, a high-resolution timer, 12 general-purpose 16-bit timers, two PWM timers for motor control, five low-power timers, a true random number generator (RNG). The devices support four digital filters for external sigma-delta modulators (DFSDM). They also feature standard and advanced communication interfaces.

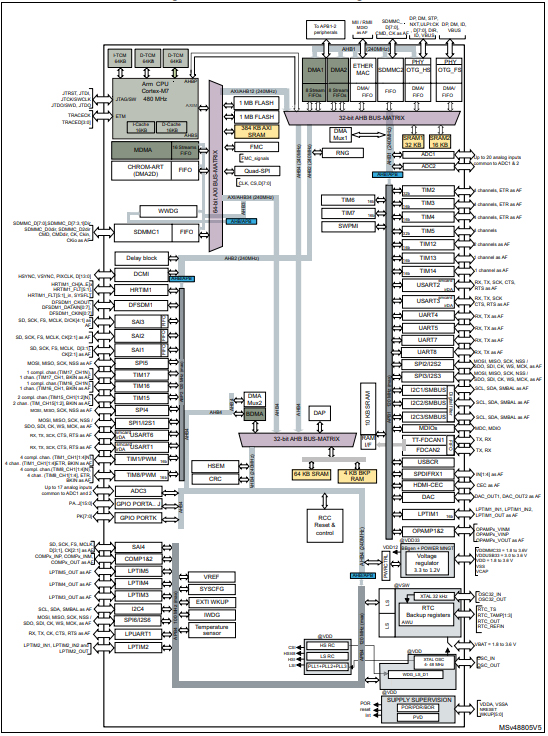

STM32H743ZIT6 Block diagram
STM32H743ZIT6 Symbol

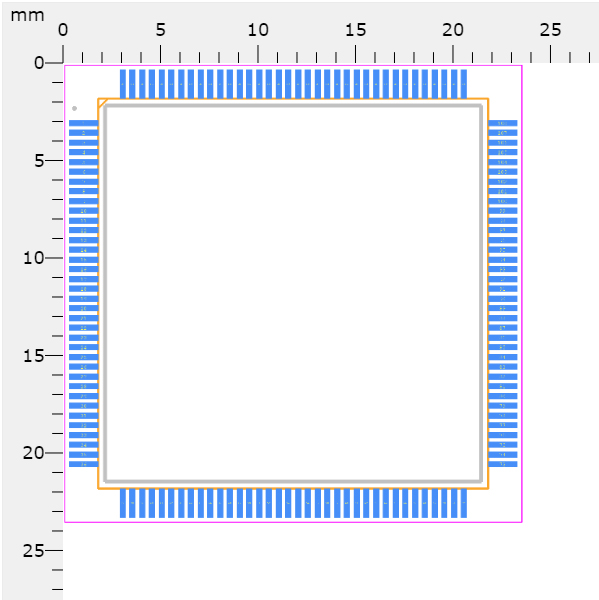

STM32H743ZIT6 Footprint

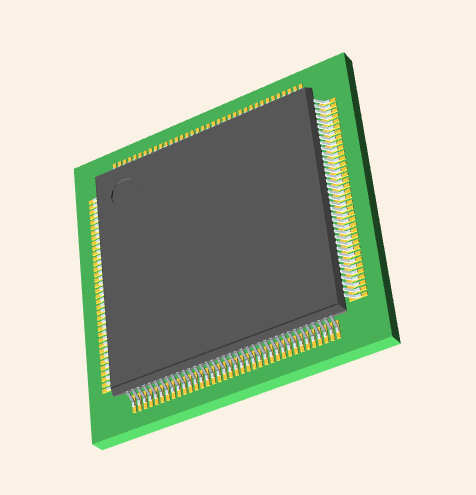

STM32H743ZIT6 3D Model
STMicroelectronics STM32H743ZIT6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32H743ZIT6.
STMicroelectronics STM32H743ZIT6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32H743ZIT6.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) | |
| Factory Lead Time | 12 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 144-LQFP | |
| Surface Mount | YES | |
| Manufacturer Package Identifier | LQFP144-1A | |
| Data Converters | A/D 20x16b; D/A 2x12b | |
| Number of I/Os | 114I/Os | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tray | |
| Series | STM32H7 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 144Terminations | |
| Terminal Position | QUAD | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Product Attribute | Attribute Value | |
|---|---|---|
| Supply Voltage | 3V | |
| Terminal Pitch | 0.5mm | |
| Frequency | 400MHz | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | STM32H743 | |
| Supply Voltage-Min (Vsup) | 1.8V | |
| Interface | CAN, EBI/EMI, I2C, IrDA, LIN, SPI, UART, USART, USB | |
| Memory Size | 2MB | |
| Oscillator Type | Internal | |
| RAM Size | 1M x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.62V~3.6V | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC | |
| Core Processor | ARM® Cortex®-M7 | |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | |
| Program Memory Type | FLASH | |
| Core Size | 32-Bit | |
| Program Memory Size | 2MB 2M x 8 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG | |
| Bit Size | 32 | |
| Has ADC | YES | |
| DMA Channels | YES | |
| Data Bus Width | 32b | |
| PWM Channels | YES | |
| Number of Timers/Counters | 22Timers/Counters | |
| Address Bus Width | 26 | |
| Number of A/D Converters | 2A/D Converters | |
| Number of ADC Channels | 36ADC Channels | |
| Max Junction Temperature (Tj) | 125°C | |
| Number of I2C Channels | 4I2C Channels | |
| Ambient Temperature Range High | 85°C | |
| Number of SPI Channels | 6SPI Channels | |
| Height | 1.6mm | |
| RoHS Status | ROHS3 Compliant |

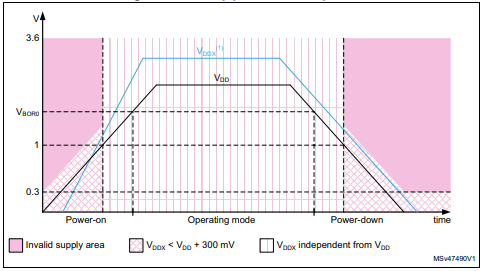

STM32H743ZIT6 Power-up/power-down sequence
STM32H743ZIT6 Timer feature comparison

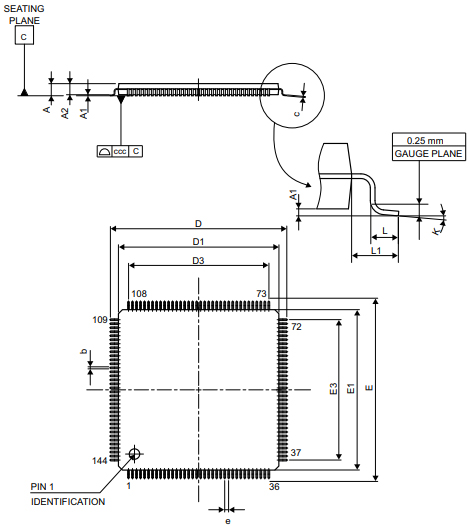

STM32H743ZIT6 Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance.
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics STM32H743ZIT6.
Download datasheets and manufacturer documentation for STM32H743ZIT6
