PMIC - Supervisors 12-WFDFN 2V 0.5mm -40°C~85°C TA STM6601 Smart Reset™ IC SUPERVISOR 3.1V 12TDFN
The STM6601 device monitors the state of connected push-button(s) as well as sufficient supply voltage. This article will unlock its pinout, datasheet, circuit and more about STM6601. Welcome your RFQ!
STM6601CM2DDM6F
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $4.35533 | $4.36 |
| 10+ | $4.1088 | $41.09 |
| 100+ | $3.87623 | $387.62 |
| 500+ | $3.65682 | $1828.41 |
| 1000+ | $3.44983 | $3449.83 |
STM6601 Symbol
STM6601 Footprint
STM6601 3D Model
• Operating voltage 1.6 V to 5.5 V
• Low standby current of 0.6 µA
• Adjustable Smart Reset™ assertion delay time driven by external CSRD
• Power-up duration determined primarily by the push-button press (STM6600) or by fixed time period, tON_BLANK (STM6601)
• Debounced PB and SR inputs
• PB and SR ESD inputs withstand voltage up to ±15 kV (air discharge) ±8 kV (contact discharge)
• Active high or active low enable output option (EN or EN) provides control of MOSFET, DC-DC converter, regulator, etc.
• Secure startup, interrupt, Smart Reset™ or power-down is driven by push-button
• Precise 1.5 V voltage reference with 1% accuracy
• Industrial operating temperature –40 to +85 °C
• Available in TDFN12 2 x 3 mm package
• Portable devices
• Terminals
• Audio and video players
• Cell phones and smartphones
• PDAs, palmtops, organizer
The STM6601 application circuit is shown below:

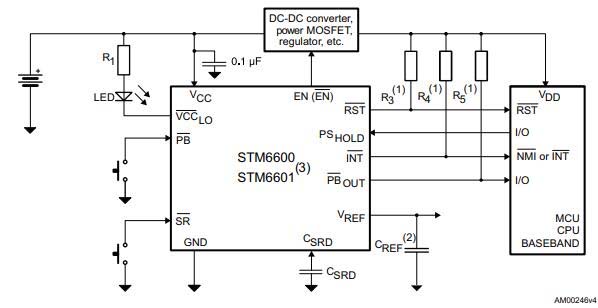

STM6601 Application Circuit

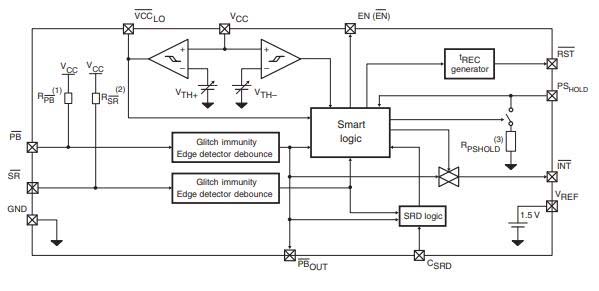

The following circuit shows the block diagram of STM6601:
STM6601 Block Diagram
The STM6600-STM6601 simplified smart push-button on/off controller with Smart Reset™ and power-on lockout enables and disables power for the application depending on pushbutton states, signals from the processor, and battery voltage.
STMicroelectronics STM6601CM2DDM6F technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM6601CM2DDM6F.
STMicroelectronics STM6601CM2DDM6F technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM6601CM2DDM6F.

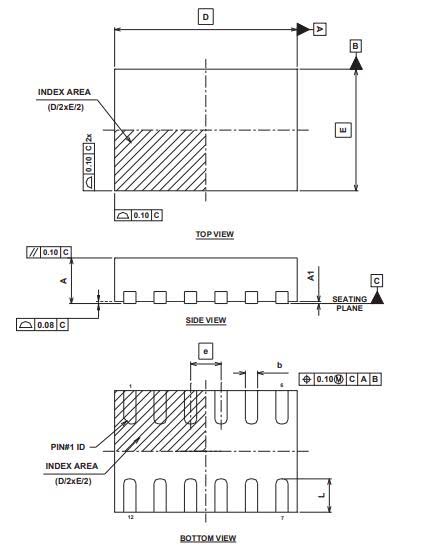

| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 12-WFDFN | |
| Number of Pins | 12Pins | |
| Watchdog Timers | No | |
| Usage Level | Industrial grade | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| Series | Smart Reset™ | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 12Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Type | Smart ON/OFF Controller | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 2V | |
| Terminal Pitch | 0.5mm | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | STM6601 | |
| Output | Open Drain or Open Collector | |
| Pin Count | 12 | |
| Number of Channels | 1Channel | |
| Max Supply Voltage | 5.5V | |
| Min Supply Voltage | 1.65V | |
| Operating Supply Current | 6μA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Adjustable Threshold | NO | |
| Reset | Active Low | |
| Voltage - Threshold | 3.1V | |
| Number of Voltages Monitored | 1 | |
| Reset Timeout | 240ms Minimum | |
| Supply Current-Max (Isup) | 0.008mA | |
| Undervoltage Threshold | 3V | |
| Overvoltage Threshold | 3.2V | |
| Height | 730μm | |
| Length | 3mm | |
| Width | 2mm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivalled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STM6601CM2DDM6F
