Core
16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
Extended instruction set
Memories
Program memory: 8 Kbytes Flash; data retention 20 years at 55 °C after 10 kcycles
Data memory: 640 bytes true data EEPROM; endurance 300 kcycles
RAM: 1 Kbytes
Clock, reset, and supply management
2.95 to 5.5 V operating voltage
Flexible clock control, 4 master clock sources low power crystal resonator oscillatorExternal clock inputInternal, user-trimmable 16 MHz RCInternal low-power 128 kHz RC
Clock security system with clock monitor
Power management: Low-power modes (wait, active-halt, halt)Switch-off peripheral clocks individually
Permanently active, low consumption power-on and power-down reset
Interrupt management
Nested interrupt controller with 32 interrupts
Up to 27 external interrupts on 6 vectors
Timers
Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion, and flexible synchronization
16-bit general-purpose timer, with 3 CAPCOM channels (IC, OC, or PWM)
8-bit basic timer with 8-bit Prescaler
Auto wake-up timer
Window watchdog and independent watchdog timers
Communication interfaces
UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
SPI interface up to 8 Mbit/s
I2C interface up to 400 kbit/s
Analog to digital converter (ADC)
10-bit, ±1 LSB ADC with up to 5 multiplexed channels, scan mode, and analog watchdog
I/Os

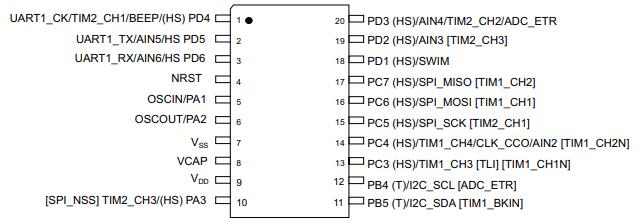

Up to 28 I/O s on a 32-pin package including 21 high sink outputs
Highly robust I/O design, immune against current injection
Unique ID
96-bit unique key for each device
