Data Acquisition - Touch Screen Controllers 16-VFQFN Exposed Pad 1.8V~3.3V -40°C~85°C STMPE811 S-Touch™ 0.5mm Resistive Touch Screen 4-Wire 16-Pin QFN EP Tape and Reel
STMPE811QTR is a 32-bit ARM® Cortex®-M4 series Microcontroller. This article will go into more detail about STMPE811QTR, including pinout, CAD model, block diagram, features, and so on.
STMPE811QTR
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.7189 | $2.72 |
| 10+ | $2.565 | $25.65 |
| 100+ | $2.41981 | $241.98 |
| 500+ | $2.28284 | $1141.42 |
| 1000+ | $2.15362 | $2153.62 |

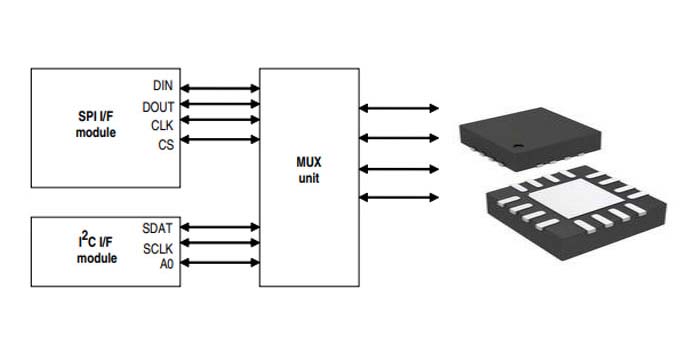

The STMPE811QTR is a GPIO (general purpose input/output) port expander able to interface a main digital ASIC via the two-line bidirectional bus (I2C). A separate GPIO expander is often used in mobile multimedia platforms to solve the problems of the limited amount of GPIOs typically available on the digital engine.
The STMPE811QTR offers great flexibility, as each I/O can be configured as input, output, or specific functions. The device has been designed with a very low quiescent current and includes a wakeup feature for each I/O, to optimize the power consumption of the device.

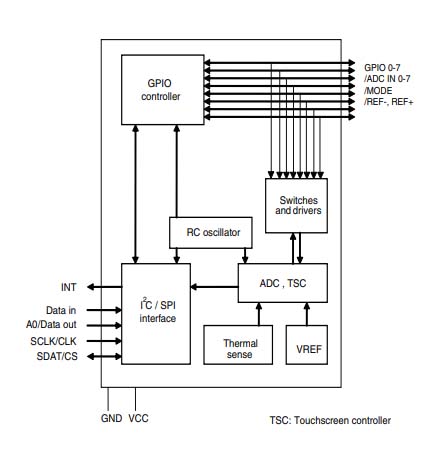

A 4-wire touchscreen controller is built into the STMPE811QTR The touchscreen controller is enhanced with a movement tracking algorithm (to avoid excessive data), a 128 x 32-bit buffer, and a programmable active window feature.

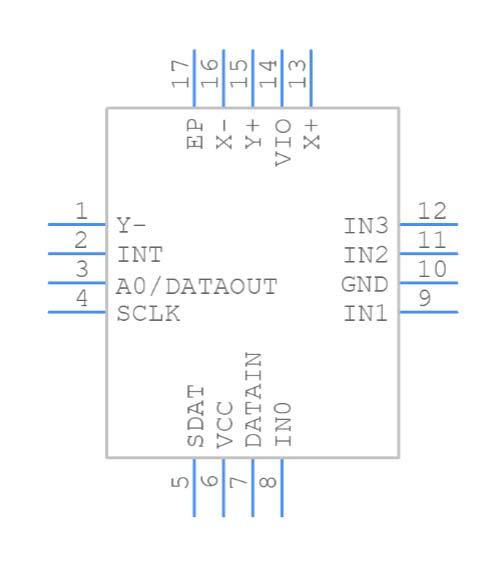

STMPE811QTR Symbol

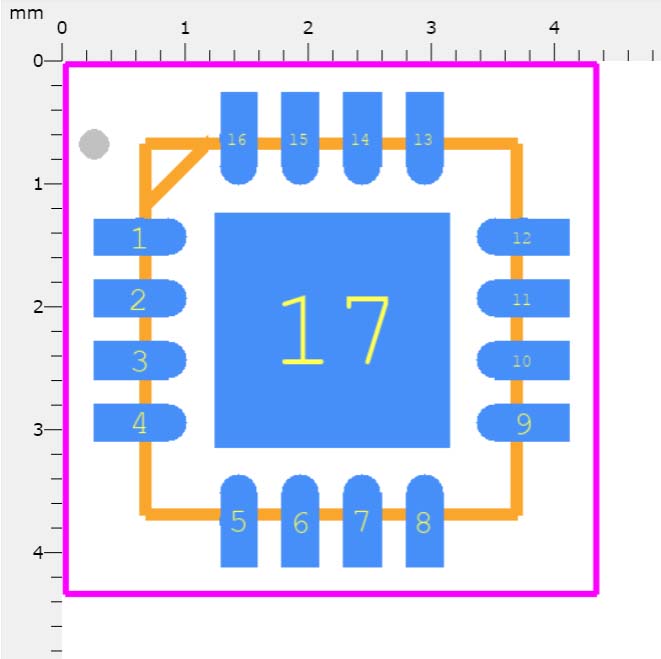

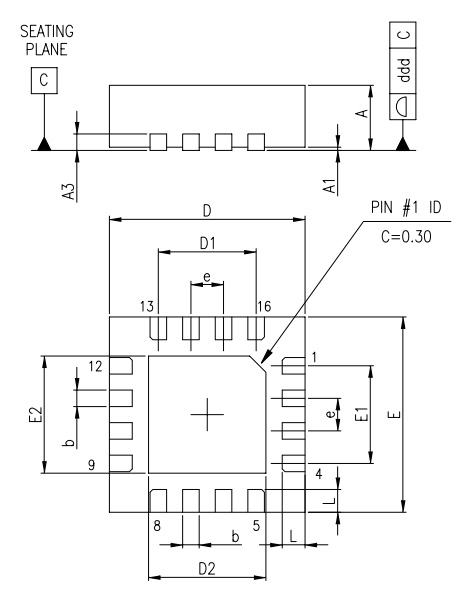

STMPE811QTR Footprint
STMPE811QTR 3D Model
STMicroelectronics STMPE811QTR technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STMPE811QTR.
STMicroelectronics STMPE811QTR technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STMPE811QTR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 14 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-VFQFN Exposed Pad | |
| Weight | 57.09594mg | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tape & Reel (TR) | |
| Series | S-Touch™ | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| HTS Code | 8542.39.00.01 | |
| Voltage - Supply | 1.8V~3.3V | |
| Terminal Position | QUAD | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Terminal Pitch | 0.5mm | |
| Base Part Number | STMPE811 | |
| Pin Count | 16 | |
| JESD-30 Code | S-XQCC-N16 | |
| Operating Supply Voltage | 3.6V | |
| Power Supplies | 1.8/3.3V | |
| Supply Voltage-Min (Vsup) | 1.65V | |
| Interface | I2C, SPI | |
| Operating Supply Current | 500nA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Nominal Supply Current | 2.8mA | |
| Output Current | 2mA | |
| Max Frequency | 6.5MHz | |
| Consumer IC Type | CONSUMER CIRCUIT | |
| Resolution (Bits) | 12 b | |
| Touchscreen | 4 Wire Resistive | |
| Voltage Reference | Internal | |
| Length | 3mm | |
| Height Seated (Max) | 1mm | |
| Width | 3mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
■ 8 GPIOs
■ 1.8 - 3.3 V operating voltage
■ Integrated 4-wire touchscreen controller
■ Interrupt output pin
■ Wakeup feature on each I/O
■ SPI and I2C interface
■ Up to 2 devices sharing the same bus in
12C mode (1 address line)
■ 8-input 12-bit ADC
■ 128-depth buffer touchscreen controller
■ Touchscreen movement detection algorithm
■ 25 kV air-gap ESD protection (system level)
■ 4 kV HBM ESD protection (device level)
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STMPE811QTR
