TO-220AB MOSFET RoHS
STP30NF10 from STMicroelectronics is an N-Channel MOSFET. This passage is going to introduce STP30NF10 from the perspectives of description, 3d models, and datasheet.
STP30NF10:datasheet, pinout, package, and FAQ
TO-220AB MOSFET RoHS STP30NF10 from STMicroelectronics is an N-Channel MOSFET. This passage is going to introduce STP30NF10 from the perspectives of description, 3d models, and datasheet.
81
Feb 10, 2022
Les Anna
STP30NF10
Inquiry
Min.: 1 Mult.: 1
Quick Links

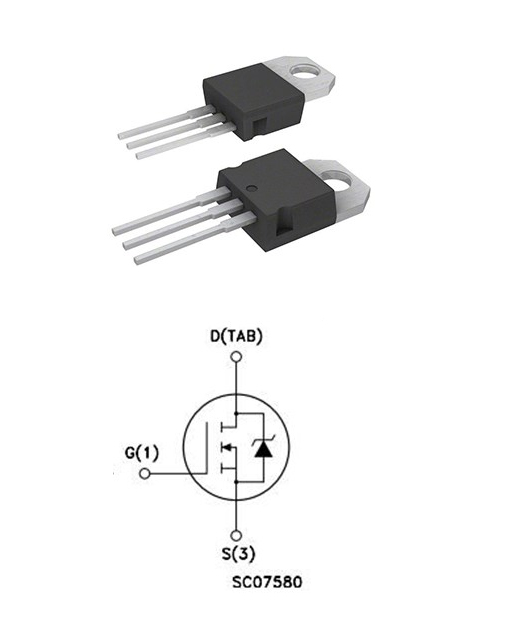

STP30NF10 Description
STP30NF10, manufactured by STMicroelectronics and distributed by Utmel Electronics. Its category belongs to Electronic Components ICs.
It is applied to many fields, like Automotive Infotainment & cluster Communications equipment Datacom module Personal electronics Connected peripherals & printers.
And the main parameters of this part are MOSFET, N TO-220; Transistor Polarity: N Channel; Continuous Drain Current Id:35A; Drain Source Voltage Vds:100V; On Resistance Rds(on):0.038ohm; Rds. Additionally, it is green and compliant to RoHS (Lead-free / RoHS Compliant). This Power MOSFET is the latest development of STMicroelectronic's unique "Single Feature Size™" strip-based process. The resulting transistor shows extremely high packing density for low resistance, rugged avalanche characteristics, and less critical alignment steps therefore a remarkable manufacturing reproducibility.
STP30NF10 Key Features
Exceptional DV/DT capability
100% avalanche tested
Application-oriented characterization
STP30NF10 CAD Models
Symbol
Footprint

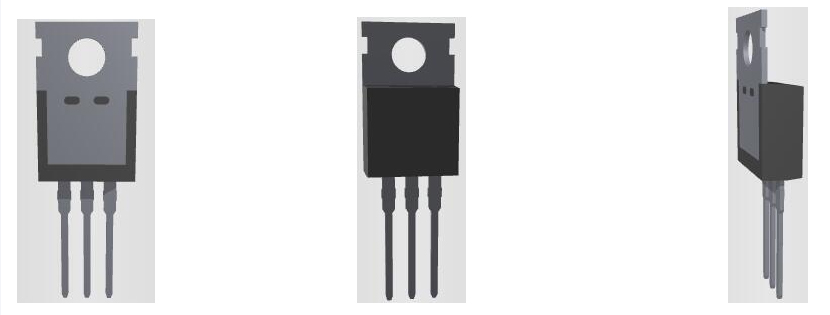

3D Models
STP30NF10 Manufacturer
STMicroelectronics is a global independent semiconductor company that is a market leader in developing and delivering semiconductor solutions for a wide range of microelectronics applications. STMicroelectronics is at the forefront of System-on-Chip (SoC) technology, with an unrivaled combination of silicon and system expertise, manufacturing strength, an IP portfolio, and strategic partner positions. Its products play a key role in enabling today's convergence trends. STMicroelectronics (also known as ST) is a global leader in providing semiconductor solutions that help improve people's lives. Offering one of the industry's broadest product portfolios, ST serves customers across the spectrum of electronics applications with innovative semiconductor solutions for Smart Driving and the Internet of Things.
STP30NF10 Applications
1. Automotive:
Advanced driver assistance systems (ADAS)/Body electronics & lighting/Hybrid, electric & powertrain systems/Infotainment & cluster
2.Communications equipment
Broadband fixed-line access/Datacom module/Wired networking/Wireless infrastructure
3. Personal electronics
Connected peripherals & printers/Data storage/Gaming/Home theater & entertainment/Mobile phones/PC & notebooks/Portable electronics/Tablets/TV/Wearables (non-medical)
STP30NF10 Alternatives
| Part No. | Manufacturers |
| PSMN9R5-100PS,127 | Nexperia USA Inc. |
| PSMN015-100P,127 | Nexperia USA Inc. |
| IRF530NPBF | Infineon Technologies |
| IRF1310NPBF | Infineon Technologies |
| IRF540ZPBF | Infineon Technologies |
STP30NF10 package
TO-220
Specifications
VBsemi Elec STP30NF10 technical specifications, attributes, parameters and parts with similar specifications to VBsemi Elec STP30NF10.
STP30NF10 Tech Specifications
STP30NF10 Tech Specifications
VBsemi Elec STP30NF10 technical specifications, attributes, parameters and parts with similar specifications to VBsemi Elec STP30NF10.
| Product Attribute | Attribute Value | |
|---|---|---|
| Package / Case | TO-220AB |
| Product Attribute | Attribute Value | |
|---|---|---|
| Packaging | Tube-packed |
| Product Attribute | Attribute Value | |
|---|---|---|
| RoHS Status | RoHS Compliant |
Frequently Asked Questions
What is STP30NF10?
The STP30NF10 is a 100V N-channel Power MOSFET developed using a unique "single feature size"™ strip-based process.
Can STP30NF10 be operated in the temperature of 100℃？
Yes, it is suitable for -55-175℃.
What kind of package does STP30NF10 use?
TO-220.
Where can you find STP30NF10 in our daily life?
It can be found in our daily life in many places, such as TV, PC, Mobile phone, printer, and so on.
Where is STP30NF10 from?
STP30NF10 is made by STMicroelectronics.
FAQ
What is STP30NF10?
The STP30NF10 is a 100V N-channel Power MOSFET developed using a unique "single feature size"™ strip-based process.
Can STP30NF10 be operated in the temperature of 100℃？
Yes, it is suitable for -55-175℃.
What kind of package does STP30NF10 use?
TO-220.
Where can you find STP30NF10 in our daily life?
It can be found in our daily life in many places, such as TV, PC, Mobile phone, printer, and so on.
Where is STP30NF10 from?
STP30NF10 is made by STMicroelectronics.
