MOSFET N-CH 600V 7A TO-220FP STP9NK60ZFP is a Power MOSFET with N-channel 600 V, 0.85 Ω typ, and 7 A Zener-protected Super MESH? in the TO-220 package.
66
Sep 4, 2021
Toby Jennings
MOSFET N-CH 600V 7A TO-220FP
STP9NK60ZFP is a Power MOSFET with N-channel 600 V, 0.85 Ω typ, and 7 A Zener-protected Super MESH™ in the TO-220 package. This article mainly covers the datasheet, pinout, applications, and more details about STP9NK60ZF.
STP9NK60ZFP
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.83522 | $1.84 |
| 10+ | $1.73134 | $17.31 |
| 100+ | $1.63334 | $163.33 |
| 500+ | $1.54089 | $770.45 |
| 1000+ | $1.45367 | $1453.67 |

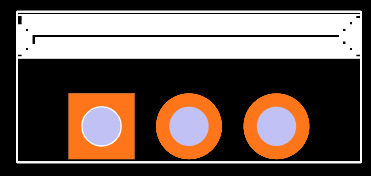

Footprint
The STP9NK60ZFP is N-channel Zener-protected Power MOSFET developed using STMicroelectronics' SuperMESH™ technology, achieved through optimization of ST's well-established strip-based PowerMESH™ layout. In addition to a significant reduction in on-resistance, this device is designed to ensure a high level of DV/DT capability for the most demanding applications.
STMicroelectronics STP9NK60ZFP technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STP9NK60ZFP.
STMicroelectronics STP9NK60ZFP technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STP9NK60ZFP.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 8 months ago) | |
| Factory Lead Time | 12 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 Full Pack | |
| Number of Pins | 3Pins | |
| Weight | 4.535924g | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 7A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 30W Tc | |
| Turn Off Delay Time | 43 ns | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Tube | |
| Series | SuperMESH™ | |
| JESD-609 Code | e3 | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Peak Reflow Temperature (Cel) | 245 | |
| Base Part Number | STP9N | |
| Pin Count | 3 | |
| Element Configuration | Single | |
| Operating Mode | ENHANCEMENT MODE | |
| Power Dissipation | 30W | |
| Case Connection | ISOLATED | |
| Turn On Delay Time | 19 ns | |
| FET Type | N-Channel | |
| Transistor Application | SWITCHING | |
| Rds On (Max) @ Id, Vgs | 950m Ω @ 3.5A, 10V | |
| Vgs(th) (Max) @ Id | 4.5V @ 100μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 1110pF @ 25V | |
| Gate Charge (Qg) (Max) @ Vgs | 53nC @ 10V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Rise Time | 17ns | |
| Vgs (Max) | ±30V | |
| Fall Time (Typ) | 15 ns | |
| Continuous Drain Current (ID) | 7A | |
| Threshold Voltage | 3.75V | |
| JEDEC-95 Code | TO-220AB | |
| Gate to Source Voltage (Vgs) | 30V | |
| Drain Current-Max (Abs) (ID) | 7A | |
| Drain-source On Resistance-Max | 0.95Ohm | |
| Drain to Source Breakdown Voltage | 600V | |
| Pulsed Drain Current-Max (IDM) | 28A | |
| Height | 16.4mm | |
| Length | 10.4mm | |
| Width | 4.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant |

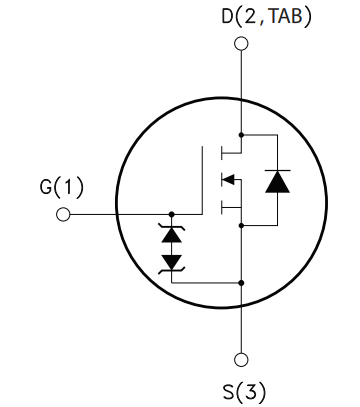

STP9NK60ZFP Internal Schematic Diagram
Extremely high DV/DT capability
Improved ESD capability
100% avalanche tested
Gate charge minimized
Very low intrinsic capacitances

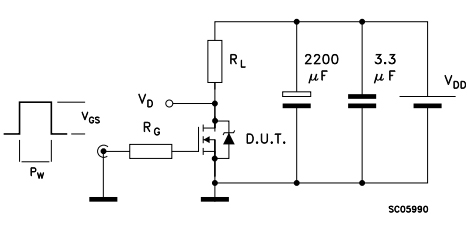

Test circuit for resistive load

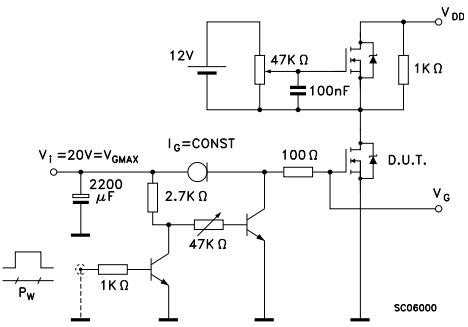

Gate charge test circuit

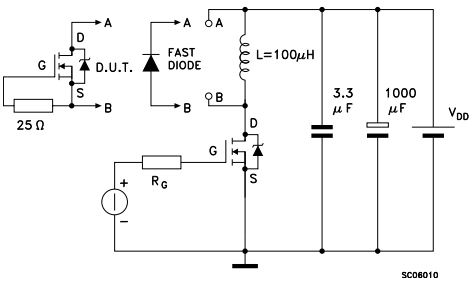

Test circuit for inductive load

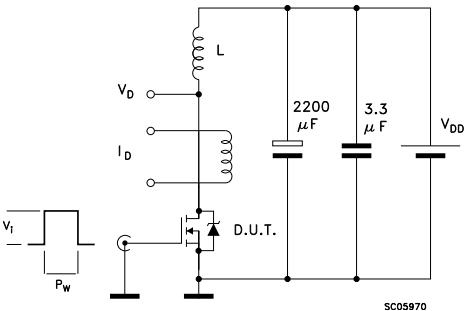

Unclamped Inductive load test circuit

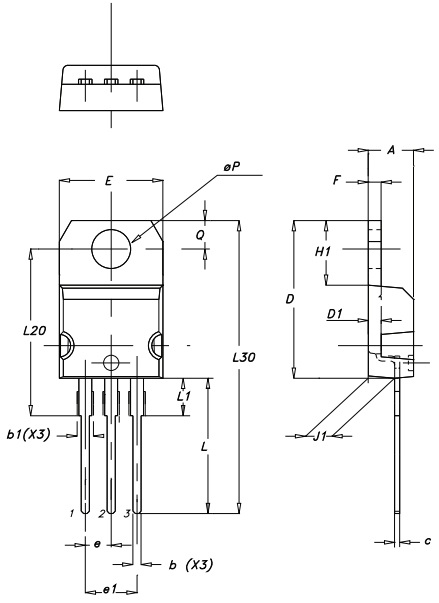

STMicroelectronics is a French-Italian multinational electronics and semiconductors manufacturer headquartered in Plan-les-Oates near Geneva, Switzerland. The company resulted from the merger of two government-owned semiconductor companies in 1987: "Thomson Semiconductors" of France and "SGS Microelettronica" of Italy. It is commonly called "ST", and it is Europe's largest semiconductor chip maker based on revenue. While STMicroelectronics corporate headquarters and the headquarters for the EMEA region are based in the Canton of Geneva, the holding company, STMicroelectronics N.V. is incorporated in the Netherlands.
Download datasheets and manufacturer documentation for STMicroelectronics STP9NK60ZFP.
Download datasheets and manufacturer documentation for STP9NK60ZFP
