DIODE ARRAY SCHOTTKY 45V TO220AB The STPS2045CT is a Power Schottky Rectifier that features very small conduction losses, negligible switching losses and extremely fast switching. This article mainly introduces circuit, pinout, datasheet and other detailed information about STMicroelectronics STPS2045CT.
4371
Sep 19, 2021
Warner Charley
DIODE ARRAY SCHOTTKY 45V TO220AB
The STPS2045CT is a Power Schottky Rectifier that features very small conduction losses, negligible switching losses and extremely fast switching. This article mainly introduces circuit, pinout, datasheet and other detailed information about STMicroelectronics STPS2045CT.
STPS2045CT
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.70475 | $0.7 |
| 10+ | $0.66486 | $6.65 |
| 100+ | $0.62723 | $62.72 |
| 500+ | $0.59173 | $295.87 |
| 1000+ | $0.55823 | $558.23 |
The STPS2045CT is a Power Schottky Rectifier that features very small conduction losses, negligible switching losses and extremely fast switching. This dual center tap Schottky rectifier is suitable for high-frequency DC to DC converters. Packaged either in TO-220AB, TO-220FPAB, or D²PAK, this device is especially intended for use in low voltage, high-frequency inverters, free wheeling and polarity protection applications.
Symbol

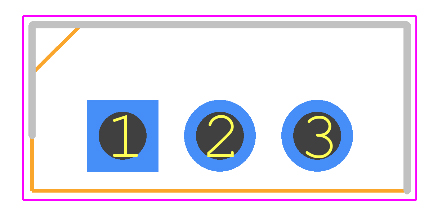

Footprint
3D Model
● Very Small Conduction Losses
● Negligible Switching Losses
● Extremely Fast Switching
● Insulated Package: TO-220FPAB
- Insulating Voltage = 2000 VRMS Sine
● Avalanche Rated
● ECOPACK®2 Compliant Component For D²PAK On Demand
STMicroelectronics STPS2045CT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STPS2045CT.
STMicroelectronics STPS2045CT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STPS2045CT.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 11 Weeks | |
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Contact Plating | Tin | |
| Package / Case | TO-220-3 | |
| Mounting Type | Through Hole | |
| Mount | Through Hole | |
| Number of Pins | 3Pins | |
| Weight | 4.535924g | |
| Diode Element Material | SILICON | |
| Number of Elements | 2 Elements | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Max Operating Temperature | 175°C | |
| Min Operating Temperature | -65°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Applications | POWER | |
| Additional Feature | FREE WHEELING DIODE | |
| HTS Code | 8541.10.00.80 | |
| Voltage - Rated DC | 45V | |
| Terminal Position | SINGLE | |
| Current Rating | 20A | |
| Base Part Number | STPS2045 | |
| Pin Count | 3 | |
| Element Configuration | Common Cathode | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Schottky | |
| Current - Reverse Leakage @ Vr | 100μA @ 45V | |
| Voltage - Forward (Vf) (Max) @ If | 570mV @ 10A | |
| Forward Current | 10A | |
| Max Reverse Leakage Current | 100μA | |
| Operating Temperature - Junction | 175°C Max | |
| Max Surge Current | 180A | |
| Forward Voltage | 570mV |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Reverse Voltage (DC) | 45V | |
| Average Rectified Current | 10A | |
| Number of Phases | 1Phase | |
| Peak Reverse Current | 100μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 45V | |
| JEDEC-95 Code | TO-220AB | |
| Peak Non-Repetitive Surge Current | 180A | |
| Diode Configuration | 1 Pair Common Cathode | |
| Max Forward Surge Current (Ifsm) | 180A | |
| Width | 4.6mm | |
| Length | 10.4mm | |
| Height | 9.15mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
| Part Number | Description | Manufacturer |
| MBR2045CT-005DIODES | Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 45V V(RRM), Silicon, TO-220AB, 3 PIN | Vishay Intertechnologies |
| MBR2045CT/45DIODES | Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 45V V(RRM), Silicon, TO-220AB | Vishay Semiconductors |
| MBR2045CT-018DIODES | Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 45V V(RRM), Silicon, TO-220AB, 3 PIN | International Rectifier |
| MBR2045CT-013DIODES | Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 45V V(RRM), Silicon, TO-220AB, 3 PIN | International Rectifier |
| MBR2045CT-009PBFDIODES | Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 45V V(RRM), Silicon, TO-220AB, 3 PIN | Vishay Intertechnologies |
| MBR2045CT-GDIODES | Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, Silicon, TO-220AB, GREEN, PLASTIC PACKAGE-3 | Sensitron Semiconductors |
| MBR2045CT-011DIODES | Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 45V V(RRM), Silicon, TO-220AB, 3 PIN | International Rectifier |
| 20CTQ035DIODES | Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 35V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3 | Microsemi Corporation |
| MBR2045CT-012PBFDIODES | Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 45V V(RRM), Silicon, TO-220AB, 3 PIN | Vishay Intertechnologies |
| BYV133-35DIODES | Rectifier Diode, Schottky, 18A, 35V V(RRM), | North American Philips Discrete Products Div |
● Power Management
● Industrial
● Low Voltage, High-Frequency Inverters
● Free Wheeling
● Polarity Protection Applications
STMicroelectronics is a globally recognized semiconductor company. They are committed to developing semiconductor solutions for various microelectronics applications. STMicroelectronics enjoys unparalleled silicon and system expertise, strong manufacturing capabilities, IP portfolio, and strong relationships with its strategic partners.
Based on these advantages, STMicroelectronics has become a pioneer in system-on-chip (SoC) technology, and its products have a positive effect on realizing today's convergence trend.
Download datasheets and manufacturer documentation for STMicroelectronics STPS2045CT.
Download datasheets and manufacturer documentation for STPS2045CT
