STPS20H100CT
Diodes - Rectifiers - Arrays DIODE ARRAY SCHOTTKY 100V TO220
STPS20H100CT is a 32-bit high-performance microcontroller based on the Arm® Cortex®-M4 processor with FPU and DSP functionality. This article will go into more details about STPS20H100CT, including pinout, CAD model, block diagram, features, and so on.
STPS20H100CT
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.01801 | $1.02 |
| 10+ | $0.96038 | $9.6 |
| 100+ | $0.90602 | $90.6 |
| 500+ | $0.85474 | $427.37 |
| 1000+ | $0.80636 | $806.36 |
Dual center tap Schottky rectifier designed for high-frequency miniature switch-mode power supplies such as adaptors and onboard DC-DC converters.

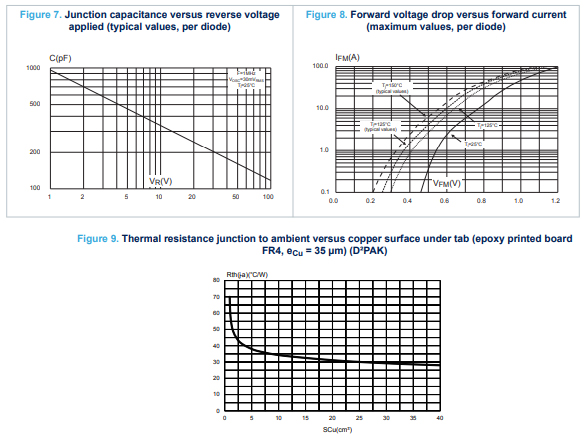

STPS20H100CT Characteristics (1)
STPS20H100CT Characteristics (2)

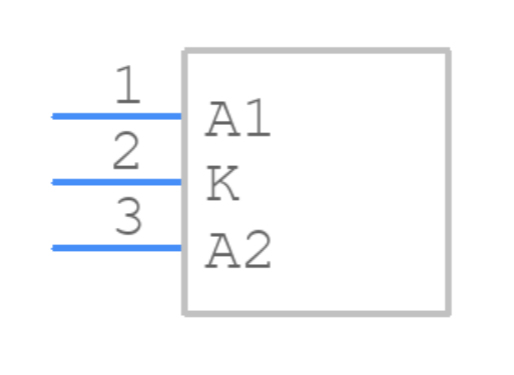

STPS20H100CT Symbol

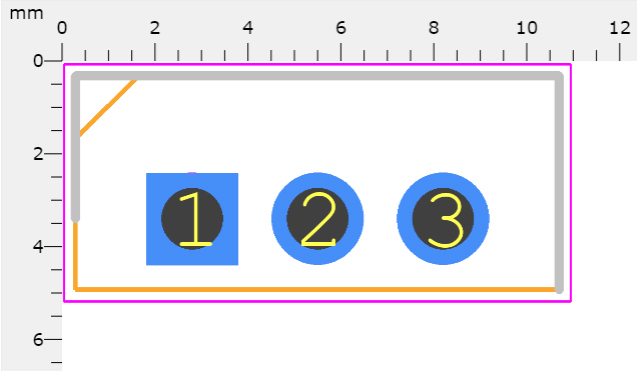

STPS20H100CT Footprint

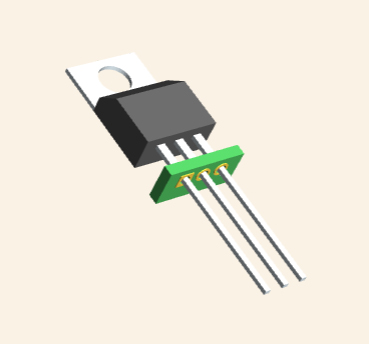

STPS20H100CT 3D Model
STMicroelectronics STPS20H100CT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STPS20H100CT.
STMicroelectronics STPS20H100CT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STPS20H100CT.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 months ago) | |
| Factory Lead Time | 11 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Weight | 4.535924g | |
| Diode Element Material | SILICON | |
| Number of Elements | 2 Elements | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Max Operating Temperature | 175°C | |
| Min Operating Temperature | -65°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Applications | HIGH VOLTAGE POWER | |
| Additional Feature | AVALANCHE RATED | |
| HTS Code | 8541.10.00.80 | |
| Voltage - Rated DC | 100V | |
| Terminal Position | SINGLE | |
| Current Rating | 20A | |
| Base Part Number | STPS20 | |
| Pin Count | 3 | |
| Element Configuration | Common Cathode | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Schottky | |
| Current - Reverse Leakage @ Vr | 4.5μA @ 100V | |
| Voltage - Forward (Vf) (Max) @ If | 770mV @ 10A | |
| Forward Current | 20A | |
| Max Reverse Leakage Current | 4.5μA | |
| Operating Temperature - Junction | 175°C Max | |
| Max Surge Current | 250A | |
| Forward Voltage | 880mV |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Reverse Voltage (DC) | 100V | |
| Average Rectified Current | 10A | |
| Number of Phases | 1Phase | |
| Peak Reverse Current | 4.5μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 100V | |
| JEDEC-95 Code | TO-220AB | |
| RMS Current (Irms) | 30A | |
| Peak Non-Repetitive Surge Current | 250A | |
| Diode Configuration | 1 Pair Common Cathode | |
| Max Forward Surge Current (Ifsm) | 250A | |
| Height | 9.15mm | |
| Length | 10.4mm | |
| Width | 4.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• Negligible switching losses
• High junction temperature capability
• Low leakage current
• Good trade-off between leakage current and forward voltage drop
• Avalanche rated
• Insulated package: TO-220FPAB
– Insulating voltage = 2000 VRMS sine

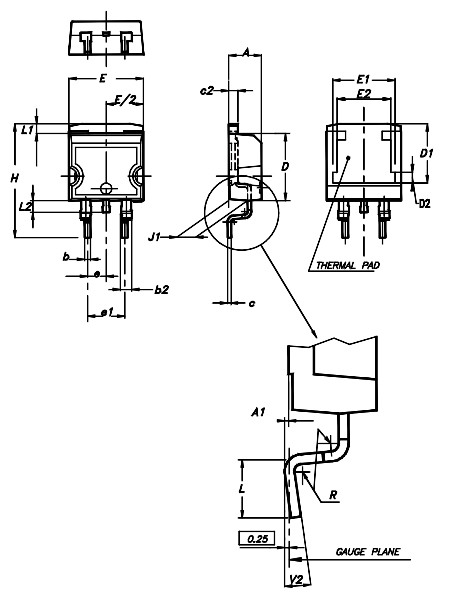

• ECOPACK®2 compliant component for D²PAK on demand
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STPS20H100CT
