SO-8 MOSFET RoHS
The STS4DNF60L is an N-channel STripFET™ Power MOSFET for switching applications. This passage is going to introduce STS4DNF60L in the perspectives of description, manufacturer, and package.
STS4DNF60L:datasheet, pinout and specifications
SO-8 MOSFET RoHS The STS4DNF60L is an N-channel STripFET? Power MOSFET for switching applications. This passage is going to introduce STS4DNF60L in the perspectives of description, manufacturer, and package.
128
Feb 10, 2022
Frank Bruce
STS4DNF60L
Inquiry
Min.: 1 Mult.: 1
Quick Links
STS4DNF60L Description
STS4DNF60L is an STMicroelectronics STS4DNF60L that is distributed by Utmel Electronics. It falls under the Electronic Components ICs category.
It is used in a variety of fields, including communications equipment. Enterprise systems with wireless infrastructure a business machine Electronics for personal use Electronics on the go.
The primary parameters of this part are as follows: N-Channel 60 V 0.055 O 15 NC Surface Mount Power Mosfet - SOIC-8 STripFET. It is also environmentally friendly and RoHS compliant (lead-free / RoHS compliant). This Power MOSFET is the latest development of STMicroelectronic's unique “single feature size”strip-based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalanche characteristics, and less critical alignment steps therefore a remarkable manufacturing reproducibility
STS4DNF60L Applications
1. Communications equipment
Broadband fixed line access/Datacom module/Wired networking/Wireless infrastructure
2.Enterprise systems
Data center & enterprise computing/Enterprise machine/Enterprise projectors
3.Personal electronics
Connected peripherals & printers/Data storage/Gaming/Home theater & entertainment/Mobile phones/PC & notebooks/Portable electronics/Tablets/TV/Wearables (non-medical)
STS4DNF60L CAD Models
Symbol

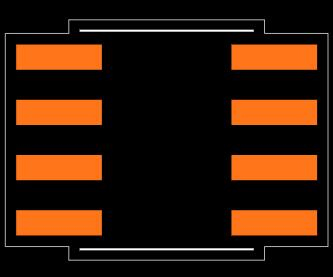

Footprint
3D Models
STS4DNF60L Manufacturer
STMicroelectronics is a global independent semiconductor company that is a market leader in developing and delivering semiconductor solutions for a wide range of microelectronics applications. STMicroelectronics is at the forefront of System-on-Chip (SoC) technology, with an unrivaled combination of silicon and system expertise, manufacturing strength, an IP portfolio, and strategic partner positions. Its products play a key role in enabling today's convergence trends.
STS4DNF60L Feature
■ Standard outline for easy automated surface mount assembly
■ Low threshold drive

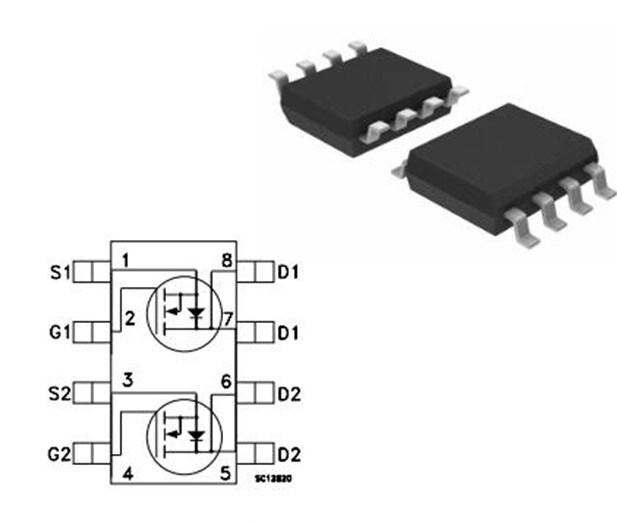

STS4DNF60L Functional Block Diagram

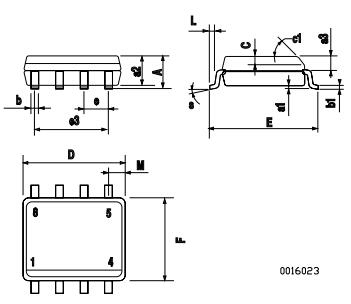

STS4DNF60L Package
Specifications
STS4DNF60L Tech Specifications
STS4DNF60L Tech Specifications
VBsemi Elec STS4DNF60L technical specifications, attributes, parameters and parts with similar specifications to VBsemi Elec STS4DNF60L.
| Product Attribute | Attribute Value | |
|---|---|---|
| Package / Case | SO-8 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Packaging | Tape & Reel (TR) |
| Product Attribute | Attribute Value | |
|---|---|---|
| RoHS Status | RoHS Compliant |
Frequently Asked Questions
What is STS4DNF60L？
It is an N-channel STripFET™ Power MOSFET for switching applications.
Can STS4DNF60L be operated in 100℃?
Yes, it can be operated between -55℃ and 150℃.
Where is STS4DNF60L made from?
It comes from STMicroelectronics.
What kind of package does STS4DNF60L use?
SOIC8
Where can we find STS4DNF60L in our daily life?
It can be found in our daily life in many places, such as TV, tablets, Mobile phones, PC, and so on.
FAQ
What is STS4DNF60L？
It is an N-channel STripFET™ Power MOSFET for switching applications.
Can STS4DNF60L be operated in 100℃?
Yes, it can be operated between -55℃ and 150℃.
Where is STS4DNF60L made from?
It comes from STMicroelectronics.
What kind of package does STS4DNF60L use?
SOIC8
Where can we find STS4DNF60L in our daily life?
It can be found in our daily life in many places, such as TV, tablets, Mobile phones, PC, and so on.
