Diode Ultra Fast Recovery Rectifier 300V 60A 3-Pin (3+Tab) TO-247 Tube STTH6003CW is intended for use in low voltage, high-frequency inverters, free wheeling operation, welding equipment, and telecom power supplies.
92
Feb 4, 2022
Arno Jennings
MUA Dual DIODE STTH60P03SW STTH6003CW 300V 60A TO-247 tháo máy
Diode Ultra Fast Recovery Rectifier 300V 60A 3-Pin (3 Tab) TO-247 Tube
STTH6003CW is intended for use in low voltage, high-frequency inverters, free wheeling operation, welding equipment, and telecom power supplies. This article will introduce more details about STTH6003CW, including Description, Device summary, CAD model, Features, Absolute ratings, Characteristics (curves), Package information, and so on.
STTH6003CW
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.87808 | $2.88 |
| 10+ | $2.71517 | $27.15 |
| 100+ | $2.56148 | $256.15 |
| 500+ | $2.41649 | $1208.25 |
| 1000+ | $2.27971 | $2279.71 |
Dual rectifier suited for switch mode power supply and high-frequency DC to DC converters. Packaged in TO-247, STTH6003CW is intended for use in low voltage, high-frequency inverters, free wheeling operation, welding equipment, and telecom power supplies.
STTH6003CW Device summary

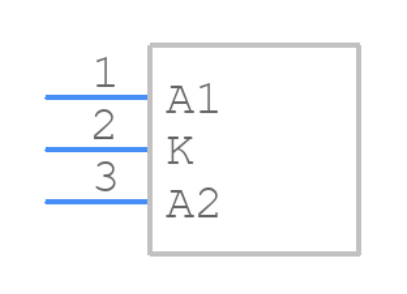

STTH6003CW Symbol
STTH6003CW Footprint
STTH6003CW 3D Model
● Combines highest recovery and voltage
performance
● Ultrafast, soft, and noise-free recovery
● Low inductance and low capacitance allow
simplified layout
STTH6003CW Absolute ratings
STMicroelectronics STTH6003CW technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STTH6003CW.
STMicroelectronics STTH6003CW technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STTH6003CW.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 11 Weeks | |
| Mount | Radial, Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-247-3 | |
| Number of Pins | 3Pins | |
| Supplier Device Package | TO-247-3 | |
| Packaging | Tube | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -40°C | |
| Voltage - Rated DC | 300V | |
| Current Rating | 60A | |
| Base Part Number | STTH6003 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Element Configuration | Common Cathode | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 60μA @ 300V | |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 30A | |
| Forward Current | 60A | |
| Operating Temperature - Junction | 175°C Max | |
| Max Surge Current | 300A | |
| Voltage - DC Reverse (Vr) (Max) | 300V | |
| Current - Average Rectified (Io) | 30A | |
| Forward Voltage | 1V | |
| Max Reverse Voltage (DC) | 300V | |
| Average Rectified Current | 30A | |
| Reverse Recovery Time | 55 ns | |
| Peak Reverse Current | 60μA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Repetitive Reverse Voltage (Vrrm) | 300V | |
| Peak Non-Repetitive Surge Current | 300A | |
| Reverse Voltage | 300V | |
| Diode Configuration | 1 Pair Common Cathode | |
| Max Forward Surge Current (Ifsm) | 300A | |
| Recovery Time | 55 ns | |
| Height | 20.15mm | |
| Length | 15.75mm | |
| Width | 5.15mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |

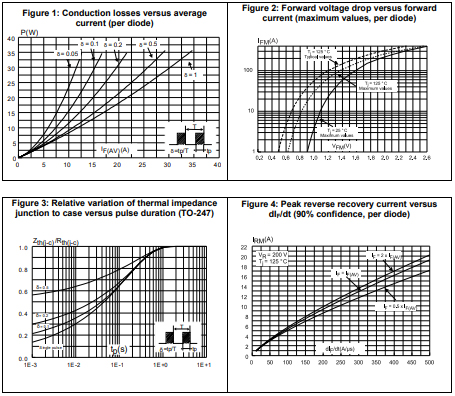

In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK ® packages, depending on their level of environmental compliance.
● Epoxy meets UL94, V0
● Cooling method: by conduction (C)
● Recommended torque values: 0.55 N·m
● Maximum torque value: 1.0 N·m
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
