TRIAC ALTERNISTOR 600V 20A D2PAK
The T2050H-6G is a 20 A - 600 V Triac from H-series. This article covers its pinout, datasheet, features and more detailed information of T2050H-6G.
T2050H-6G Triac: Datasheet, Pinout, Features
TRIAC ALTERNISTOR 600V 20A D2PAK The T2050H-6G is a 20 A - 600 V Triac from H-series.
83
Aug 5, 2021
Ronit
T2050H-6G
1242In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.26778 | $2.27 |
| 10+ | $2.13942 | $21.39 |
| 100+ | $2.01832 | $201.83 |
| 500+ | $1.90407 | $952.04 |
| 1000+ | $1.7963 | $1796.3 |
Unit Price:$2.26778
Subtotal: $2.27
Quick Links

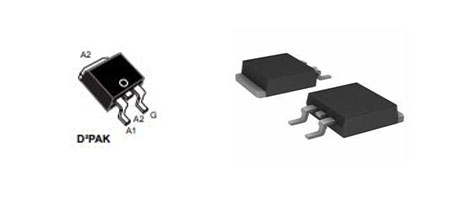

T2050H-6G Pinout
T2050H-6G CAD Model
Symbol
Footprint

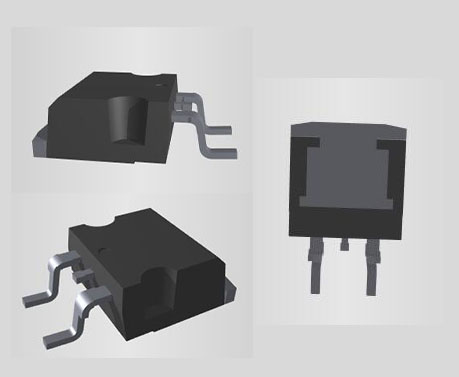

3D Model
T2050H-6G Description
The T2050H-6G is a 20 A - 600 V Triac from H-series, which is available in through-hole or surface-mount packages and is suitable for general purpose mains power ac switching.
T2050H-6G Features
• Medium current Triac
• 150 °C max. Tj turn-off commutation
• Low thermal resistance with clip bonding
• Very high 3 quadrant commutation capabilities
• Packages are RoHS (2002/95/EC) compliant
• UL certified (ref. file E81734)
Specifications
STMicroelectronics T2050H-6G technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics T2050H-6G.
T2050H-6G Tech Specifications
T2050H-6G Tech Specifications
STMicroelectronics T2050H-6G technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics T2050H-6G.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 15 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-263-3, D2Pak (2 Leads + Tab), TO-263AB | |
| Surface Mount | YES | |
| Manufacturer Package Identifier | D2Pak | |
| Number of Elements | 1 Element | |
| Voltage-Off State | 600V | |
| Operating Temperature | -40°C~150°C TJ | |
| Packaging | Tube | |
| Series | Snubberless™ | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| HTS Code | 8541.30.00.80 | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Reach Compliance Code | not_compliant | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | T2050 | |
| Pin Count | 3 | |
| JESD-30 Code | R-PSSO-G2 | |
| Qualification Status | Not Qualified | |
| Configuration | Single | |
| Case Connection | MAIN TERMINAL 2 | |
| Forward Voltage | 1.5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Hold Current | 75mA | |
| Trigger Device Type | SNUBBERLESS TRIAC | |
| Voltage - Gate Trigger (Vgt) (Max) | 1V | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 200A 210A | |
| Current - Gate Trigger (Igt) (Max) | 50mA | |
| Current - On State (It (RMS)) (Max) | 20A | |
| Max Junction Temperature (Tj) | 150°C | |
| Repetitive Peak Off-state Voltage | 600V | |
| Critical Rate of Rise of Off-State Voltage-Min | 1500V/us | |
| Triac Type | Alternistor - Snubberless | |
| Height | 4.83mm | |
| RoHS Status | Non-RoHS Compliant |
T2050H-6G Application
The T2050H-6G is designed to operate in high power density or universal motor applications such as vacuum cleaner and washing machine drum motors.
Advantage of T2050H-6G
The T2050H-6G provides a very high switching capability up to junction temperatures of 150 °C, and the heatsink can be reduced, compared to traditional Triacs, according to the high performance at given junction temperatures.

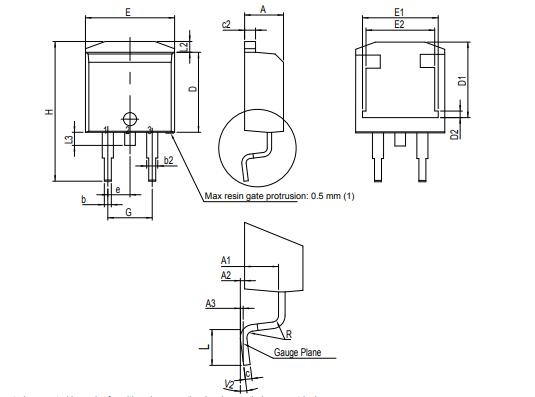

T2050H-6G Package
T2050H-6G Manufacturer
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications.
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics T2050H-6G.
T2050H-6G Documents
T2050H-6G Documents
Download datasheets and manufacturer documentation for T2050H-6G
Frequently Asked Questions
What kind of model does h-series have?
T2035H-6I, T2035H-6T, T2035H-6G T2050H-6I, T2050H-6T, T2050H-6G.
What package is T2050H-6G available in?
Through-hole or surface-mount packages.
What does T2050H-6G design for?
It is designed to operate in high power density or universal motor applications such as vacuum cleaners and washing machine drum motors.
FAQ
What kind of model does h-series have?
T2035H-6I, T2035H-6T, T2035H-6G T2050H-6I, T2050H-6T, T2050H-6G.
What package is T2050H-6G available in?
Through-hole or surface-mount packages.
What does T2050H-6G design for?
It is designed to operate in high power density or universal motor applications such as vacuum cleaners and washing machine drum motors.
