CAP TANT 3.3UF 35V 20% 2312 T491C335M035AT is really a magical and incredible component that you have to know.The standard packaging of these devices is Tape & Reel in accordance with EIA 481. This system provides perfect compatibility with all tape-fed placement units.
30
Sep 11, 2021
Lilith Sandy
CAP TANT 3.3UF 35V 20% 2312
T491C335M035AT is really a magical and incredible component that you have to know.The standard packaging of these devices is Tape & Reel in accordance with EIA 481. This system provides perfect compatibility with all tape-fed placement units.
T491C335M035AT
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.64782 | $0.65 |
| 10+ | $0.61115 | $6.11 |
| 100+ | $0.57656 | $57.66 |
| 500+ | $0.54392 | $271.96 |
| 1000+ | $0.51313 | $513.13 |
The KEMET T491 is the leading choice for surface mount designs，designing specifically for today’s highly automated surface mount processes and equipment, . The T491 combines KEMET’s proven solid tantalum technology, acclaimed and respected throughout the world, with the latest in materials, processes, and automation, resulting in unsurpassed total performance and value. This product meets or exceeds the requirements of EIA standard 535BAAC.
The T491 is classified as moisture sensitivity level (MSL) 1 under J STD 020, with unlimited floor lifetime at ≤ 30°C/85% RH. The T491 standard terminations are available in 100% matte tin and provide excellent wetting characteristics and compatibility with today's surface mount solder systems. Tin/lead (Sn/Pb) terminations are available upon request for any part number. Gold-plated terminations are also available for use with conductive epoxy attachment processes. Standard packaging of these devices is Tape & Reel in accordance with EIA 481. This system provides perfect compatibility with all tape-fed placement units.

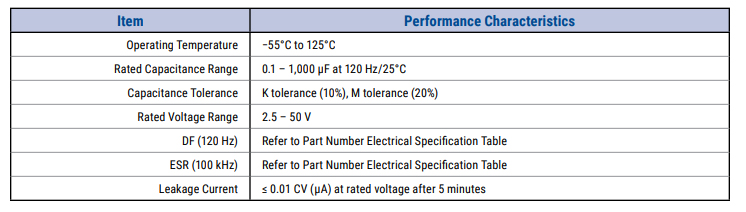

• Capacitance 0.1 – 1,000 µF
• Tolerance ±10%, ±20%
• Voltage 2.5 – 50 VDC
• Extended range values
• Low profile case sizes
• RoHS compliant and lead-free terminations
• Operating temperature range of −55°C to +125°C
• Meets or exceeds EIA Standard 535BAAC
• Tape & Reel standard packaging per EIA 481
• Symmetrical, compliant terminations
• Optional gold-plated terminations
• Laser-marked case
• 100% surge current test on C, D, E, U, V, and X sizes
• Halogen free epoxy
• Capacitance 0.1 – 1,000 µF
KEMET T491C335M035AT technical specifications, attributes, parameters and parts with similar specifications to KEMET T491C335M035AT.
KEMET T491C335M035AT technical specifications, attributes, parameters and parts with similar specifications to KEMET T491C335M035AT.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 2312 (6032 Metric) | |
| Terminal Shape | J BEND | |
| Number of Pins | 2Pins | |
| Dielectric Material | TANTALUM (DRY/SOLID) | |
| Lifetime @ Temp. | 2000 Hrs @ 125°C | |
| Operating Temperature | -55°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| Series | T491 | |
| Published | 2011 | |
| Size / Dimension | 0.236Lx0.126W 6.00mmx3.20mm | |
| Tolerance | ±20% | |
| JESD-609 Code | e3 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| Termination | SMD/SMT | |
| ECCN Code | EAR99 | |
| Type | Molded | |
| Resistance | 2.5Ohm | |
| Capacitance | 3.3μF | |
| Voltage - Rated DC | 35V | |
| Depth | 3.2mm | |
| Case Code (Metric) | 6032 | |
| Case Code (Imperial) | 2413 | |
| ESR (Equivalent Series Resistance) | 2.5Ohm | |
| Polarity | Polar |
| Product Attribute | Attribute Value | |
|---|---|---|
| Leakage Current | 1.2μA | |
| Ripple Current | 94mA | |
| Life (Hours) | 2000 hours | |
| Tan Delta | 0.06 | |
| Dissipation Factor | 6 % | |
| Manufacturer Size Code | C | |
| Features | General Purpose | |
| Height | 2.8mm | |
| Height Seated (Max) | 0.110 2.80mm | |
| Length | 6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

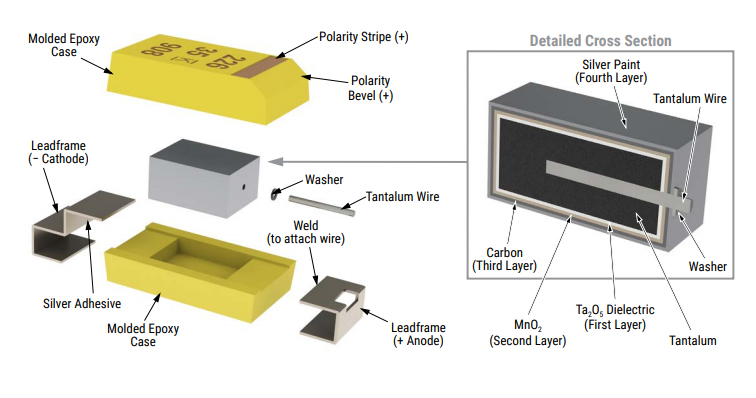

T491C335M035AT Construction
Typical applications include decoupling and filtering in many end applications, such as DC/DC converters, portable electronics, telecommunications, and control units.
KEMET Corporation, a subsidiary of Yageo Corporation, manufactures a broad selection of capacitor technologies such as tantalum, aluminum, multilayer ceramic, film, paper, polymer electrolytic, and supercapacitors. KEMET also manufacturers a variety of other passive electronic components, such as AC line filters, EMI cores and filters, flex suppressors, electro-mechanical devices, metal composite inductors, ferrite products, and transformers. The product line consists of nearly 5 million distinct part configurations distinguished by various attributes, such as dielectric material, configuration, encapsulation, capacitance, voltage, performance characteristics, and packaging.
Download datasheets and manufacturer documentation for KEMET T491C335M035AT.
Download datasheets and manufacturer documentation for T491C335M035AT
