The TB6600 is a single-chip bipolar micro-stepping motor driver controlled by PWM.
Used to control the step and direction of a stepper motor.
The withstand voltage can reach 50V, and the output current can reach 5A.
Can carry out forward and reverse control.
It can only be driven by a clock signal.
It runs a stepping motor, with little vibration and high efficiency.
The TB6600 has a micro-step function (up to 1/16 micro-step) to improve positioning accuracy. Suitable for driving 2-phase and 4-phase hybrid stepping motors.
Not suitable for professional applications.

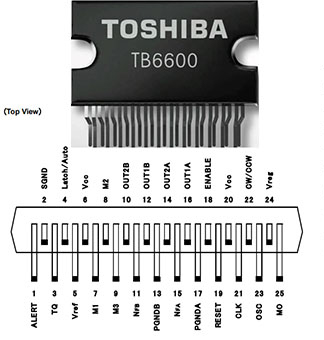

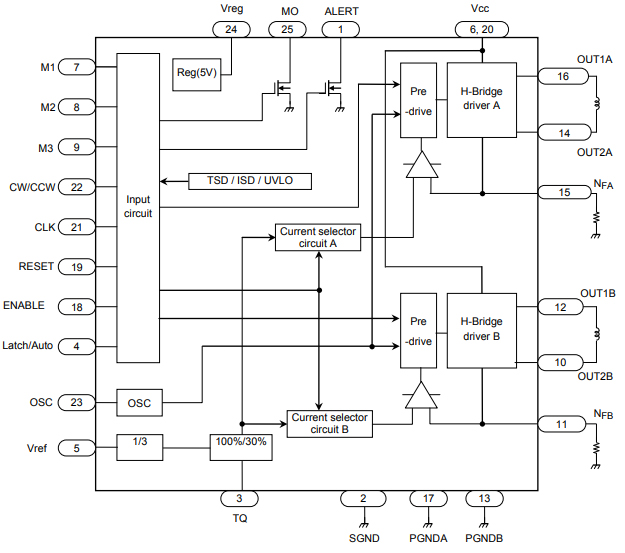

Pin function
Symbol

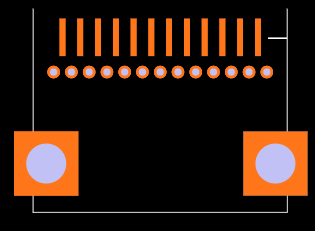

Footprint
★ Bipolar stepper motor driver
★ Supply voltage: up to 50V
★ Rated current: 4.5A/phase
★ Peak current: 5A
★ Micro stepping function (1/1, 1/2, 1/4, 1/8 and 1/16 stepping)
★ Forward and reverse rotation
★ Built-in thermal shutdown (TSD) circuit
★ Built-in over-current detection (ISD) circuit
Toshiba Semiconductor and Storage TB6600HG technical specifications, attributes, parameters and parts with similar specifications to Toshiba Semiconductor and Storage TB6600HG.
Toshiba Semiconductor and Storage TB6600HG technical specifications, attributes, parameters and parts with similar specifications to Toshiba Semiconductor and Storage TB6600HG.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 14 Weeks | |
| Mounting Type | Through Hole | |
| Package / Case | 25-SIP Formed Leads | |
| Surface Mount | NO | |
| Number of Pins | 25Pins | |
| Operating Temperature | -30°C~85°C TA | |
| Packaging | Tray | |
| Published | 2011 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 25Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Applications | General Purpose | |
| Voltage - Supply | 8V~42V | |
| Terminal Position | ZIG-ZAG | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Supply Voltage | 24V | |
| Terminal Pitch | 1mm | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Voltage | 15V | |
| Supply Voltage-Min (Vsup) | 8V | |
| Number of Channels | 2Channels | |
| Interface | Parallel |
| Product Attribute | Attribute Value | |
|---|---|---|
| Analog IC - Other Type | STEPPER MOTOR CONTROLLER | |
| Output Configuration | Half Bridge (4) | |
| Nominal Input Voltage | 5.5V | |
| Voltage - Load | 8V~42V | |
| Max Frequency | 200kHz | |
| Motor Type - Stepper | Bipolar | |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 | |
| Height Seated (Max) | 19.37mm | |
| Width | 4.5mm | |
| RoHS Status | RoHS Compliant |

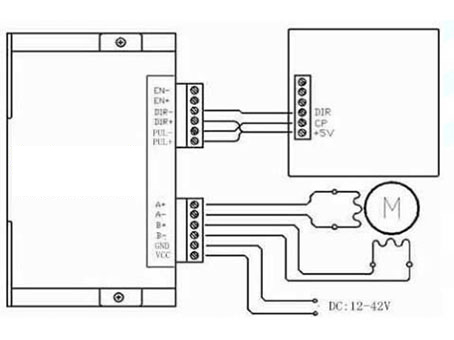

It is suitable for stepping motors of various NEMA side 17,23 and 24 (42×42mm to 60×60mm).
It can be used in various machines, such as X-Y worktables, engraving machines, labeling machines, laser cutting machines, pick and place equipment, etc.
Especially suitable for applications that require low noise, less heat, high speed and high precision

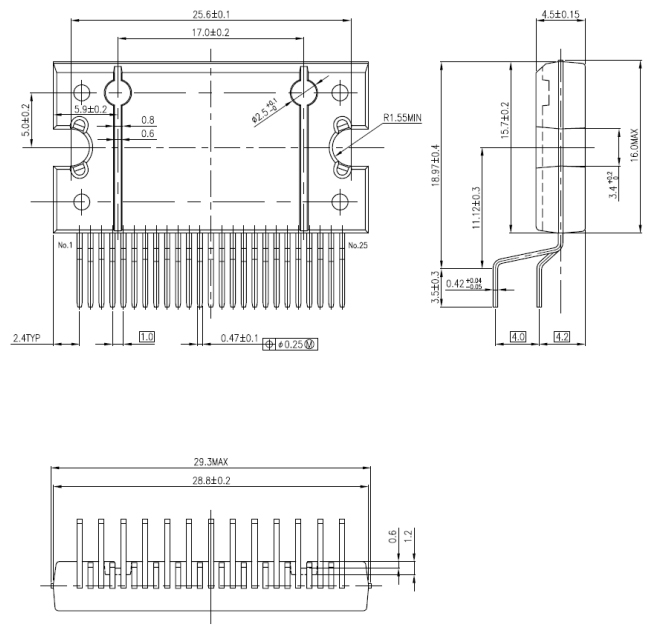

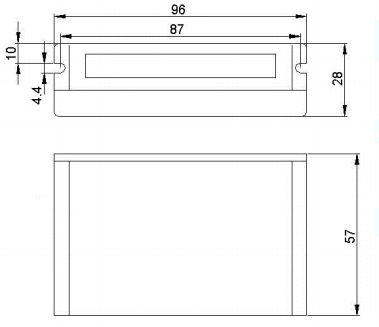

Package Dimensions
Mechanical Specifications
