TBD62083AFG:Gate Driver ,Datasheet, Pinout, and Package

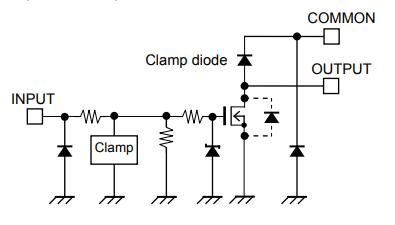

TBD62083AFG is a DMOS transistor array with 8 circuits. It has a clamp diode for switching inductive loads built-in in each output. Please be careful about thermal conditions during use.

 1.Home appliances

 2.Air conditioners

 3.White goods

 4.Water heaters

5. Office equipment

6. Industrial equipment

7. Vending machines

 8.Measuring instruments

 9.Amusement equipment

 10.High-voltage motors

Symbol

Footprint

3D Models

• 8 circuits built-in

• High voltage : VOUT = 50 V (MAX)

• High current : IOUT = 500 mA/ch (MAX)

• Input voltage(output on) :  TBD62083A series 2.5 V (MIN)

                                              TBD62084A series 7.0 V (MIN)

• Input voltage(output off) :  TBD62083A series 0.6 V (MAX)

                                               TBD62084A series 1.0 V (MAX)

• Package :  PG type P-DIP18-300-2.54-001

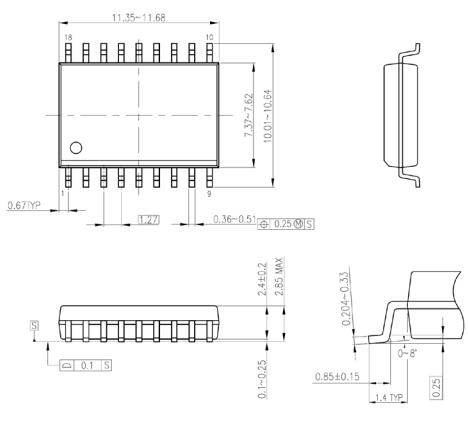

                    FG type SOP18-P-375-1.27

                   FNG type SSOP18-P-225-0.65

                   FWG type P-SOP18-0812-1.27-001

This IC does not include built-in protection circuits for excess current or overvoltage. If this IC is subjected to excess current or over-voltage, it may be destroyed. Hence, the utmost care must be taken when systems that incorporate this IC are designed. Utmost care is necessary for the design of the output line, COMMON, and GND line since IC may be destroyed due to short−circuit between outputs, air contamination fault, or fault by improper grounding.

Toshiba Corporation (Kabushikigaisha Toshiba) is a Japanese multinational conglomerate headquartered in Minato, Tokyo. Its diversified products and services include power, industrial and social infrastructure systems, elevators and escalators, electronic components, semiconductors, hard disk drives (HDD), printers, batteries, lighting, as well as IT solutions such as quantum cryptography. It was one of the biggest manufacturers of personal computers, consumer electronics, home appliances, and medical equipment. As a semiconductor company and the inventor of flash memory, Toshiba had been one of the top 10 in the chip industry until its flash memory unit was spun off as Toshiba Memory, later Kioxia, in the late 2010s.

DIP18-300-2.54-001

SOP18-P-375-1.27

SSOP18-P-225-0.65

SOP18-0812-1.27-001

Toshiba Semiconductor and Storage TBD62083AFG technical specifications, attributes, parameters and parts with similar specifications to Toshiba Semiconductor and Storage TBD62083AFG.
