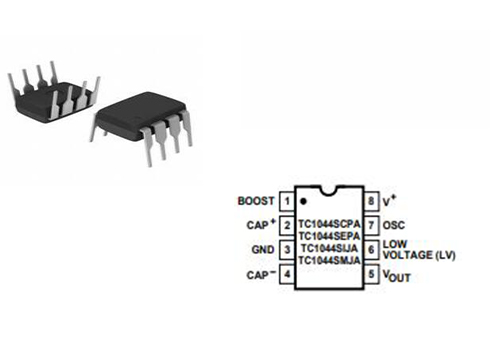

TC1044SCPA Charge Pump Switching Regulator IC: Pinout, Equivalent, TC1044SCPA VS LM2574N-ADJG

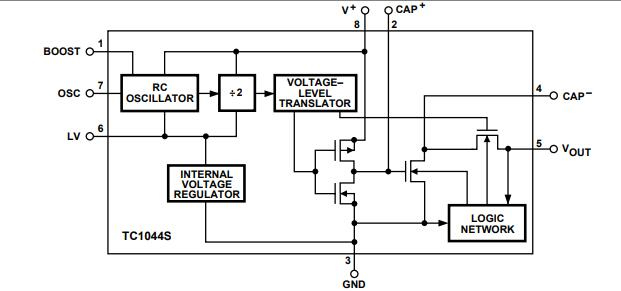

The TC1044SCPA is a pin-compatible upgrade to the Industry standard TC7660 charge pump voltage converter. It converts a +1.5V to +12V input to a corresponding –1.5V to –12V output using only two low-cost capacitors, eliminating inductors and their associated cost, size, and EMI. Added features include an extended supply range to 12V, and a frequency boost pin for higher operating frequency, allowing the use of smaller external capacitors.

The onboard oscillator operates at a nominal frequency of 10kHz. Frequency is increased to 45kHz when pin 1 is connected to V+. Operation below 10kHz (for lower supply current applications) is possible by connecting an external capacitor from OSC to the ground (with pin 1 open).

The TC1044SCPA is available in both 8-pin DIP and 8-pin small outline (SOIC) packages in commercial and extended temperature ranges.

• Converts +5V Logic Supply to ±5V System

• Wide Input Voltage Range .................... 1.5V to 12V

• Efficient Voltage Conversion ......................... 99.9%

• Excellent Power Efficiency ............................... 98%

• Low Power Consumption ............ 80µA @ VIN = 5V

• Low Cost and Easy to Use

      — Only Two External Capacitors Required

• RS-232 Negative Power Supply

• Available in 8-Pin Small-Outline (SOIC) and 8-Pin

• Plastic DIP Packages

• Improved ESD Protection ..................... Up to 10kV

• No External Diode Required for High Voltage

• Operation

• Frequency Boost Raises FOSC to 45kHz

Microchip Technology TC1044SCPA technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology TC1044SCPA.

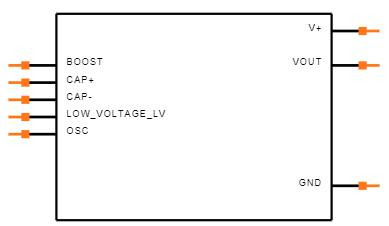

TC1044SCPA Symbol

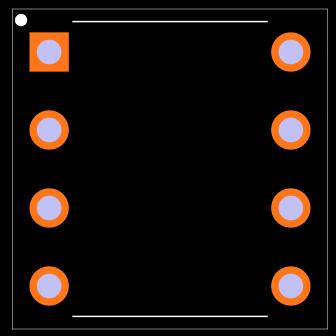

TC1044SCPA Footprint

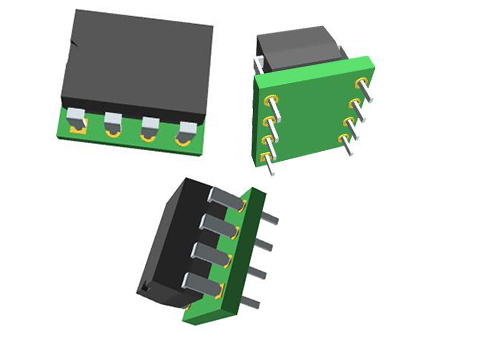

TC1044SCPA 3D Model

• Do not exceed maximum supply voltages.

• Do not connect the LV terminal to GND for supply voltages greater than 3.5V.

• Do not short circuit the output to V+ supply for voltages above 5.5V for extended periods; however, transient conditions including start-up are okay.

• When using polarized capacitors in the inverting mode, the + terminal of C1 must be connected to pin 2 of the TC1044S and the + terminal of C2 must be connected to GND.

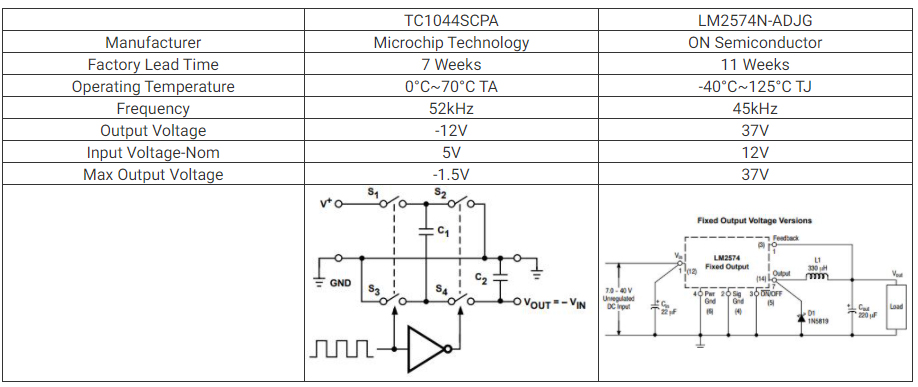

TC1044SCPA and LM2574N-ADJG have different Manufacturers. LM2574N-ADJG’s operating temperature is higher than TC1044SCPA operating from -40°C~125°C TJ. LM2574N-ADJG’s output voltage and max output voltage are 37V and 37V respectively, and TC1044SCPA’s output voltage and max output voltage are-12V and -1.5V respectively.
