TC7660COA Voltage Converter: Datasheet, Pinout, Circuit

Symbol

TC7660COA Symbol

Footprint

TC7660COA Footprint

3D Model

TC7660COA 3D Model

The TC7660COA device is a pin-compatible replacement for the industry standard 7660 charge pump voltage converter. It converts a +1.5V to +10V input to a corresponding -1.5V to -10V output using only two low-cost capacitors, eliminating inductors and their associated cost, size and electromagnetic interference (EMI).

Microchip Technology TC7660COA technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology TC7660COA.

• Wide Input Voltage Range: +1.5V to +10V

• Efficient Voltage Conversion (99.9%, typ)

• Excellent Power Efficiency (98%, typ)

• Low Power Consumption: 80 µA (typ) @ VIN = 5V

• Low Cost and Easy to Use

- Only Two External Capacitors Required

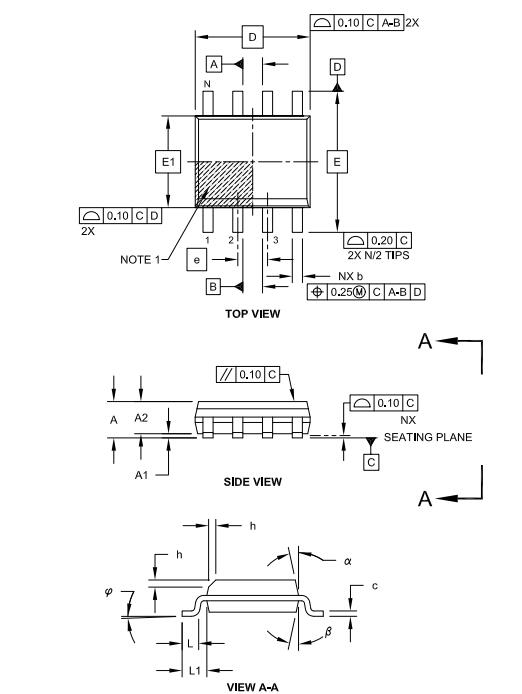

• Available in 8-Pin Small-Outline (SOIC), 8-Pin PDIP and 8-Pin CERDIP Packages

• Improved ESD Protection (3 kV HBM)

• No External Diode Required for High-Voltage Operation

TCC7660COA Functional Block Diagram

• RS-232 Negative Power Supply

• Simple Conversion of +5V to ±5V Supplies

• Voltage Multiplication VOUT = ± n V+

• Negative Supplies for Data Acquisition Systems and Instrumentation

The TC7660 charge pump converter inverts the voltage applied to the V+ pin. The conversion consists of a two-phase operation. During the first phase, switches S2 and S4 are open and switches S1 and S3 are closed. C1 charges to the voltage applied to the V+ pin, with the load current being supplied from C2. During the second phase, switches S2 and S4 are closed and switches S1 and S3 are open. A charge is transferred from C1 to C2, with the load current being supplied from C1.
