OPTOISO 3.75KV 4CH TRANS 16-SOP
This passage is going to introduce TCMT4600 from the perspectives of description, CAD models, and datasheet.
TCMT4600 Input Phototransister: Pinout, Datasheet, and Circuit
OPTOISO 3.75KV 4CH TRANS 16-SOP This passage is going to introduce TCMT4600 from the perspectives of description, CAD models, and datasheet.
94
Feb 17, 2022
Hedy Evan
TCMT4600
Inquiry
Min.: 1 Mult.: 1
Quick Links
TCMT4600 Description
The TCMT4600 is a quad-channel AC input Phototransistor Output Optocoupler with 80% minimum CTR, AC Input, and transistor output. Wide ambient temperature range and low-temperature coefficient of CTR. The low-profile mini flat package includes an optocoupler
with AC Input and transistor output. It is available in single-channel (4 pins) TCMT1600 or quad-channel (16 pins) TCMT4600.
TCMT4600 Feature
• Low profile package (half pitch)
• AC isolation test voltage 3750 VRMS
• Low coupling capacitance of typical 0.3 pF
• Low-temperature coefficient of CTR
• Wide ambient temperature range
TCMT4600 Application
1. Automotive
Advanced driver assistance systems (ADAS)/Body electronics & lighting/Hybrid, electric & powertrain systems/Infotainment & cluster
2. Communications equipment
Broadband fixed-line access/Datacom module/Wired networking/Wireless infrastructure
3. Industrial
Aerospace & defense/Appliances/Building automation/Electronic point of sale (EPOS)/Factory automation & control/Grid infrastructure/Industrial transport (non-car & non-light truck)/Lighting/Medical/Motor drives/Power delivery/Pro audio, video & signage/Test & measurement
TCMT4600 CAD Models
Symbol
Footprint
3D Models
TCMT4600 Manufacturer
Felix Zandman, a Polish-born businessman, founded Vishay Intertechnology, Inc., an American manufacturer of discrete semiconductors and passive electronic components. Vishay manufactures rectifiers, diodes, MOSFETs, optoelectronics, selected integrated circuits, resistors, capacitors, and inductors in Israel, Asia, Europe, and the Americas. In 2018, Vishay Intertechnology's revenue was $3.035 billion. Vishay Intertechnology had approximately 24,100 full-time employees as of December 31, 2018.
Vishay is a leading manufacturer of power MOSFETs in the world.
Power electronic applications include portable information appliances, internet communications infrastructure, power integrated circuits, cell phones, and notebook computers.

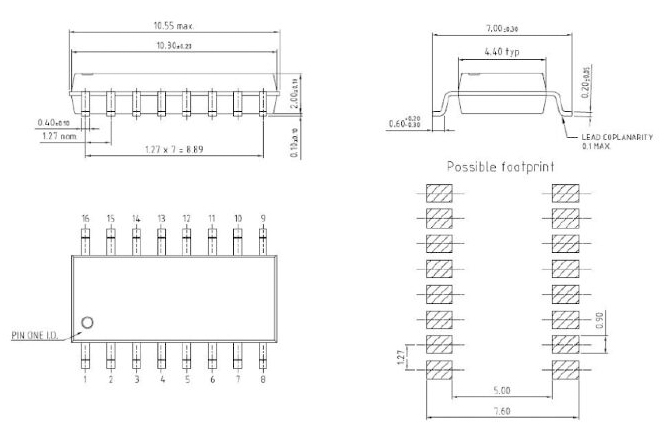

TCMT4600 Package
SOP-16
Specifications
TCMT4600 Tech Specifications
TCMT4600 Tech Specifications
Vishay Semiconductor Opto Division TCMT4600 technical specifications, attributes, parameters and parts with similar specifications to Vishay Semiconductor Opto Division TCMT4600.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 15 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-SOIC (0.173, 4.40mm Width) | |
| Number of Pins | 16Pins | |
| Collector-Emitter Breakdown Voltage | 70V | |
| Collector-Emitter Saturation Voltage | 300mV | |
| Current Transfer Ratio-Min | 80% @ 5mA | |
| Number of Elements | 4 Elements | |
| Operating Temperature | -40°C~100°C | |
| Packaging | Cut Tape (CT) | |
| Published | 2009 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| ECCN Code | EAR99 | |
| Additional Feature | UL APPROVED | |
| Max Power Dissipation | 250mW | |
| Voltage - Isolation | 3750Vrms | |
| Output Voltage | 70V | |
| Output Type | Transistor | |
| Number of Channels | 4Channels | |
| Power Dissipation | 250mW | |
| Voltage - Forward (Vf) (Typ) | 1.35V | |
| Input Type | AC, DC | |
| Forward Current | 60mA | |
| Max Output Voltage | 70V | |
| Output Current per Channel | 50mA | |
| Collector Emitter Voltage (VCEO) | 70V | |
| Max Collector Current | 50mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Rise / Fall Time (Typ) | 3μs 4.7μs | |
| Reverse Breakdown Voltage | 6V | |
| Max Input Current | 60mA | |
| Input Current | 50mA | |
| Current Transfer Ratio (Max) | 300% @ 5mA | |
| Turn On / Turn Off Time (Typ) | 6μs, 5μs | |
| Vce Saturation (Max) | 300mV | |
| Reverse Voltage (DC) | 6V | |
| Dark Current-Max | 100nA | |
| Height | 1.9mm | |
| Length | 10.4mm | |
| Width | 4.4mm | |
| REACH SVHC | Unknown | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Datasheet PDF
TCMT4600 Documents
TCMT4600 Documents
Download datasheets and manufacturer documentation for TCMT4600
Datasheets
TCMT1600, TCMT4600 Series
RohsStatement
Vishay-company-15.pdf
PCN Design/Specification
OMV-795-2014-Rev-0 03/Mar/2014
Simulation Models
AC_BJT_5mA_V2 Spice Model
Frequently Asked Questions
What’s the TCMT4600?
The TCMT4600 is a quad-channel AC input Phototransistor Output Optocoupler with 80% minimum CTR, AC Input, and transistor output.
What’s the dimensions of TCMT4600 ?
Length:10.4mm/Width:4.4mm/Height:1.9mm
Can TCMT4600 be operated in the temperature of 100℃?
Yes, its suitable operating temperature is between -40℃ and +100℃.
Where does TCMT4600made by?
TCMT4600 is made by an American manufacturer of discrete semiconductors and passive electronic components--Vishay Intertechnology.
What is the TCMT4600 available in?
single-channel (4 pins) TCMT1600 or quad-channel (16 pins) TCMT4600
FAQ
What’s the TCMT4600?
The TCMT4600 is a quad-channel AC input Phototransistor Output Optocoupler with 80% minimum CTR, AC Input, and transistor output.
What’s the dimensions of TCMT4600 ?
Length:10.4mm/Width:4.4mm/Height:1.9mm
Can TCMT4600 be operated in the temperature of 100℃?
Yes, its suitable operating temperature is between -40℃ and +100℃.
Where does TCMT4600made by?
TCMT4600 is made by an American manufacturer of discrete semiconductors and passive electronic components--Vishay Intertechnology.
What is the TCMT4600 available in?
single-channel (4 pins) TCMT1600 or quad-channel (16 pins) TCMT4600
