How does a Thyristor work?
SCR SENS GATE 1.5AMP 400V TO-92
TCR22 is a thyristors with 1.5 Amp sensitive scrs. This article mainly covers pinout, datasheet, features, applications and more details about TCR22.
TCR22 Thyristors: Pinout, Datasheet and Circuit
SCR SENS GATE 1.5AMP 400V TO-92 TCR22 is a thyristors with 1.5 Amp sensitive scrs.
265
Jul 12, 2021
Hilary Martin
TCR22-6
18900In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.32329 | $1.32 |
| 10+ | $1.24839 | $12.48 |
| 100+ | $1.17772 | $117.77 |
| 500+ | $1.11106 | $555.53 |
| 1000+ | $1.04817 | $1048.17 |
Unit Price:$1.32329
Subtotal: $1.32
Quick Links
TCR22 Description
TCR22 is a thyristor with 1.5 Amp sensitive scrs. The thyristor has excellent and unidirectional switches for phase control applications such as heating and motor speed controls. Sensitive gate SCRs are easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors.

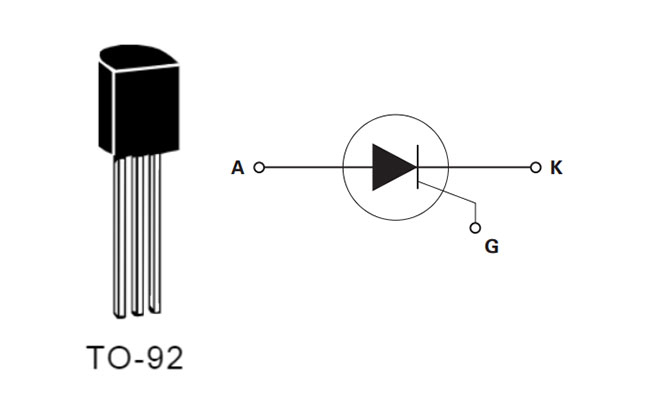

TCR22 Pinout
Specifications
Littelfuse Inc. TCR22-6 technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. TCR22-6.
TCR22-6 Tech Specifications
TCR22-6 Tech Specifications
Littelfuse Inc. TCR22-6 technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. TCR22-6.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 19 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Number of Pins | 3Pins | |
| Number of Elements | 1 Element | |
| Operating Temperature | -40°C~110°C | |
| Packaging | Bulk | |
| Published | 2005 | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| Terminal Finish | Matte Tin (Sn) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Additional Feature | HIGH RELIABILITY | |
| Voltage - Rated DC | 400V | |
| Terminal Position | BOTTOM | |
| Terminal Form | WIRE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Reach Compliance Code | unknown | |
| Current Rating | 1.5A | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Pin Count | 3 | |
| Qualification Status | Not Qualified | |
| Configuration | SINGLE | |
| Case Connection | ISOLATED | |
| RMS Current (Irms) | 1.5A | |
| Hold Current | 5mA | |
| Trigger Device Type | SCR |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Gate Trigger (Vgt) (Max) | 800mV | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 16A 20A | |
| Current - Gate Trigger (Igt) (Max) | 200μA | |
| Current - Hold (Ih) (Max) | 5mA | |
| Leakage Current (Max) | 0.001mA | |
| Current - On State (It (AV)) (Max) | 950mA | |
| Non-Repetitive Pk On-state Cur | 160 A | |
| SCR Type | Sensitive Gate | |
| Voltage - On State (Vtm) (Max) | 1.5V | |
| Critical Rate of Rise of Off-State Voltage-Min | 40V/us | |
| Current - Off State (Max) | 1μA | |
| Circuit Commutated Turn-off Time-Nom | 50 μs | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
TCR22 Features
-
RoHS complaint
-
Voltage capability up to 600V
-
Glass-passivated junctions
-
Surge capability up to 20A

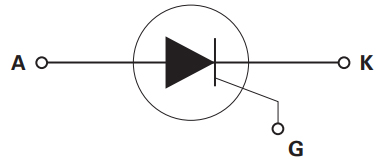

TCR22 Schematic

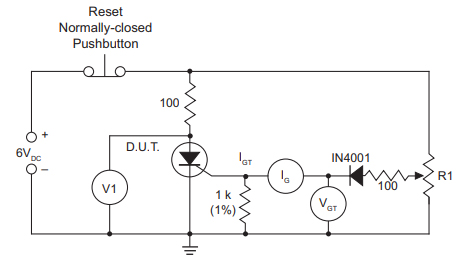

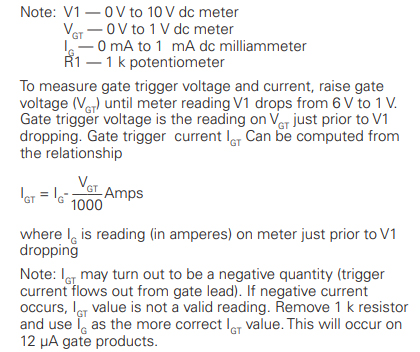

TCR22 Test Circuit
TCR22 Applications
Typical applications are capacitive discharge systems for strobe lights and gas engine ignition. Also controls for power tools, home/brown goods and white goods appliances.
TCR22 Manufacturer
Littelfuse products are vital components in applications that use electrical energy, from consumer electronics to vehicles and industrial facilities. They offer the industry’s broadest and deepest portfolio of circuit protection products, with growing platforms in power control and sensing. They are expanding into adjacent markets as part of their corporate strategy of accelerated organic growth and strategic acquisitions. These markets include power semiconductors, heavy-duty switches, magnetic, optical, electromechanical, and temperature sensors; and products that provide safe control and distribution of electrical power.
Datasheet PDF
Download datasheets and manufacturer documentation for Littelfuse Inc. TCR22-6.
TCR22-6 Documents
TCR22-6 Documents
Download datasheets and manufacturer documentation for TCR22-6
Frequently Asked Questions
What are the advantages of tcr22 thyristors?
The high-power tube introduces the application of semiconductor devices into the field of strong electricity, and at the same time has good sensitivity, pressure resistance and efficiency. It is mostly used in high-power electronic circuits such as rectification, inverter and voltage regulation.
What is the use of TCR22 Thysitor?
Thyristor is a very important power device. Its main feature is to achieve high voltage and high current control through small current. In practical applications, it is mainly used as a controllable rectifier device and a controllable electronic switch. It can be used as a motor drive control, motor Control devices such as speed control, power on/off, voltage regulation, temperature control, etc., are widely used in the fields of electronic and electrical products, industrial control and automated production. Thyristor can be used as a controllable rectifier device, electronic switch.
FAQ
What are the advantages of tcr22 thyristors?
The high-power tube introduces the application of semiconductor devices into the field of strong electricity, and at the same time has good sensitivity, pressure resistance and efficiency. It is mostly used in high-power electronic circuits such as rectification, inverter and voltage regulation.
What is the use of TCR22 Thysitor?
Thyristor is a very important power device. Its main feature is to achieve high voltage and high current control through small current. In practical applications, it is mainly used as a controllable rectifier device and a controllable electronic switch. It can be used as a motor drive control, motor Control devices such as speed control, power on/off, voltage regulation, temperature control, etc., are widely used in the fields of electronic and electrical products, industrial control and automated production. Thyristor can be used as a controllable rectifier device, electronic switch.
