VISHAY - TCST2103 - SENSOR, OPTICAL, PHOTOTRANSISTOR O/P
The TCST2103 is a transmissive sensor that includes an infrared emitter and phototransistor, located face-to-face on the optical axes in a leaded package that blocks visible light. This passage is going to introduce TCST2103 from the perspectives of datasheet, pinout, and manufacturer.
TCST2103
Vishay's TCST2103, which is distributed by Utmel Electronics. It falls under the category of Optical Sensors.
It is used in a variety of fields, including automotive Advanced driver assistance systems (ADAS) and enterprise systems. a business machine Electronics for personal use Home entertainment and home theater.
And the main parameters of this section are: Coupler for forks 11.9 x 6.3 x 10.8 mm in length, width, and height Width of the gap: 3.1 mm Temperature range of operation: -55...+85 °C 8 seconds for a break Make-up time: 10 seconds The collector-emitter voltage at the output is 70 volts. It is also environmentally friendly and RoHS compliant (lead-free / RoHS compliant).
• Package type: leaded
• Detector type: phototransistor
• Dimensions (L x W x H in mm): 24.5 x 6.3 x 10.8
• Gap (in mm): 3.1
• Typical output current under test: IC = 4 mA (TCST2103)
• Typical output current under test: IC = 2 mA (TCST2202)
• Typical output current under test: IC = 0.5 mA (TCST2300)
• Daylight blocking filter
• Emitter wavelength: 950 nm
• Lead (Pb)-free soldering released
• Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC
Symbol

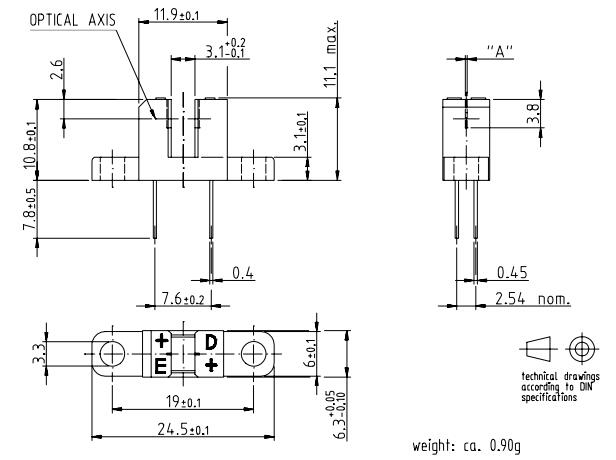

Footprint

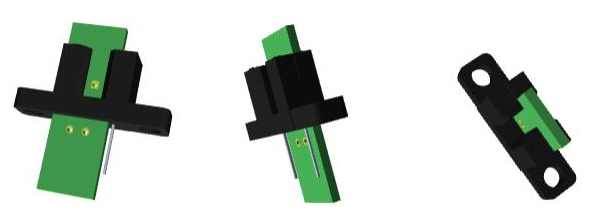

3D Models
1. Automotive
Advanced driver assistance systems (ADAS)/Body electronics & lighting/Hybrid, electric & powertrain systems/Infotainment & cluster
2. Enterprise systems
Datacenter & enterprise computing/Enterprise machine/Enterprise projectors
3. Personal electronics
Connected peripherals & printers/Data storage/Gaming/Home theater & entertainment/Mobile phones/PC & notebooks/Portable electronics/Tablets/TV/Wearables (non-medical)
Felix Zandman, a Polish-born businessman, founded Vishay Intertechnology, Inc., an American manufacturer of discrete semiconductors and passive electronic components. Vishay manufactures rectifiers, diodes, MOSFETs, optoelectronics, selected integrated circuits, resistors, capacitors, and inductors in Israel, Asia, Europe, and the Americas. In 2018, Vishay Intertechnology's revenue was $3.035 billion. Vishay Intertechnology had approximately 24,100 full-time employees as of December 31, 2018.
Vishay is a leading manufacturer of power MOSFETs in the world.
Power electronic applications include portable information appliances, internet communications infrastructure, power integrated circuits, cell phones, and notebook computers.
Vishay Semiconductor Opto Division TCST2103 technical specifications, attributes, parameters and parts with similar specifications to Vishay Semiconductor Opto Division TCST2103.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Contact Plating | Silver | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | Slotted Module, 4-Lead Dual Row | |
| Number of Pins | 4Pins | |
| Collector-Emitter Breakdown Voltage | 70V | |
| Current-Collector (Ic) (Max) | 4mA | |
| Number of Elements | 1 Element | |
| Operating Temperature | -55°C~85°C | |
| Packaging | Tube | |
| Published | 2001 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Type | Unamplified | |
| Max Operating Temperature | 85°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Operating Temperature | -55°C | |
| Voltage - Rated DC | 1.25V | |
| Output Voltage | 70V | |
| Max Output Current | 100mA | |
| Number of Channels | 1Channel | |
| Output Configuration | Phototransistor | |
| Power Dissipation | 250mW | |
| Output Current | 100mA | |
| Output Power | 100mW | |
| Forward Current | 60mA | |
| Response Time | 10μs, 8μs | |
| Rise Time | 10μs | |
| Forward Voltage | 1.25V | |
| Fall Time (Typ) | 8 μs | |
| Collector Emitter Voltage (VCEO) | 70V | |
| Max Collector Current | 100mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Sensing Distance | 3.1mm | |
| Voltage - Collector Emitter Breakdown (Max) | 70V | |
| Reverse Breakdown Voltage | 6V | |
| Sensing Method | Through-Beam | |
| Current - DC Forward (If) (Max) | 60mA | |
| Input Current | 60mA | |
| Reverse Voltage (DC) | 6V | |
| Current Transfer Ratio | 20 % | |
| Height | 10.8mm | |
| Length | 24.5mm | |
| Width | 6.3mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
