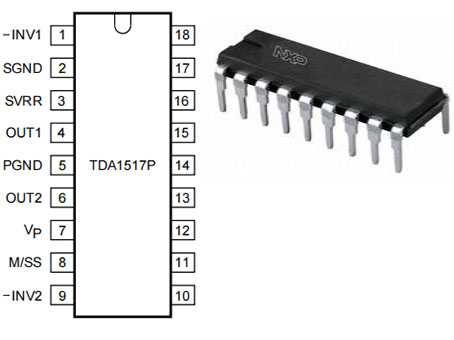

TDA1517P
Audio Amp Speaker 2-CH Stereo 6W Class-B 18-Pin HDIP Tube

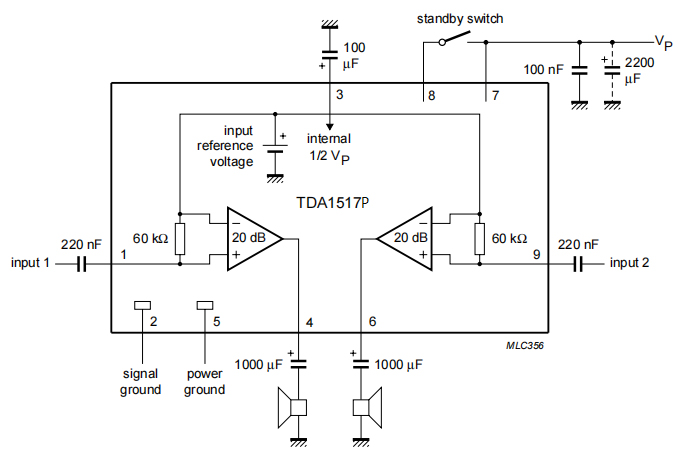

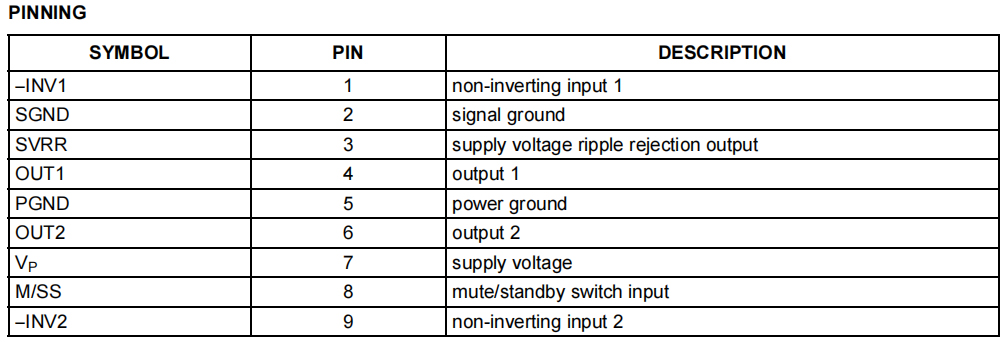

Hello everyone, I am Rose. Today I will introduce TDA1517P to you. The TDA1517P is an integrated class-B dual output amplifier.This article mainly introduce circuit, replacement, pinout and other detailed information about NXP Semiconductor TDA1517P.
TDA1517P/N3,112
The TDA1517 is an integrated class-B dual output amplifier in a plastic single in-line medium power package with fin (SIL9MPF), a plastic rectangular-bent single in-line medium power package with fin (RBS9MPF) or a plastic heat-dissipating dual in-line package (HDIP18). The device is primarily developed for multi-media applications.

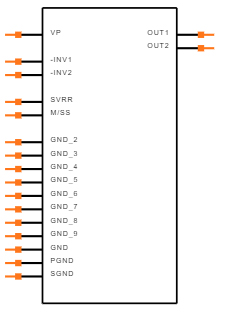

Symbol

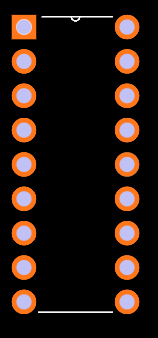

Footprint

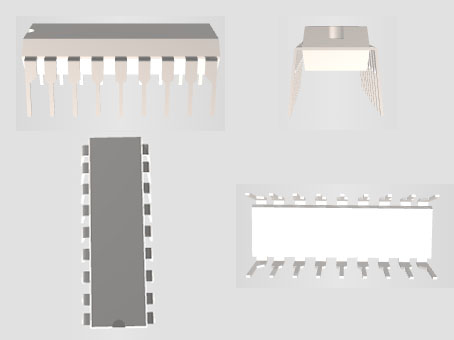

3D Model
■ Requires very few external components
■ High output power
■ Fixed gain
■ Good ripple rejection
■ Mute/standby switch
■ AC and DC short-circuit safe to ground and VP
■ Thermally protected
■ Reverse polarity safe
■ Capability to handle high energy on outputs (VP = 0 V)
■ No switch-on/switch-off plop
■ Electrostatic discharge protection.
NXP USA Inc. TDA1517P/N3,112 technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. TDA1517P/N3,112.
NXP USA Inc. TDA1517P/N3,112 technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. TDA1517P/N3,112.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Through Hole | |
| Package / Case | 18-DIP (0.300, 7.62mm) Exposed Pad | |
| Surface Mount | YES | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tube | |
| Published | 1995 | |
| JESD-609 Code | e3 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 44Terminations | |
| Type | Class B | |
| Terminal Finish | TIN | |
| HTS Code | 8542.33.00.01 | |
| Voltage - Supply | 6V~18V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | QUAD | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Number of Functions | 1Function | |
| Terminal Pitch | 0.8mm | |
| Reach Compliance Code | unknown | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | TDA1517 | |
| Pin Count | 18 | |
| JESD-30 Code | S-PQFP-G44 | |
| Qualification Status | Not Qualified | |
| Output Type | 2-Channel (Stereo) | |
| Supply Voltage-Max (Vsup) | 18V | |
| Power Supplies | 14.4V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Supply Voltage-Min (Vsup) | 6V | |
| Number of Channels | 2Channels | |
| Supply Current-Max | 80mA | |
| Output Power | 6W | |
| Bandwidth | 20 kHz | |
| Gain | 20 dB | |
| Max Output Power x Channels @ Load | 6W x 2 @ 4 Ω | |
| Harmonic Distortion | 10% | |
| Features | Depop, Mute, Short-Circuit and Thermal Protection, Standby | |
| Length | 10mm | |
| Height Seated (Max) | 1.6mm | |
| Width | 10mm | |
| RoHS Status | ROHS3 Compliant |
● Uesd in LCD-TV, Monitors
● Used in Multi-media AV center Hi-Fi applications
NXP Semiconductors enables secure connections and infrastructure for a smarter world, advancing solutions that make lives easier, better and safer. As the world leader in secure connectivity solutions for embedded applications, NXP is driving innovation in the secure connected vehicle, end-to-end security & privacy and smart connected solutions markets. Built on more than 60 years of combined experience and expertise, the company has 45,000 employees in more than 35 countries.
Download datasheets and manufacturer documentation for NXP USA Inc. TDA1517P/N3,112.
Download datasheets and manufacturer documentation for TDA1517P/N3,112
