The TDA2003V is a 10W Car Radio Audio Amplifier. This article covers its datasheet, alternative, pinout and more details about TDA2003V.
TDA2003V Amplifier: Datasheet, Alternative, Pinout and Circuit
IC AMP AUDIO 12W MONO PENTAWATT6
62
Aug 7, 2021
Sara Gresham
TDA2003V
6000In Stock
Min.: 1 Mult.: 1
Quick Links

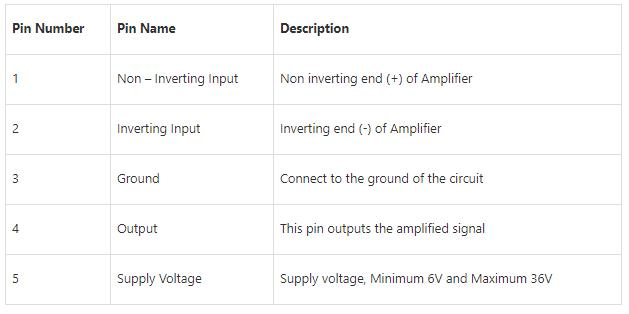

TDA2003V Pinout
TDA2003V CAD Model
Symbol

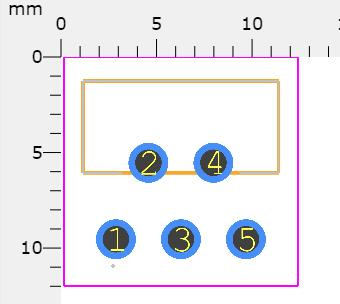

Footprint
3D Model
TDA2003V Description
The TDA2003V is a 10W Car Radio Audio Amplifier. It has improved performance with the same pin configuration as the TDA 2002 and provides a high output current capability (up to 3.5A) very low harmonic and cross-over distortion.
TDA2003V Features
-
Low-frequency class AB amplifier most suited for audio amplification
-
Can provide up to 20 Watts as output power
-
Operating Voltage: 8V to 18V
-
Maximum output power 12V (at 1.6Ω RL)
-
Voltage Gain: 80dB
-
Supply Voltage rejection: 36dB
-
Short circuit and thermal protection is available
-
Breadboard friendly
-
Available in 5-pin TO220 package
TDA2003V Block Diagram
Specifications
STMicroelectronics TDA2003V technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA2003V.
TDA2003V Tech Specifications
TDA2003V Tech Specifications
STMicroelectronics TDA2003V technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA2003V.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | Pentawatt-5 (Vertical, Bent and Staggered Leads) | |
| Number of Pins | 5Pins | |
| Operating Temperature | -40°C~150°C TJ | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 5Terminations | |
| ECCN Code | EAR99 | |
| Type | Class AB | |
| Terminal Finish | Matte Tin (Sn) | |
| Max Power Dissipation | 20W |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 8V~18V | |
| Terminal Position | ZIG-ZAG | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Number of Functions | 1Function | |
| Terminal Pitch | 1.7mm | |
| Reach Compliance Code | not_compliant | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | TDA2003 | |
| Pin Count | 5 | |
| Qualification Status | Not Qualified | |
| Output Voltage | 7.7V | |
| Output Type | 1-Channel (Mono) | |
| Operating Supply Voltage | 15V | |
| Supply Voltage-Max (Vsup) | 18V | |
| Supply Voltage-Min (Vsup) | 8V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Channels | 1Channel | |
| Nominal Supply Current | 3.5A | |
| Power Dissipation | 20W | |
| Quiescent Current | 44mA | |
| Output Power | 12W | |
| Supply Type | Single | |
| Bandwidth | 22 kHz | |
| Power Supply Rejection Ratio (PSRR) | 36dB | |
| Gain | 80 dB | |
| Max Output Power | 12W | |
| Max Output Power x Channels @ Load | 12W x 1 @ 1.6 Ω | |
| Harmonic Distortion | 10% | |
| Features | Short-Circuit and Thermal Protection | |
| RoHS Status | ROHS3 Compliant |
TDA2003V Application
-
Used for Audio signal Amplification
-
Suitable for high power amplification
-
Capable of operating on dual/split power supply
-
Can be used to cascade audio speakers
TDA2003V Application Circuit

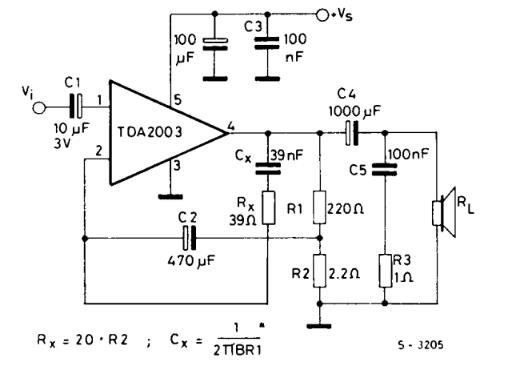

The TDA2003V is a general-purpose 10W amplifier that can be used in stereo or mono audio design circuits. It is also breadboard friendly and hence can be easily tested using a breadboard. An application circuit for TDA2003V is given below.
TDA2003V Test Circuit
TDA2003V can also handle short circuits in both AC and DC rail without killing themselves. And, completely safe operation is guaranteed due to protection against DC and AC short circuits between all pins and ground, thermal over-range, load dump voltage surge up to 40V and fortuitous open ground. The test circuit, DC and AC short circuit for TDA2003V is given below.
TDA2003V Package
TDA2003V Manufacturer
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivalled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics TDA2003V.
TDA2003V Documents
TDA2003V Documents
Download datasheets and manufacturer documentation for TDA2003V
