TDA2005R Amplifier: Pinout, Datasheet, Features and Circuit

The TDA2005 is a class B dual audio power amplifier in Multiwatt11 package specifically designed for car radio applications.

Symbol

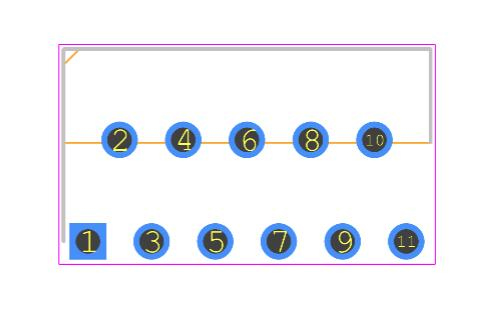

Footprint

3D Model

■ High output power:

– Po = 10 + 10 W @ RL = 2 , THD = 10 %

– Po = 20 W @ RL = 4 , THD = 10 %.

■ Protection against:

– Output DC and AC short circuit to ground

– Overrating chip temperature

– Load dump voltage surge

– Fortuitous open ground

– Very inductive loads

■ Loudspeaker protection during short circuit for

   one wire to ground

STMicroelectronics TDA2005R technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA2005R.

• Audio power amplifiers

•  Car radio

•   Music players

•   Woofer amplifiers

• Microphone amplifiers
