AMP, AUDIO, 14W, 2030, PENTAWATT-5 TDA2030 is a 14w hi-fi audio amplifier. This article mainly covers pinout, datasheet, applications, alternatives, and more details about TDA2030.
1948
Sep 7, 2021
Sally Elizabeth
TDA2030 Audio Amplifier Module | Heavy Bass
AMP, AUDIO, 14W, 2030, PENTAWATT-5
TDA2030 is a 14w hi-fi audio amplifier. This article mainly covers pinout, datasheet, applications, alternatives, and more details about TDA2030. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome RFQ!
TDA2030V
| Pin Number | Pin Name | Description |
| 1 | Non – Inverting Input | Non-inverting end (+) of Amplifier |
| 2 | Inverting Input | Inverting end (-) of Amplifier |
| 3 | Vs (Ground) | Connect to the ground of the circuit |
| 4 | Output | This pin outputs the amplified signal |
| 5 | Vs (Power) | Supply voltage, Minimum 6V, and Maximum 36V |
Symbol
Symbol
Footprint
Footprint

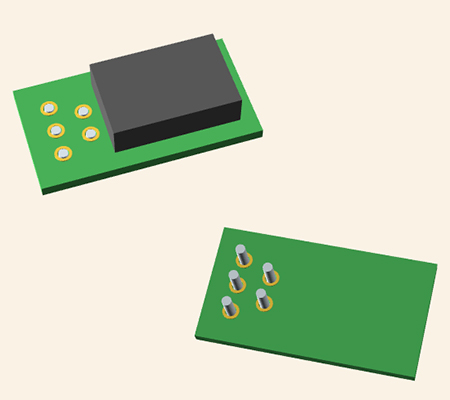

3D Model
3D Model
STMicroelectronics TDA2030V technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA2030V.
STMicroelectronics TDA2030V technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA2030V.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | Pentawatt-5 (Vertical, Bent and Staggered Leads) | |
| Number of Pins | 5Pins | |
| Operating Temperature | -40°C~150°C TJ | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Termination | Through Hole | |
| ECCN Code | EAR99 | |
| Type | Class AB | |
| Terminal Finish | Matte Tin (Sn) | |
| Max Power Dissipation | 20W | |
| Voltage - Supply | 12V~36V ±6V~18V | |
| Terminal Position | ZIG-ZAG | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Functions | 1Function | |
| Reach Compliance Code | not_compliant | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | TDA2030 | |
| Pin Count | 5 | |
| Qualification Status | Not Qualified | |
| Output Type | 1-Channel (Mono) | |
| Operating Supply Voltage | 28V | |
| Number of Channels | 1Channel | |
| Nominal Supply Current | 60mA | |
| Power Dissipation | 20W | |
| Output Current | 3.5A | |
| Quiescent Current | 40mA | |
| Output Power | 14W | |
| Supply Type | Dual, Single | |
| Input Offset Voltage (Vos) | 20mV | |
| Nominal Input Voltage | 15V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Power Supply Rejection Ratio (PSRR) | 50dB | |
| Gain | 90 dB | |
| Max Dual Supply Voltage | 18V | |
| Max Output Power | 18W | |
| Min Dual Supply Voltage | 6V | |
| Dual Supply Voltage | 15V | |
| Input Bias Current | 2μA | |
| Max Output Power x Channels @ Load | 18W x 1 @ 4 Ω | |
| Harmonic Distortion | 10% | |
| Number of Amplifiers | 1Amplifier | |
| Load Impedance | 4Ohm | |
| Features | Short-Circuit and Thermal Protection | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Low-frequency class AB amplifier most suited for audio amplification
Can provide up to 20 Watts as output power
Wide range of power supply from 6V to 36V
Short circuit and thermal protection is available
Breadboard friendly
Available in 5-pin TO220 package
In amplifying audio signals
Used in high power amplification
It operates on a Dual or Split power supply
It is used in audio speakers for cascading
The TDA2030 is a powerful audio amplifier IC with the capacity of amplifying the audio signals from audio sources like a microphone or mobile phone jack to increase the volume once the audio is generated from a speaker. Audio amplifier circuits can also be made using simple op-amps, but if you need a higher volume that is loud enough for a room then this power audio amplifier is will be the best choice. This IC can deliver up to 20W of output power, so you can run a 4Ω speaker at 12W or an 8Ω speaker at 8W.
The R4 resistor which is connected in between pins 2 & 4 is known as a feedback resistor. This resistor can be used to attain the gain. If this resistor is not proper then this circuit will not work properly.
In the above TDA2030 circuit diagram, the connection of R1 and C2 can be done in series. Through pin 2 of the IC to hold back the noises within the audio signal and pin-3 is grounded. The o/p of the IC is connected through the 2200uf value of the series capacitor which allows amplified signal toward the speaker.
| Part | Compare | Manufacturers | Category | Description |
| TDA2030AH | Current Part | ST Microelectronics | Audio Amplifiers | Audio Amp Speaker 1CH Mono 18W Class-AB 5Pin(5+Tab) PENTAWATT Tube |
| TDA2030H | TDA2030AH VS TDA2030H | ST Microelectronics | Audio Amplifiers | Audio Power Amplifier, AB, 1Channel, 14W, ± 6V to ± 18V, Pentawatt V, 5Pins |
| TDA2030V | TDA2030AH VS TDA2030V | ST Microelectronics | Audio Amplifiers | Audio Amp Speaker 1CH Mono 18W Class-AB 5Pin(5+Tab) PENTAWATT Tube |
| TDA2030AV | TDA2030AH VS TDA2030AV | ST Microelectronics | Audio Amplifiers | Audio Amp Speaker 1CH Mono 18W Class-AB 5Pin(5+Tab) PENTAWATT Tube |
ST is a global semiconductor leader delivering intelligent and energy-efficient products and solutions that power electronics at the heart of everyday life. ST’s products are found everywhere today, and together with our customers, we are enabling smarter driving and smarter factories, cities, and homes, along with the next generation of mobile and Internet of Things devices. By getting more from technology to get more from life, ST stands for life.
Download datasheets and manufacturer documentation for TDA2030V
