The TDA7265 is class AB dual Audio power amplifier specially designed for high quality sound application as Hi-Fi music centers and stereo TV sets.
TDA7265
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $4.97154 | $4.97 |
| 10+ | $4.69013 | $46.9 |
| 100+ | $4.42465 | $442.47 |
| 500+ | $4.1742 | $2087.1 |
| 1000+ | $3.93793 | $3937.93 |
The TDA7265 is class AB dual Audio power amplifier assembled in the Multiwatt package, specially designed for high quality sound application as Hi-Fi music centers and stereo TV sets.

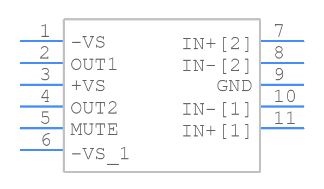

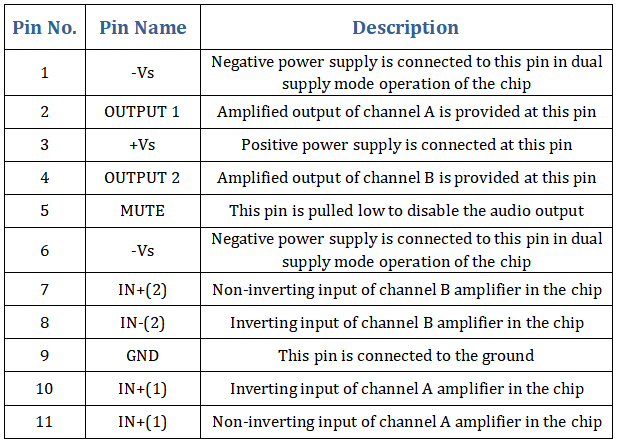

Symbol
Footprint
3D Model
Wide supply voltage range (up to ±25V ABS max.)
Split supply
High output power 25 + 25W @ THD =10%, RL = 8Ω, Vs = +20V
No pop at turn-on/off
Mute (pop free)
Stand-by feature (low Iq)
Short circuit protection
Thermal overload protection

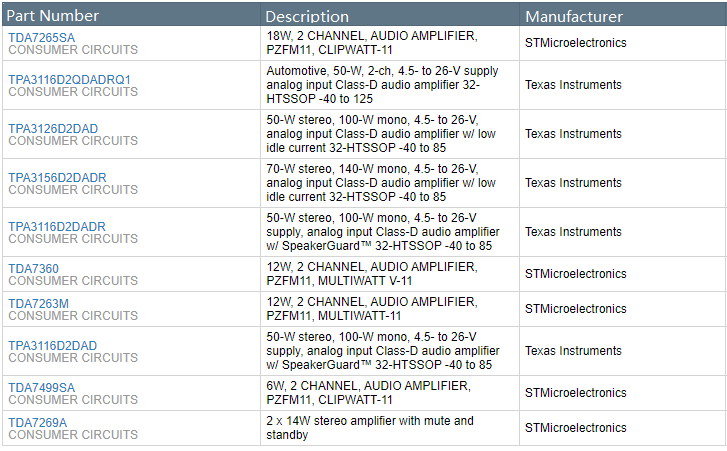

STMicroelectronics TDA7265 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA7265.
STMicroelectronics TDA7265 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA7265.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Lead, Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | Multiwatt-11 (Vertical, Bent and Staggered Leads) | |
| Number of Pins | 11Pins | |
| Weight | 8.164663g | |
| Operating Temperature | -20°C~85°C TA | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 11Terminations | |
| ECCN Code | EAR99 | |
| Type | Class AB | |
| Terminal Finish | Tin (Sn) | |
| Max Power Dissipation | 30W |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | ±5V~25V | |
| Terminal Position | ZIG-ZAG | |
| Number of Functions | 1Function | |
| Terminal Pitch | 1.7mm | |
| Base Part Number | TDA7265 | |
| Pin Count | 11 | |
| Output Type | 2-Channel (Stereo) | |
| Number of Channels | 2Channels | |
| Nominal Supply Current | 4.5A | |
| Power Dissipation | 30W | |
| Quiescent Current | 80mA | |
| Output Power | 25W | |
| Supply Type | Dual | |
| Input Offset Voltage (Vos) | 20mV | |
| Bandwidth | 22 kHz | |
| Voltage Gain | 80dB | |
| Power Supply Rejection Ratio (PSRR) | 60dB | |
| Gain | 80 dB |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Dual Supply Voltage | 25V | |
| Max Output Power | 25W | |
| Min Dual Supply Voltage | 5V | |
| Dual Supply Voltage | 24V | |
| Input Bias Current | 500nA | |
| Max Output Power x Channels @ Load | 25W x 2 @ 8 Ω | |
| Harmonic Distortion | 10% | |
| Load Impedance | 4Ohm | |
| Features | Depop, Mute, Short-Circuit and Thermal Protection, Standby | |
| Height | 10.7mm | |
| Length | 19.6mm | |
| Width | 5mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Being a class AB dual audio power amplifier, the TDA7265 is typically used in high quality sound applications such as Hi-Fi music centers and stereo TV sets. With high power output capacity the TDA7265 can also be used for driving loud speakers and woofers.
Audio power amplifiers
Stereo TV sets
Hi-Fi music centers
Guitar amplifiers
Music players
Woofer amplifiers
Hobby projects

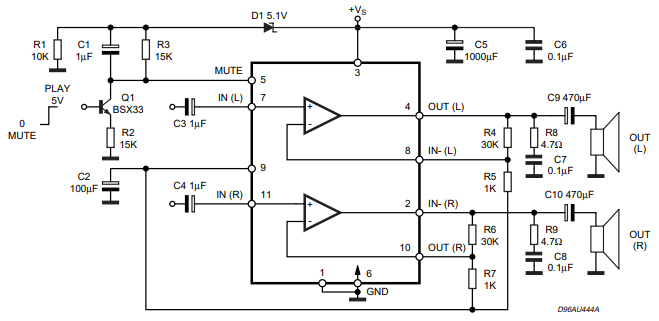

TDA7265 Typical Application Circuit in Split Supply

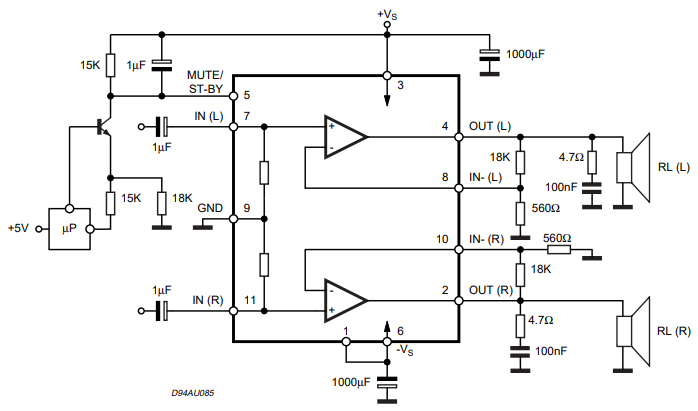

TDA7265 Typical Application Circuit in Single Supply
TDA7265 Test and Application Circuit (Stereo Configuration)
TDA7265 Bridge Application Circuit
TDA7265 Package Outline

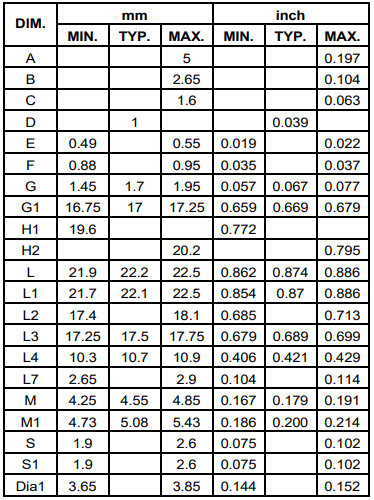

TDA7265 Mechanical Data
