TDA7266SA Amplifier: Diagram, Pinout, and Datasheet [Video&FAQ]

Linear - Amplifiers - Audio Clipwatt-15 (Vertical, Bent and Staggered Leads) 3V~18V Mute, Short-Circuit and Thermal Protection, Standby 0°C~70°C TA TDA7266 Single IC AMP AB STEREO 7W 15CLIPWATT

7934

Nov 19, 2021

Burton Kitto

how to make tda 7266 sa amplifier deep bass low noise 12v single supply amplifier

Linear - Amplifiers - Audio Clipwatt-15 (Vertical, Bent and Staggered Leads) 3V~18V Mute, Short-Circuit and Thermal Protection, Standby 0°C~70°C TA TDA7266 Single IC AMP AB STEREO 7W 15CLIPWATT

The TDA7266SA is a dual bridge amplifier built specifically for LCD monitors, PC motherboards, televisions, and portable radios. This article mainly introduces diagram, pinout, datasheet and other detailed information about STMicroelectronics TDA7266SA.

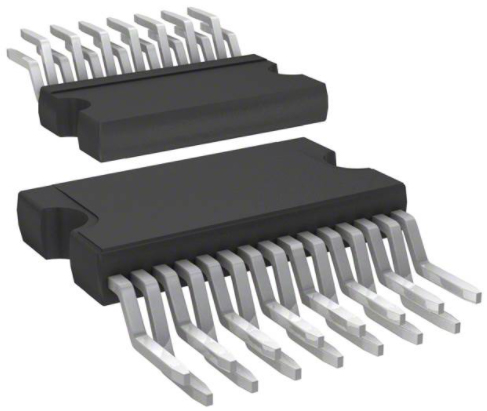

TDA7266SA

1000In Stock
Min.: 1 Mult.: 1
Price not displayed? Not available to buy online? Please send an RFQ, and we will respond immediately.
Quick Links

TDA7266SA Description

The TDA7266SA is a dual bridge amplifier built specifically for LCD monitors, PC motherboards, televisions, and portable radios.

TDA7266SA Pinout

The following figure is the Pinout of TDA7266SA.

Pinout

TDA7266SA CAD Model

The followings are TDA7266SA Symbol, Footprint and 3D Model.

Symbol

Footprint

3D Model

TDA7266SA Features

• Wide Supply Voltage Range (3.5-18v)

• Minimum External Components

– No SWR Capacitor

– No Bootstrap

– No Boucherot Cells

– Internally Fixed Gain

• Stand-by & Mute Functions

• Short Circuit Protection

• Thermal Overload Protection

Specifications

STMicroelectronics TDA7266SA technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA7266SA.

TDA7266SA Tech Specifications

STMicroelectronics TDA7266SA technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA7266SA.

Product Attribute Attribute Value
Package / CaseClipwatt-15 (Vertical, Bent and Staggered Leads)
Mounting TypeThrough Hole
MountThrough Hole
Number of Pins15Pins
PackagingTube
Operating Temperature0°C~70°C TA
JESD-609 Codee3
Pbfree Codeyes
Part StatusObsolete
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations15Terminations
ECCN CodeEAR99
TypeClass AB
Terminal FinishMatte Tin (Sn) - annealed
Max Power Dissipation20W
Product Attribute Attribute Value
Voltage - Supply3V~18V
Terminal PositionZIG-ZAG
Number of Functions1Function
Base Part NumberTDA7266
Pin Count15
Output Type2-Channel (Stereo)
Operating Supply Voltage11V
Supply Voltage-Max (Vsup)18V
Supply Voltage-Min (Vsup)3V
Number of Channels2Channels
Power Dissipation20W
Supply Current-Max65mA
Output Power7W
Supply TypeSingle
Bandwidth20 kHz
Product Attribute Attribute Value
Voltage Gain26dB
Power Supply Rejection Ratio (PSRR)56dB
Gain26 dB
Max Output Power7W
Max Output Power x Channels @ Load7W x 2 @ 8 Ω
Harmonic Distortion10%
Load Impedance8Ohm
FeaturesMute, Short-Circuit and Thermal Protection, Standby
Width3.35mm
Length19.85mm
Height11mm
RoHS StatusROHS3 Compliant
Radiation HardeningNo
REACH SVHCNo SVHC
Lead FreeLead Free
0 Products View Similar

TDA7266SA Block and Application Diagram

The following figure shows TDA7266SA Block and Application Diagram.

Block and Application Diagram

TDA7266SA PC Board Component Layout

The following figure is TDA7266SA PC Board Component Layout.

PC Board Component Layout

TDA7266SA Alternatives

Part Number Description Manufacturer
TDA7294VCONSUMER CIRCUITS 100 V, 100 W DMOS audio amplifier with mute and standby STMicroelectronics
TDA7481CONSUMER CIRCUITS 18W, 1 CHANNEL, AUDIO AMPLIFIER, PZFM15, MULTIWATT-15 STMicroelectronics
TDA7266MACONSUMER CIRCUITS 7W, 1 CHANNEL, AUDIO AMPLIFIER, PSFM9, SIP-9 STMicroelectronics
TDA7266MCONSUMER CIRCUITS 7 W mono bridge amplifier STMicroelectronics
TDA7266SCONSUMER CIRCUITS 5W, 2 CHANNEL, AUDIO AMPLIFIER, PZFM15, MULTIWATT-15 STMicroelectronics
TDA7482CONSUMER CIRCUITS 25W, 1 CHANNEL, AUDIO AMPLIFIER, PZFM15, MULTIWATT-15 STMicroelectronics
TDA7296VCONSUMER CIRCUITS 60W, 1 CHANNEL, AUDIO AMPLIFIER, PZFM15, MULTIWATT-15 STMicroelectronics
TDA7266BCONSUMER CIRCUITS 10W, 2 CHANNEL, AUDIO AMPLIFIER, PZFM15, MULTIWATT-15 STMicroelectronics

TDA7266SA Applications

• LCD Monitor

• PC Motherboard

• TV

• Portable Radio



TDA7266SA Package

The Package of TDA7266SA is shown as follows.

Package

TDA7266SA Manufacturer

STMicroelectronics, headquartered in Plan-les-Ouates, Switzerland, near Geneva, is a multinational electronics and semiconductors firm. The company was created in 1987 by the merger of two government-owned semiconductor companies: "Thomson Semiconductors" in France and "SGS Microelettronica" in Italy. It is known as "ST" and is the most profitable semiconductor chip producer in Europe. While the corporate headquarters and EMEA regional offices of STMicroelectronics are in Geneva, the holding company, STMicroelectronics N.V., is based in the Netherlands.



Datasheet PDF

TDA7266SA Documents

Download datasheets and manufacturer documentation for TDA7266SA

Frequently Asked Questions

1.What is the working voltage of each pin of the color TV power amplifier TDA7266SA?
TDA7266SA each pin function and voltage: • Pin 1: The positive output of the left channel, 6.37 volts. • 2 feet: Left channel negative output, 6.4 volts. • 3 feet 13 feet are the power supply, 16 volts. • 4 feet: right channel input, 1.52 volts. • Feet 5, 10, and 11 are empty. • 6-pin mute, 4.2 volts (voltage during normal operation, 0 volts when mute). • 7-pin standby, 4.43 volts. • 8 and 9 feet are ground. • 12-pin left channel input, 1.52 volts. • 14-pin right channel positive output, 6.35 volts. • 15-pin right channel negative output, 6.35 volts.
2.Can TDA7266SA power amplifier block be replaced with 7266MSA?
If the working voltage is about 12V, it should be replaced, but if the supply voltage is 18V, it is best not to replace it. TDA7266SA has different tail numbers and different operating voltages, but the typical value is 11V. It is safer at this voltage, but the sound is lower than 18V. It can also be replaced with TDA7297. This is a dual 15W, which is louder than the original sound. If the power supply circuit can withstand it, this chip is better. The premise is that it can be bought.
3.Can TDA7266SA replace TDA7253?
The direct replacement is definitely impossible because the two chips are very different in function, pin, package and even working voltage; especially TDA7266SA is a bi-amp, and TDA7253 is a single-amp.
4. What is a dual bridge amplifier built specifically for LCD monitors?
TDA7266SA.
FAQ
1.What is the working voltage of each pin of the color TV power amplifier TDA7266SA?
TDA7266SA each pin function and voltage: • Pin 1: The positive output of the left channel, 6.37 volts. • 2 feet: Left channel negative output, 6.4 volts. • 3 feet 13 feet are the power supply, 16 volts. • 4 feet: right channel input, 1.52 volts. • Feet 5, 10, and 11 are empty. • 6-pin mute, 4.2 volts (voltage during normal operation, 0 volts when mute). • 7-pin standby, 4.43 volts. • 8 and 9 feet are ground. • 12-pin left channel input, 1.52 volts. • 14-pin right channel positive output, 6.35 volts. • 15-pin right channel negative output, 6.35 volts.
2.Can TDA7266SA power amplifier block be replaced with 7266MSA?
If the working voltage is about 12V, it should be replaced, but if the supply voltage is 18V, it is best not to replace it. TDA7266SA has different tail numbers and different operating voltages, but the typical value is 11V. It is safer at this voltage, but the sound is lower than 18V. It can also be replaced with TDA7297. This is a dual 15W, which is louder than the original sound. If the power supply circuit can withstand it, this chip is better. The premise is that it can be bought.
3.Can TDA7266SA replace TDA7253?
The direct replacement is definitely impossible because the two chips are very different in function, pin, package and even working voltage; especially TDA7266SA is a bi-amp, and TDA7253 is a single-amp.
4. What is a dual bridge amplifier built specifically for LCD monitors?
TDA7266SA.
