The TDA7269A is a class AB Dual Audio Power amplifier assembled in the Multi watt package, specially designed for high-quality sound applications as Hi-Fi music centers and stereo TV sets. This article is going to explain the datasheet, pinout, circuit diagram, and other details about the TDA7269A stereo amplifier. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and ICs in stock. Welcome your RFQ!

TDA7269A

50000In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $4.48906$4.49
10+ $4.23497$42.35
100+ $3.99525$399.53
500+ $3.7691$1884.55
1000+ $3.55576$3555.76
Unit Price:$4.48906
Subtotal: $4.49
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

What is TDA7269A?

The TDA7269A is a dual Audio Power Amplifier in class AB that is designed for high-quality sound applications such as Hi-Fi music centers and stereo TV sets. It has short-circuited and thermal overload protection built-in.

The maximum voltage value affordable on the TDA7269A amplifier IC is 22v and the operating voltage range is ±5v to ±20v, this is the range of voltage we need to set for the amplifier board using TDA7269A.

TDA7269A Pinout

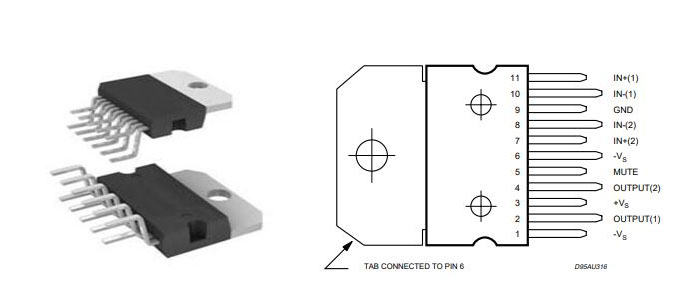

TDA7269A Pinout

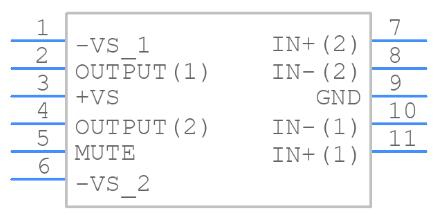

PIN NUMBER Pin name Pin description
Pin1 -VS Negative supply
Pin2 Output 1 The output of amp 1
Pin3 +Vs Positive supply
Pin4 Output 2 The output of amp 2
Pin5 Mute Mute
Pin6 -Vs Negative supply
Pin7 Input 2 (+) The non-inverting input of   amp 2
Pin8 Input 2 (-) Inverting input of amp   2
Pin9                      GND GND
Pin10 Input 1 (-) Inverting input of amp   1
Pin11 Input 1 (+) The non-inverting input of   amp 1
Tab or case – The tab is connected to   pin6 for grounding

TDA7269A CAD Model

TDA7269A Symbol

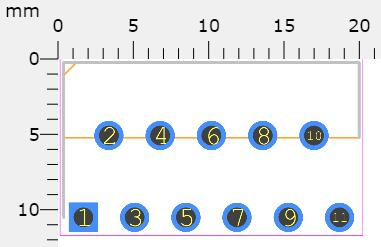

TDA7269A Footprint

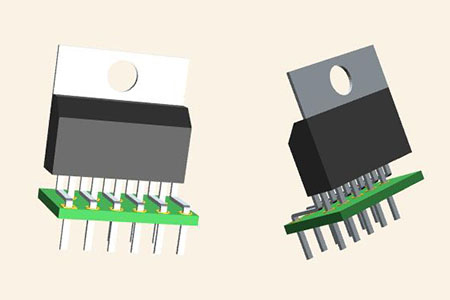

TDA7269A 3D Model

Specifications

TDA7269A Tech Specifications

STMicroelectronics TDA7269A technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA7269A.

Product Attribute Attribute Value
Lifecycle StatusACTIVE (Last Updated: 7 months ago)
Factory Lead Time6 Weeks
MountThrough Hole
Mounting TypeThrough Hole
Package / CaseMultiwatt-11 (Vertical, Bent and Staggered Leads)
Number of Pins11Pins
Operating Temperature0°C~70°C TA
PackagingTube
JESD-609 Codee3
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations11Terminations
ECCN CodeEAR99
TypeClass AB
Terminal FinishMatte Tin (Sn) - annealed
Max Power Dissipation40W
Voltage - Supply±5V~20V
Product Attribute Attribute Value
Terminal PositionZIG-ZAG
Number of Functions1Function
Terminal Pitch1.7mm
Base Part NumberTDA7269
Pin Count11
Output Type2-Channel (Stereo)
Number of Channels2Channels
Nominal Supply Current3A
Power Dissipation40W
Quiescent Current60mA
Output Power14W
Supply TypeDual
Input Offset Voltage (Vos)25mV
Bandwidth22 kHz
Voltage Gain80dB
Power Supply Rejection Ratio (PSRR)60dB
Gain80 dB
Product Attribute Attribute Value
Max Dual Supply Voltage20V
Max Output Power14W
Min Dual Supply Voltage5V
Dual Supply Voltage18V
Input Bias Current500nA
Max Output Power x Channels @ Load14W x 2 @ 8 Ω
Harmonic Distortion10%
Load Impedance8Ohm
FeaturesDepop, Mute, Short-Circuit and Thermal Protection, Standby
Height17.75mm
Length19.6mm
Width5mm
REACH SVHCNo SVHC
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

TDA7269A Features

  • WIDE SUPPLY VOLTAGE RANGE UP TO +20V

  • SPLIT SUPPLY

  • HIGH OUTPUT POWER 14+14W @THD = 10%, RL= 8Ω, VS =±16V

  • NO POP AT TURN-ON/OFF

  • MUTE (POP FREE)

  • STAND-BY FEATURE (LOW Iq)

  • SHORT CIRCUIT PROTECTION TO GND

  • THERMAL OVERLOAD PROTECTION

TDA7269A Equivalents

TDA7269, TDA7265, TDA7292, TDA7265B,

TDA7269A Power Supply

 TDA7269A Power

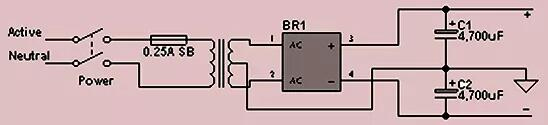

Because the TDA7269A's operational voltage range is 5 to 20 volts, we'll need an 18-0-18/ 2amp 18 volt AC transformer, as well as a bridge rectifier IC and a filter section.

The TDA7269A based amplifier power supply portion requires 20v at the power supply output.

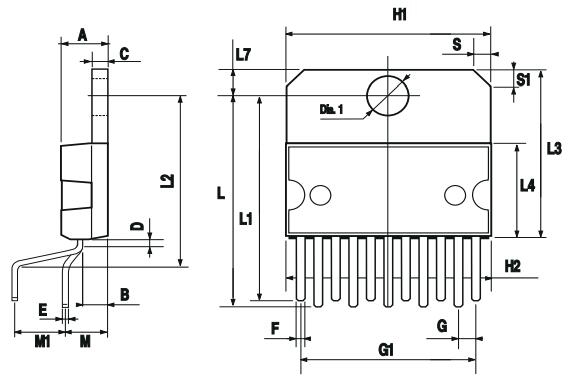

TDA7269A Dimensions

TDA7269A Manufacturer

STMicroelectronics is a globally recognized semiconductor company. They are dedicated to developing semiconductor solutions for various microelectronics applications. STMicroelectronics enjoys unrivaled silicon and system expertise, strong manufacturing strength, IP portfolio, and solid relationships with their strategic partners. Based on these advantages, STMicroelectronics has become a pioneer in System-on-Chip (SoC) technology and its products have a positive effect in realizing today's convergence trends.

Datasheet PDF

TDA7269A Documents

Download datasheets and manufacturer documentation for TDA7269A

Frequently Asked Questions

What is the use of TDA7269A?
The TDA7269A is a class AB Dual Audio Power amplifier assembled in the Multiwatt package, specially designed for high-quality sound applications as Hi-Fi music centers and stereo TV sets.
Are TDA7269 and TDA7269A the same?
The power of the two ICs is different, the one without A is 10w+10w, and the one with A is 14W+14W.
Can TDA2822 directly replace TDA7269?
A single power supply, a dual power supply, the package is not the same, the power difference is about 10 times, they can’t be replaced directly.
FAQ
What is the use of TDA7269A?
The TDA7269A is a class AB Dual Audio Power amplifier assembled in the Multiwatt package, specially designed for high-quality sound applications as Hi-Fi music centers and stereo TV sets.
Are TDA7269 and TDA7269A the same?
The power of the two ICs is different, the one without A is 10w+10w, and the one with A is 14W+14W.
Can TDA2822 directly replace TDA7269?
A single power supply, a dual power supply, the package is not the same, the power difference is about 10 times, they can’t be replaced directly.
