STMICROELECTRONICS TDA7293VAudio Power Amplifier, AB, 1 Channel, 100 W,12V to50V, Multiwatt, 15 Pins
The TDA7293V is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications.
TDA7293V
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $7.60355 | $7.6 |
| 10+ | $7.17316 | $71.73 |
| 100+ | $6.76713 | $676.71 |
| 500+ | $6.38408 | $3192.04 |
| 1000+ | $6.02272 | $6022.72 |
The TDA7293V is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications, such as home stereo, self powered loudspeakers and Topclass TV. Thanks to the wide voltage range and to the high output current capability it is able to supply the highest power into both 4-Ω and 8-Ω loads.
The built-in muting function with turn-on delay simplifies the remote operation avoiding on-off switching noises. Parallel mode is possible by connecting several devices and using pin11. High output power can be delivered to very low impedance loads, so optimizing the thermal dissipation of the system.

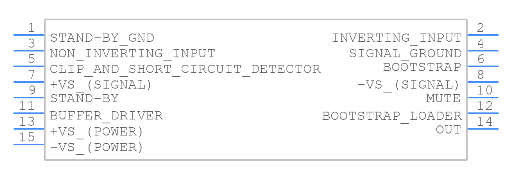

Symbol

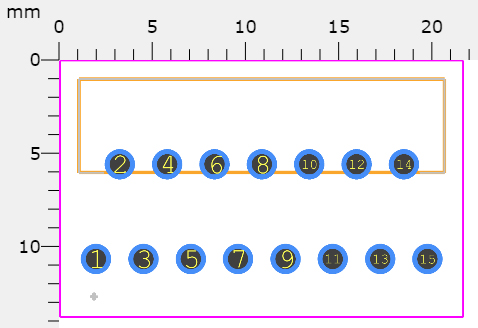

Footprint
3D Model
Multipower BCD technology
Very high operating voltage range (±50 V)
DMOS power stage
High output power (100 W into 8 Ω@ THD =10%, with VS = ±40 V)
Muting and stand-by functions
No switch on/off noise
Very low distortion
Very low noise
Short-circuit protected (with no input signal applied)
Thermal shutdown
Clip detector
Modularity (several devices can easily be connected in parallel to drive very low impedances)
STMicroelectronics TDA7293V technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA7293V.
STMicroelectronics TDA7293V technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA7293V.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 months ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | Multiwatt-15 (Vertical, Bent and Staggered Leads) | |
| Number of Pins | 15Pins | |
| Weight | 8.164663g | |
| Operating Temperature | 0°C~70°C TA | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 15Terminations | |
| ECCN Code | EAR99 | |
| Type | Class AB | |
| Max Power Dissipation | 50W | |
| Voltage - Supply | ±12V~50V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | ZIG-ZAG | |
| Number of Functions | 1Function | |
| Base Part Number | TDA7293 | |
| Pin Count | 15 | |
| Output Type | 1-Channel (Mono) | |
| Max Output Current | 10A | |
| Power Supplies | +-40V | |
| Number of Channels | 1Channel | |
| Nominal Supply Current | 10A | |
| Power Dissipation | 50W | |
| Quiescent Current | 50mA | |
| Output Power | 100W | |
| Supply Type | Dual | |
| Input Offset Voltage (Vos) | 10mV | |
| Bandwidth | 20 kHz | |
| Nominal Input Voltage | 90V | |
| Voltage Gain | 80dB | |
| Power Supply Rejection Ratio (PSRR) | 75dB |
| Product Attribute | Attribute Value | |
|---|---|---|
| Gain | 80 dB | |
| Max Dual Supply Voltage | 50V | |
| Max Output Power | 100W | |
| Min Dual Supply Voltage | 12V | |
| Dual Supply Voltage | 28V | |
| Input Bias Current | 1μA | |
| Max Output Power x Channels @ Load | 100W x 1 @ 4 Ω | |
| Harmonic Distortion | 10% | |
| Load Impedance | 4Ohm | |
| Features | Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby | |
| Height | 10.7mm | |
| Length | 19.6mm | |
| Width | 5mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
TDA7293V Functional Block Diagram

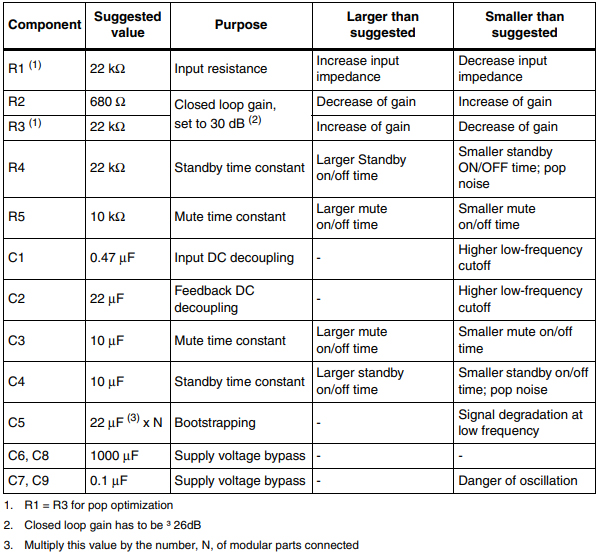

Choosing Alternative Component Values
The TDA7293V is a monolithic MOS power amplifier which can be operated with a 100-V supply (120 V with no signal applied) while delivering output currents up to ±6.5 A. This allows the use of this device as a very high-power amplifier (up to 180 W peak power with THD = 10% and RL = 4 Ω); the only drawback is the power dissipation, hardly manageable in the above power range.
Hi-fi and car-radio applications
Bridge configuration
Hi-fi/TV subwoofer realizations
Modular application
Bootstrap capacitor

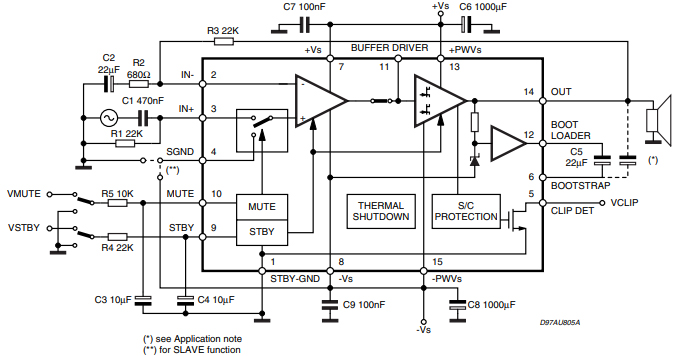

TDA7293V High-efficiency Applications Circuit

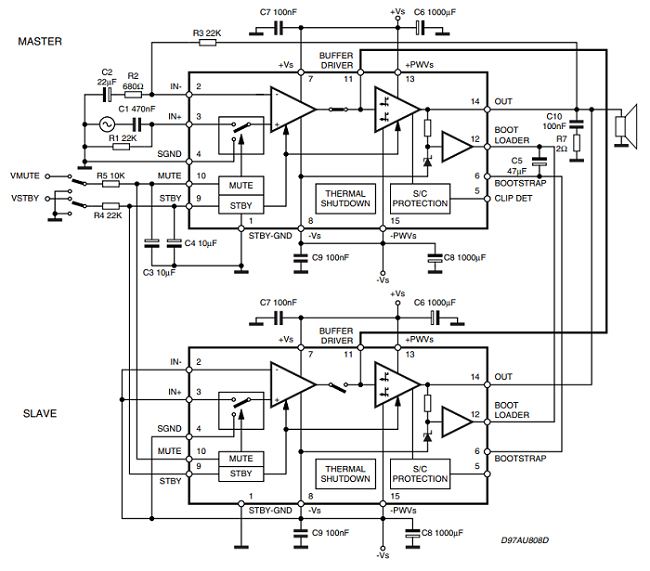

TDA7293V Modular Application Circuit

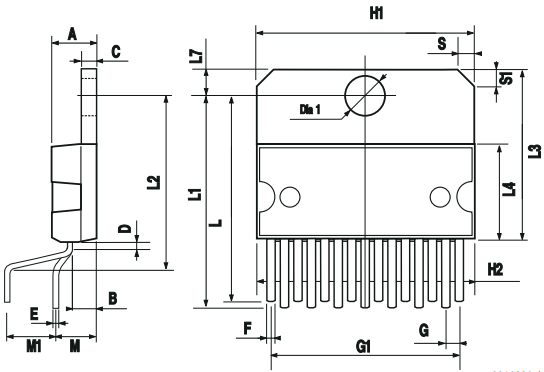

TDA7293V Package Outline

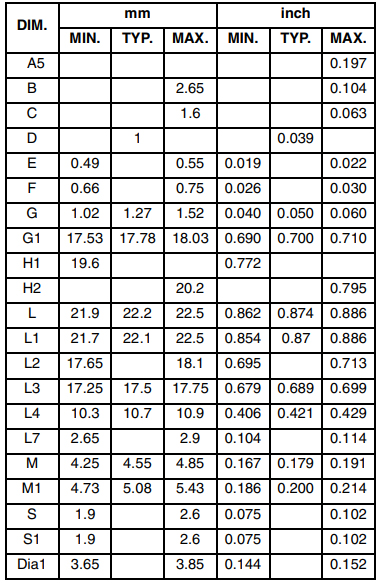

TDA7293V Mechanical Data
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics TDA7293V.
Download datasheets and manufacturer documentation for TDA7293V
