IC AMP AB MONO 100W 15MULTIWATT TDA7294 is a 100v-100w DMOS audio amplifier with MUTE/ST-BY. This article mainly covers pinout, power, datasheet, FAQ, and other details about TDA7294.
4838
Sep 10, 2021
Winfred Hobson
1
Simple & Super Power HiFi Heavy Bass Amplifier // How to Make Powerful Amplifier Using TDA 7294
IC AMP AB MONO 100W 15MULTIWATT
TDA7294 is a 100v-100w DMOS audio amplifier with MUTE/ST-BY. This article mainly covers pinout, power, datasheet, FAQ, and other details about TDA7294. Furthermore, there is a huge range of Semiconductors, Capacitors, Resistors, and Ics in stock. Welcome RFQ!
TDA7294V
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $6.3006 | $6.3 |
| 10+ | $5.94396 | $59.44 |
| 100+ | $5.60751 | $560.75 |
| 500+ | $5.29011 | $2645.06 |
| 1000+ | $4.99067 | $4990.67 |
| Pin No. | Pin Name | Pin Description |
| 1 | Stand-By GND | Stand-By GND, output gets connected to ground |
| 2 | Inverting input | The Inverting input |
| 3 | Non-Inverting input | The Non-Inverting input |
| 4 | SVR | Supply Voltage Rejection used for power supply ripple or noise rejection |
| 5 | N.C. | Not connected |
| 6 | Bootstrap | Used to step-up charge |
| 7 | '+Vs Supply | Positive supply |
| 8 | #NAME? | Negative supply |
| 9 | Stand-by | Standby control pin used for low power mode, output runs in low current mode |
| 10 | Mute | Audio is disabled of the output |
| 11 | N.C. | Not connected |
| 12 | N.C. | Not connected |
| 13 | '+Vs Power | Positive power supply |
| 14 | Out | Output pin |
| 15 | #NAME? | Negative power supply |
Symbol
Symbol
Footprint
Footprint
3D Model
3D Model
STMicroelectronics TDA7294V technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA7294V.
STMicroelectronics TDA7294V technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA7294V.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 months ago) | |
| Factory Lead Time | 6 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | Multiwatt-15 (Vertical, Bent and Staggered Leads) | |
| Number of Pins | 15Pins | |
| Weight | 8.164663g | |
| Manufacturer Package Identifier | Multiwatt-15 | |
| Operating Temperature | 0°C~70°C TA | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 15Terminations | |
| ECCN Code | EAR99 | |
| Type | Class AB | |
| Terminal Finish | Tin (Sn) | |
| Max Power Dissipation | 50W | |
| Voltage - Supply | ±10V~40V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | ZIG-ZAG | |
| Number of Functions | 1Function | |
| Base Part Number | TDA7294 | |
| Pin Count | 15 | |
| Output Type | 1-Channel (Mono) | |
| Number of Channels | 1Channel | |
| Nominal Supply Current | 30mA | |
| Power Dissipation | 50W | |
| Output Current | 10A | |
| Quiescent Current | 30mA | |
| Output Power | 100W | |
| Output Current per Channel | 10A | |
| Supply Type | Dual | |
| Input Offset Voltage (Vos) | 10mV | |
| Bandwidth | 20 kHz | |
| Voltage Gain | 80dB | |
| Power Supply Rejection Ratio (PSRR) | 75dB | |
| Gain | 80 dB | |
| Max Dual Supply Voltage | 40V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Output Power | 100W | |
| Min Dual Supply Voltage | 10V | |
| Dual Supply Voltage | 28V | |
| Input Bias Current | 500nA | |
| Max Junction Temperature (Tj) | 150°C | |
| Max Output Power x Channels @ Load | 100W x 1 @ 8 Ω | |
| Ambient Temperature Range High | 70°C | |
| Harmonic Distortion | 10% | |
| Load Impedance | 4Ohm | |
| Features | Depop, Mute, Short-Circuit and Thermal Protection, Standby | |
| Height | 21mm | |
| Length | 19.6mm | |
| Width | 5mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
TDA7294 Block Diagram
Very High Operating Voltage Range (±40v)
Demos Power Stage
High Output Power (Up To 100w Music Power)
Muting/Stand-By Functions
No Switch On/Off Noise
No Boucherot Cells
Very Low Distortion
Very Low Noise
Short Circuit Protection
Thermal Shutdown
The IC has a DMOS output stage and can deliver 100W RMS into an 8 Ohm speaker at +/-38VDC dual supply. The TDA7294 has low noise, low distortion, and good ripple rejection and can be operated from a wide range of supply voltages. The IC has built-in short circuit protection and thermal shutdown circuitries.
HI-FI
CAR-RADIO
Bridge Application Circuit
An audio class AB amplifier
Stereos system
Subwoofer
TDA7294 can be used in circuits requiring high power and high-efficiency amplification applications. R1 is the input resistance and its recommended value is 22k Ω. R2=680 Ω and R3= 22k Ω decide the loop gain of the amplifier. The R4=22k Ω and C4=10µF determine the standby ON/OFF time duration.

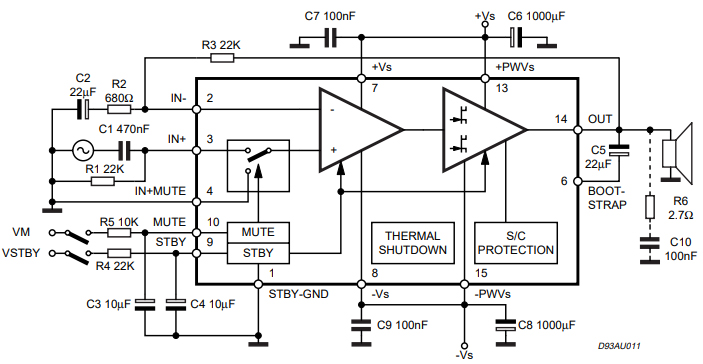

TDA7294 Circuit
R1 is the input resistance and its recommended value is 22k Ω. R2=680 Ω and R3= 22k Ω decide the loop gain of the amplifier. The R4=22k Ω and C4=10µF determine the stand-by ON/OFF time duration. The R5=10k Ω and C3=10µF are used for deciding the mute time constant. The input DC
The decoupling used is C1=0.47µF. C2=22mF is the feedback DC. C5=22mF Bootstrapping. C6, C8=1000mF, and C7, C9 0.1mF are used for supply voltage bypass.
STMicroelectronics (ST) group was established in June 1988 as a result of the merger of SGS Microelectronics of Italy and Thomson of France. In May 1998 SGS-Thomson Microelectronics changed its name to STMicroelectronics Limited.
It is the world's largest manufacturer of dedicated analog chips and power conversion chips, the world's largest supplier of industrial semiconductors and set-top box chips, and a world leader in discrete components, mobile phone camera modules, and automotive integrated circuits.
Download datasheets and manufacturer documentation for TDA7294V
