STMICROELECTRONICS TDA7492PAudio Power Amplifier, D, 2 Channel, 25 W, 8V to 26V, PowerSO, 36 Pins
The TDA7492P is a dual BTL class-D audio amplifier with single power supply, designed for LCD TVs and monitors.
TDA7492P
The TDA7492P is a dual BTL class-D audio amplifier with single power supply, designed for LCD TVs and monitors. Thanks to the high efficiency and exposed-paddown (EPD) package no heatsink is required.
Symbol

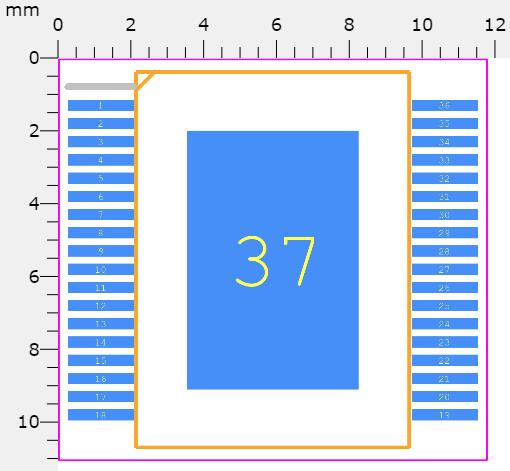

Footprint

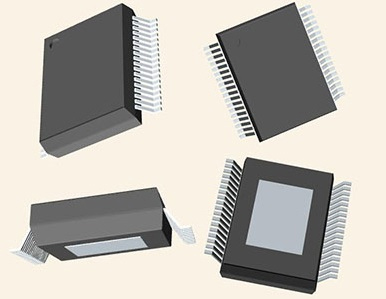

3D Model
25 W + 25 W continuous output power at THD = 10% with VCC = 20 V and RL = 8 W
Wide-range single-supply operation (8 - 26 V)
High efficiency (h = 90%)
Four selectable, fixed gain settings of nominally 21.6 dB, 27.6 dB, 31.1 dB and 33.6 dB
Differential inputs minimize common-mode noise
Standby and mute features
Short-circuit protection
Thermal overload protection
Externally synchronizable
ECOPACK®, environmentally-friendly package
STMicroelectronics TDA7492P technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA7492P.
STMicroelectronics TDA7492P technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA7492P.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 36-PowerFSOP (0.295, 7.50mm Width) | |
| Number of Pins | 36Pins | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 36Terminations | |
| ECCN Code | EAR99 | |
| Type | Class D |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Voltage - Supply | 8V~26V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Terminal Pitch | 0.5mm | |
| Base Part Number | TDA7492 | |
| Pin Count | 36 | |
| Output Type | 2-Channel (Stereo) | |
| Supply Voltage-Min (Vsup) | 8V | |
| Number of Channels | 2Channels | |
| Supply Current-Max | 35mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Power | 25W | |
| Bandwidth | 22 kHz | |
| Voltage Gain | 33.6dB | |
| Max Output Power | 25W | |
| Max Output Power x Channels @ Load | 25W x 2 @ 8 Ω | |
| Harmonic Distortion | 10% | |
| Load Impedance | 8Ohm | |
| Features | Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby | |
| Length | 10.3mm | |
| Width | 7.5mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant |
Bluetooth amplifier
Audio systems
Applications circuit for class-D amplifier

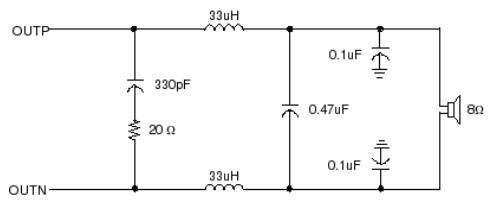

Typical LC filter for a 8 ohm speaker

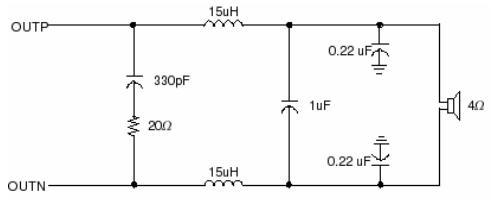

Typical LC filter for a 4 ohm speaker
TDA7492P Package Outline
TDA7492P Dimensions
