Big Power in the Palm of Your Hand - TDA7498E 160 160 watts
Audio Amplifiers 160W 160W Dual BTL ClassD Audio 20mV
The TDA7498E is a dual BTL class-D audio amplifier with a single power supply designed for home systems and active speaker applications.
TDA7498E
The TDA7498E is a dual BTL class-D audio amplifier with a single power supply designed for home systems and active speaker applications. It comes in a 36-pin PowerSSO package with exposed pad up (EPU) to facilitate mounting a separate heatsink.
Symbol
Footprint
160-W + 160-W output power at THD = 10% with RL = 4 Ω and VCC = 36 V
1 x 220 W output power mono parallel BTL at THD = 10% with RL = 3 Ω and VCC = 36 V
Wide-range single-supply operation (14 - 36 V)
High efficiency (η = 85%)
Parallel BTL function using the MODE pin
Four selectable, fixed gain settings of nominally 23.8 dB, 29.8 dB, 33.3 dB and 35.8 dB
Differential inputs minimize common-mode noise
Standby and mute features
Smart protection
Thermal overload protection
Small offset less than 20 mV
STMicroelectronics TDA7498E technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA7498E.
STMicroelectronics TDA7498E technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TDA7498E.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 8 months ago) | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 36-PowerFSOP (0.295, 7.50mm Width) | |
| Number of Pins | 36Pins | |
| Operating Temperature | 0°C~70°C TA | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 36Terminations | |
| ECCN Code | EAR99 | |
| Type | Class D | |
| Terminal Finish | Matte Tin (Sn) - annealed |
| Product Attribute | Attribute Value | |
|---|---|---|
| HTS Code | 8542.33.00.01 | |
| Voltage - Supply | 14V~36V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Terminal Pitch | 0.5mm | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | TDA7498 | |
| Pin Count | 36 | |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) | |
| Supply Voltage-Min (Vsup) | 14V | |
| Number of Channels | 2Channels | |
| Output Power | 220W |
| Product Attribute | Attribute Value | |
|---|---|---|
| Input Offset Voltage (Vos) | 20mV | |
| Bandwidth | 20 kHz | |
| Voltage Gain | 35.8dB | |
| Max Output Power | 220W | |
| Max Output Power x Channels @ Load | 220W x 1 @ 3 Ω; 160W x 2 @ 4 Ω | |
| Harmonic Distortion | 10% | |
| Features | Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby | |
| Length | 10.3mm | |
| Height Seated (Max) | 2.45mm | |
| Width | 7.5mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant |

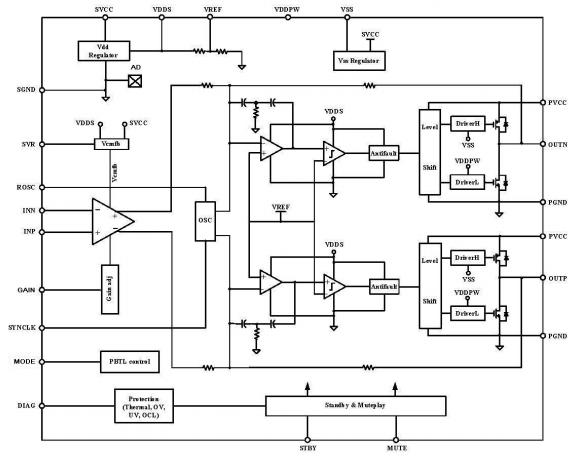

Stereo and Mono BTL Operation Selection using the MODE Pin
The TDA7498E can be used in stereo applications or mono BTL applications. Connecting the MODE pin to the VDDS pin configures the device in mono BTL. The output of the two channels can be paralleled. When the MODE pin is connected to ground or floating (pulled down internally) the device works as a stereo amplifier.
Gain Setting
The gain of the TDA7498E is set by GAIN (pin 30).
Smart Protection
To avoid dynamic impedance drop, two overcurrent thresholds are set. The first threshold is for the overcurrent limit. The device limits the output current to the first threshold but does not shut down the PWM outputs.
If the device is shorted and at least one of the two output currents reaches the second threshold, the device is shut down immediately. The device will recover automatically when the fault is removed from the BTL outputs.
TDA7498E Package Outline
TDA7498E Mechanical Data
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics TDA7498E.
Download datasheets and manufacturer documentation for TDA7498E
