TDA8356 Power Circuit: Equivalent, Pinout, Datasheet

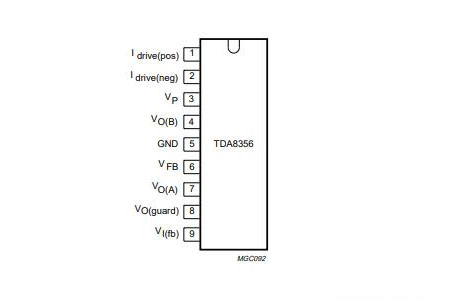

TDA8356 Pinout

The TDA8356  is a power circuit for use in 90  ° and 110  ° colour deflection systems for field frequencies of 50 to 120Hz. The circuit provides a DC  driven vertical deflection output circuit.  operating as a highly efficient class G system.

•Few external components

• Highly efficient fully DC-coupled vertical output bridge circuit

• Vertical flyback switch

• Guard circuit

• Protection against

 – Short-circuit of the output pins (7 and 4)

– Short-circuit of the output pins to VP.

• Temperature protection

• High EMC immunity because of common-mode inputs

• A guard signal in zoom mode.

The following circuit shows the block diagram of TDA8356

TDA8356 Block Diagram

TDA8356 Application Circuit is shown below

TDA8356 Application Circuit

TDA8356 Package
