How to Make Audio Amplifier Using TEA2025 IC
STMICROELECTRONICS TEA2025BAudio Power Amplifier, AB, 2 Channel, 4.7 W, 3V to 12V, DIP, 16 Pins
TEA2025 is a stereo audio amplifier. This article enforces circuit, datasheet, pinout, equivalent, and other details about the TEA2025 audio amplifier. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and ICs in stock. Welcome your RFQ!
TEA2025B

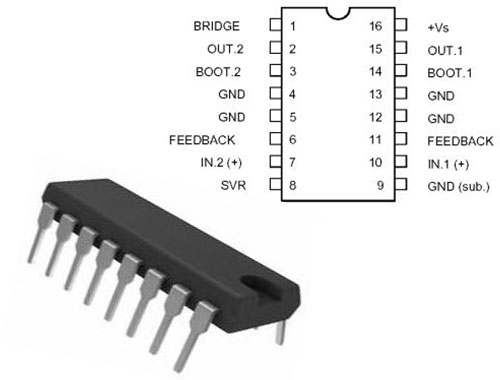

TEA2025 Pinout

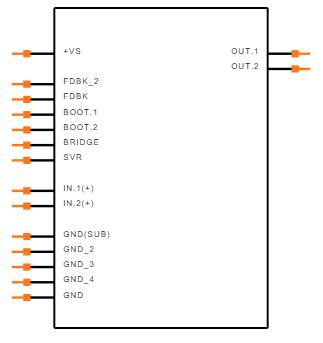

TEA2025 Symbol

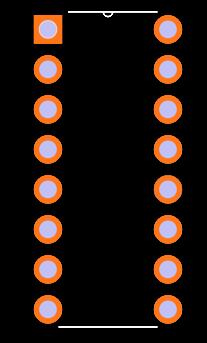

TEA2025 Footprint
The TEA2025 is a monolithic integrated audio amplifier IC in a 16-pin plastic dual in-line package. It is originally designed for portable cassette players and radios, but it can be used to make a pretty decent stereo audio amplifier for an iPod or mp3 player.
STMicroelectronics TEA2025B technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TEA2025B.
STMicroelectronics TEA2025B technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TEA2025B.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 16-DIP (0.300, 7.62mm) | |
| Number of Pins | 16Pins | |
| Weight | 4.535924g | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 | |
| Type | Class AB | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Max Operating Temperature | 150°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Operating Temperature | 0°C | |
| Voltage - Supply | 3V~12V | |
| Terminal Position | DUAL | |
| Number of Functions | 1Function | |
| Base Part Number | TEA2025 | |
| Pin Count | 16 | |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) | |
| Operating Supply Voltage | 9V | |
| Supply Voltage-Min (Vsup) | 3V | |
| Number of Channels | 2Channels | |
| Nominal Supply Current | 1.5A | |
| Quiescent Current | 35mA | |
| Output Power | 2.3W | |
| Supply Type | Single | |
| Voltage Gain | 51dB |
| Product Attribute | Attribute Value | |
|---|---|---|
| Power Supply Rejection Ratio (PSRR) | 46dB | |
| Gain | 51 dB | |
| Max Output Power | 4.7W | |
| Max Output Power x Channels @ Load | 4.7W x 1 @ 8 Ω; 2.4W x 2 @ 8 Ω | |
| Harmonic Distortion | 10% | |
| Load Impedance | 30kOhm | |
| Features | Depop, Thermal Protection | |
| Height | 6.35mm | |
| Length | 2.54mm | |
| Width | 6.35mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Dual or bridge connection modes
Few external components
Supply voltage 3 V to 15 V
High channel separation
Very low switch-on/off the noise
Max gain of 45 dB with adjustable external resistor
Soft clipping
Thermal protection
PO= 2 · 1 W, VS= 6 V, RL= 4 Ω
PO= 2 · 2.3 W, VS= 9 V, RL= 4 Ω
PO= 2 · 0.1 W, VS= 3 V, RL= 4 Ω

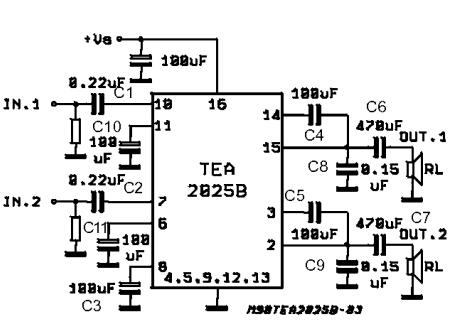

TEA2025 Application Circuit in Stereo Mode

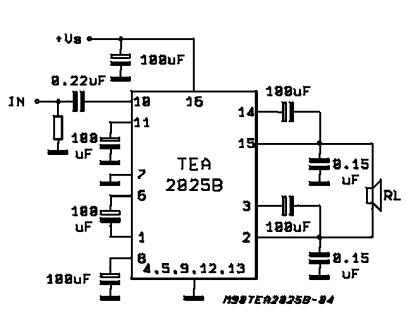

TEA2025 Application Circuit in Bridge Mode
The device has a maximum gain of 45 decibels. It can, however, be reduced by connecting the feedback pins (6 and 11 on the pin diagram) to the ground with an external RC series circuit. The datasheet advises against lowering the gain below 36 dB. Use R=0 and C=100 F (as specified in the application circuit above) between the feedback and ground to acquire the highest gain.
The low cut-off frequency (fL) of the output signal depends upon the load resistance (speaker, RL) and the output capacitor 470 µF. If the speaker resistance is 4, the low cut-off frequency will be,
fL = 1/(2? CRL) = 80 Hz

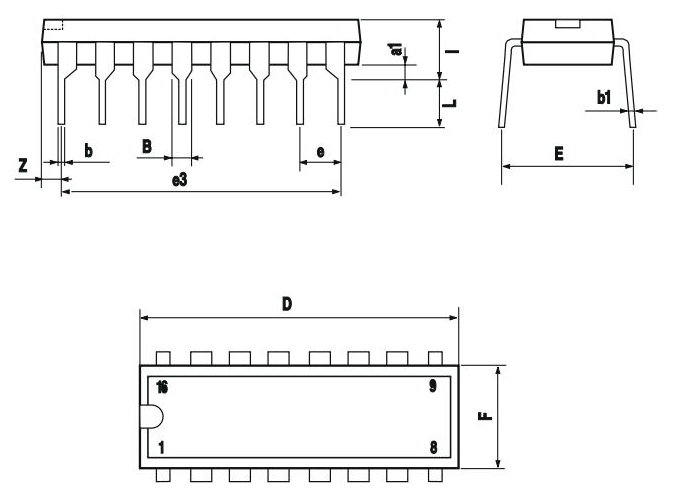

TEA2025 Dimensions
STMicroelectronics is a globally recognized semiconductor company. They are dedicated to developing semiconductor solutions for various microelectronics applications. STMicroelectronics enjoys unrivaled silicon and system expertise, strong manufacturing strength, IP portfolio, and solid relationships with their strategic partners. Based on these advantages, STMicroelectronics has become a pioneer in System-on-Chip (SoC) technology and its products have a positive effect in realizing today's convergence trends.
Download datasheets and manufacturer documentation for TEA2025B
