The Guide to PIC16F1503 8-bit Microcontroller [FAQ]

The PIC16F1503 is a mid-range PIC16 family 8-bit powerful (200-millisecond instruction execution) but easy-to-program CMOS flash-based Microcontroller with powerful PIC®(RISC) architecture.

This PIC16F1503 microcontroller contains a 3.5kB addressable program memory size,128bytes of data memory size, 12 general-purpose I/O pins, two comparators, and one 8-channel 10-bit analog-to-digital (A/D) converter, and one 5-bit digital-to-analog (D/A) converter. The Microchip PIC16F1503  has a maximum operating frequency of 20MHz and a wide operating voltage range from 1.8 to 5.5V.

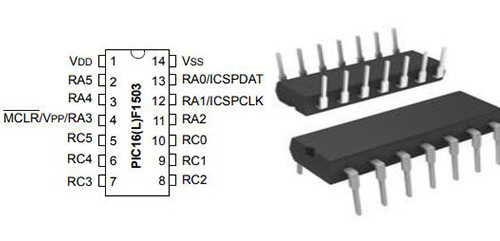

PIC16F1503 Pinout

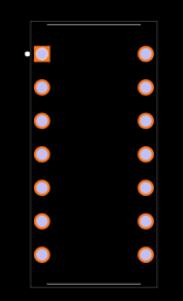

PIC16F1503 Footprint

PIC16F1503 3D Model

Microchip Technology PIC16F1503-E/P technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology PIC16F1503-E/P.

• 2x Configurable Logic Cell (CLC)

• Integrated Temperature Indicator

• 8 Channel 10-bit ADC with Voltage Reference

• 5-bit Digital to Analog Converter (DAC)

• MI2C, SPI

• 128 B of Non-volatile Data Storage

• Internal 16MHz oscillator

• 4x Standalone PWM

• 2x 8-bit Timers  (TMR0/TMR2)

• 1x 16-bit Timer (TMR1)

• Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels

• Flash Program Memory with self-read/write capability

• Complementary Waveform Generator  (CWG)

• Numerically Controlled Oscillator  (NCO)

• 25mA Source/Sink current I/O

• Extended Watchdog Timer (WDT)

• Enhanced Power-On/Off-Reset

• Low-Power Brown-Out Reset (LPBOR)

• Programmable Brown-out Reset (BOR)

• In-Circuit Serial Programming (ICSP)

• In-Circuit Debug using a Debug Header

• Wide Operation Voltage Variant ‘F’ (2.3V – 5.5V)

• eXtreme Low Power (XLP) ‘LF’ Variant (1.8V – 3.6V)

• Programmable logic

• Mixed-signal applications

• Smart appliances

• Industrial

• Automotive

• Security

• Consumer Electronics

• Motor Drive & Control

• Lighting, Medical

A wide range of peripherals, including analog and mixed-signal interfaces, are available on the PIC16F1503 microcontroller. Eight external channels on the inbuilt analog to digital converter (ADC) can be mapped to GPIO pins RA0, RA1, RA2, RA4, RC0, RC1, RC2, and RC3. Internally, it can be connected to a voltage reference, a temperature sensor, and a digital-to-analog converter (DAC).

The Microchip PIC16F1503 also includes a 5-bit DAC that can produce 32 different voltage values. The reference voltage can be set in software, and the output can be split into RA0 and RA2 pins. The output can be sent to the ADC or the internal comparators as well. There are two internal comparators, each with rail-to-rail inputs and hysteresis that may be programmed in software. Because this comparator is created using a digital technique, its performance is only minor - a maximum offset of 60mV and a response time of 400ns to 1.2us.

The ATmega328P is a low-power, CMOS 8-bit microcontroller based on the AVR® enhanced RISC  architecture.

The ATmega32U4 provides UART TTL (5V) serial communication, which is available on digital pins 0 (RX) and 1 (TX).

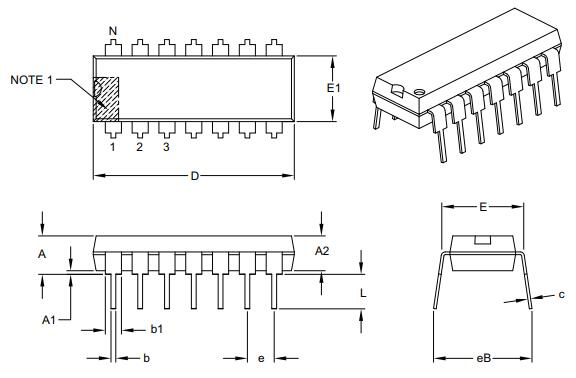

PIC16F1503 Package Outline
