The LSM6DSL Sensor:Datasheet, Pinout，Features and Electrical Connections

The LSM6DSL is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope performing at 0.65 mA in high-performance mode and enabling always-on low-power features for an optimal motion experience for the consumer.

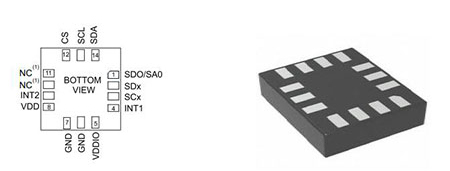

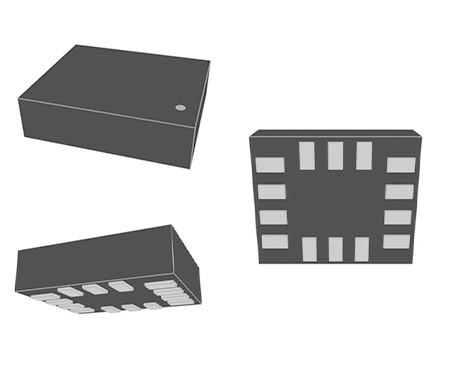

Symbol

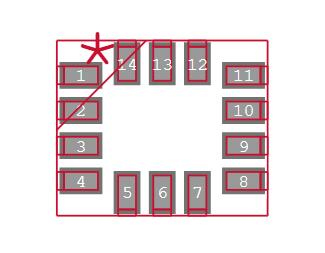

Footprint

3D Model

· Power consumption: 0.4 mA in combo normal mode and 0.65 mA in combo high-performance mode

· “Always-on” experience with low power consumption for both accelerometer and gyroscope

· Smart FIFO up to 4 kbyte based on features set

· Android M compliant

· Hard, soft ironing for external magnetic sensor corrections

· ±2/±4/±8/±16 g full scale

· ±125/±250/±500/±1000/±2000 dps full scale

· Analog supply voltage: 1.71 V to 3.6 V

· Independent IOs supply (1.62 V)

· Compact footprint, 2.5 mm x 3 mm x 0.83 mm

· SPI & I2C serial interface with main processor data synchronization feature

· Pedometer, step detector and step counter

· Significant motion and tilt function

· Standard interrupts: free-fall, wakeup, 6D/4D orientation, click and double-click

· Embedded temperature sensor

· ECOPACK®, RoHS and “Green” compliant

STMicroelectronics LSM6DSLTR technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LSM6DSLTR.

·  Motion tracking and gesture detection

· Collecting sensor data

· Indoor navigation

· IoT and connected devices

· Intelligent power saving for handheld devices

· Vibration monitoring and compensation
