THS4631 is high-voltage, high slew rate, wideband FET-input operational amplifier.This article mainly introduce its price, alternatives, datasheet and other detailed information about Texas Instruments THS4631.
THS4631 Op-Amp : Price, Alternatives, Datasheet
IC OPAMP GP 1 CIRCUIT 8SOIC THS4631 is high-voltage, high slew rate, wideband FET-input operational amplifier.
133
Jul 21, 2021
Janice Daniell
THS4631D
15000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $9.43739 | $9.44 |
| 10+ | $8.9032 | $89.03 |
| 100+ | $8.39925 | $839.93 |
| 500+ | $7.92382 | $3961.91 |
| 1000+ | $7.4753 | $7475.3 |
Unit Price:$9.43739
Subtotal: $9.44
Quick Links
THS4631 Description
THS4631 is a high-speed FET input operational amplifier designed for applications that require broadband operation, high input impedance and high power supply voltage. By providing 210 MHz gain bandwidth product, ±15 V power supply operation and 100 pA input bias current, THS4631 can achieve wideband transimpedance gain and large output signal swing at the same time. The fast 1000 V/μs slew rate allows fast settling time and good harmonic distortion at high frequencies. Low current and voltage noise allow amplifying extremely low-level input signals while still maintaining a large signal-to-noise ratio. THS4631 adopts 8-pin SOIC (D), and adopts 8-pin SOIC (DDA) and MSOP (DGN) in PowerPAD™ package.

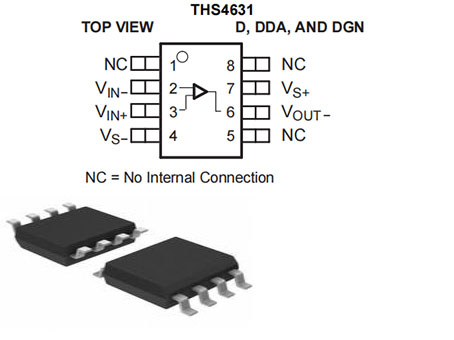

THS4631 Pinout
THS4631 CAD Model

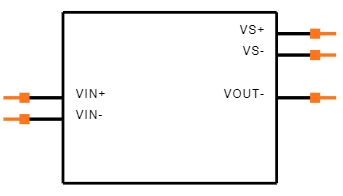

Symbol

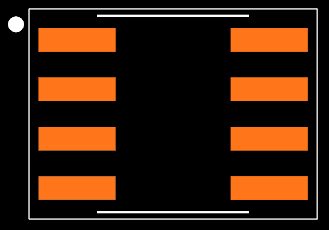

Footprint

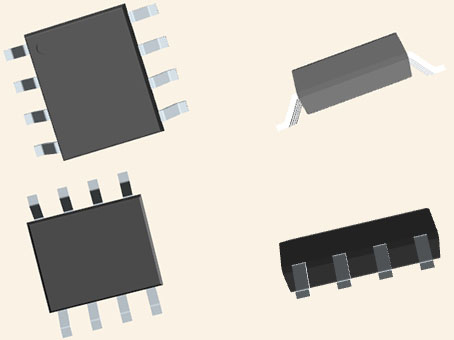

3D Model
THS4631 Features
★ High bandwidth:
325 MHz unity gain
210 MHz gain bandwidth product
★ High conversion rate:
900 V/µs (G = 2)
1000 V/µs (G = 5)
★ -76 dB low distortion, SFDR at 5 MHz
★ Maximum input bias current: 100 pA
★ Input voltage noise: 7 nV/√Hz
★ Maximum input offset voltage: 500 µV at 25°C
★ Low offset drift: 2.5 µV/°C
★ Input impedance: 109 || 3.9 pF
★ Wide power supply range: ± 5 V to ± 15 V
★ High output current: 95 mA
Specifications
Texas Instruments THS4631D technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments THS4631D.
THS4631D Tech Specifications
THS4631D Tech Specifications
Texas Instruments THS4631D technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments THS4631D.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 3 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Surface Mount | YES | |
| Number of Pins | 8Pins | |
| Weight | 75.891673mg | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Max Power Dissipation | 1.1W | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Functions | 1Function | |
| Supply Voltage | 15V | |
| Base Part Number | THS4631 | |
| Pin Count | 8 | |
| Number of Channels | 1Channel | |
| Operating Supply Current | 11.5mA | |
| Nominal Supply Current | 13mA | |
| Power Dissipation | 1.1W | |
| Slew Rate | 1000V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | General Purpose | |
| Common Mode Rejection Ratio | 86 dB | |
| Current - Input Bias | 50pA | |
| Voltage - Supply, Single/Dual (±) | 10V~30V ±5V~15V | |
| Output Current per Channel | 98mA | |
| Input Offset Voltage (Vos) | 500μV | |
| Neg Supply Voltage-Nom (Vsup) | -15V | |
| Unity Gain BW-Nom | 210000 kHz | |
| Voltage Gain | 80dB | |
| Average Bias Current-Max (IIB) | 0.002μA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Power Supply Rejection Ratio (PSRR) | 85dB | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Voltage - Input Offset | 260μV | |
| Low-Bias | YES | |
| Micropower | NO | |
| -3db Bandwidth | 325MHz | |
| Programmable Power | NO | |
| Dual Supply Voltage | 9V | |
| Max I/O Voltage | 500μV | |
| Height | 1.75mm | |
| Length | 4.9mm | |
| Width | 3.91mm | |
| Thickness | 1.58mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

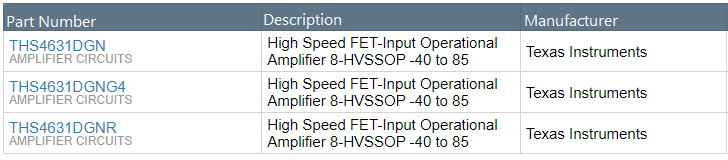

THS4631 Alternatives
THS4631 Applications
★Active Filtering
★High-Impedance Buffer
★Current-DAC Output Buffer
★High-Speed Signal Integrator
★Wideband Photodiode Amplifier
★Test and Measurement Systems
★High-Speed Transimpedance Gain Stage

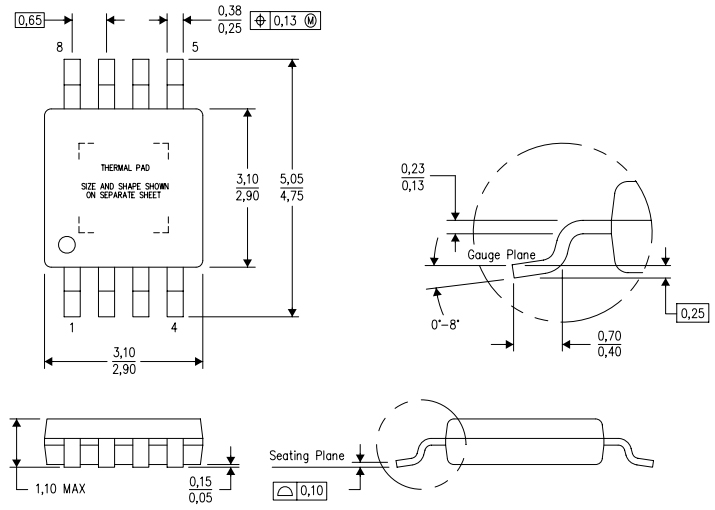

THS4631 Package
THS4631 Manufacturer
Texas Instruments Incorporated (TI) is an American technology company headquartered in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally.[6] It is one of the top 10 semiconductor companies worldwide based on sales volume.The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue.TI also produces TI digital light processing technology and education technology products including calculators, microcontrollers and multi-core processors. The company holds 45,000 patents worldwide as of 2016.
Datasheet PDF
Download datasheets and manufacturer documentation for Texas Instruments THS4631D.
THS4631D Documents
THS4631D Documents
Download datasheets and manufacturer documentation for THS4631D
Datasheets
THS4631D-Texas-Instruments-datasheet-32750733.pdf
THS4631D-Texas-Instruments-datasheet-14881855.pdf
THS4631D-Texas-Instruments-datasheet-62297507.pdf
THS4631D-Texas-Instruments-datasheet-14137898.pdf
THS4631D-Texas-Instruments-datasheet-84910.pdf
PCN Assembly/Origin
Material Set Revision D 12/Mar/2014
