Transistors - Bipolar (BJT) - Single Trans Darlington NPN 60V 2A 3-Pin(3+Tab) TO-220 Tube
137
Nov 12, 2021
Buck Burns
Transistor tip-110
Transistors - Bipolar (BJT) - Single Trans Darlington NPN 60V 2A 3-Pin(3 Tab) TO-220 Tube
The TIP110 is a silicon epitaxial-based NPN transistor in monolithic Darlington configuration mounted in Jedec TO-220 plastic package. This article is going to introduce pinout, datasheet pdf, equivalents, circuit, and other detail about the TIP110 NPN transistor.
TIP110
The TIP110 is silicon epitaxial-based NPN transistors in monolithic Darlington configuration mounted in Jedec TO-220 plastic package. It is intended for use in medium power linear and switching applications.
TIP110 Internal Schematic
TIP110 Pinout
| Pin No | Pin Name |
| 1 | Base |
| 2 | Collector |
| 3 | Emitter |
| 4 | Case (Collector) |
TIP110 Footprint

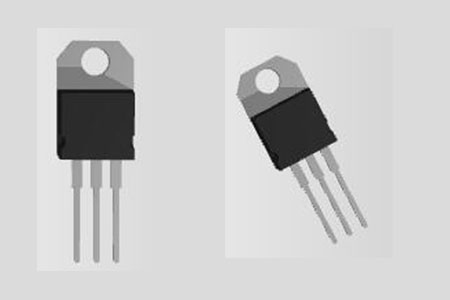

TIP110 3D Model
STMicroelectronics TIP110 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TIP110.
STMicroelectronics TIP110 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TIP110.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Weight | 4.535924g | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 60V | |
| Collector-Emitter Saturation Voltage | 2.5V | |
| Number of Elements | 1 Element | |
| hFEMin | 1000 | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Voltage - Rated DC | 60V | |
| Max Power Dissipation | 50W | |
| Current Rating | 2A | |
| Base Part Number | TIP110 | |
| Pin Count | 3 | |
| Polarity | NPN | |
| Element Configuration | Single | |
| Power Dissipation | 2W | |
| Transistor Application | SWITCHING | |
| Transistor Type | NPN - Darlington | |
| Collector Emitter Voltage (VCEO) | 60V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Collector Current | 2A | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 1A 4V | |
| Current - Collector Cutoff (Max) | 2mA | |
| JEDEC-95 Code | TO-220AB | |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 8mA, 2A | |
| Collector Base Voltage (VCBO) | 60V | |
| Emitter Base Voltage (VEBO) | 5V | |
| Height | 15.75mm | |
| Length | 10.4mm | |
| Width | 4.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
High DC Current Gain - hFE = 2500 (typ) @ IC = 1.0 Adc
Collector-Emitter Sustaining Voltage @ 30 mAVCEO(sus) = 60 Vdc (Min) TIP110 , TIP115 VCEO(sus) = 80 Vdc (Min) TIP111, TIP116VCEO(sus) = 100 Vdc (Min) TIP112, TIP117
Low Collector-Emitter Saturation VoltageVCE(sat) = 2.5 Vdc (Max) @ IC= 2.0 Adc= 4.0 Vdc (Max) @ IC= 5.0 Adc
Monolithic Construction with Built-In Base-Emitter Shunt Resistors
Compact TO-220 AB Package
Pb-Free Packages are Available
General–Purpose Amplifier
Low–Speed Switching
Medium Power Linear
TIP100, TIP101, TIP102, TIP105, TIP106, TIP107, TIP115

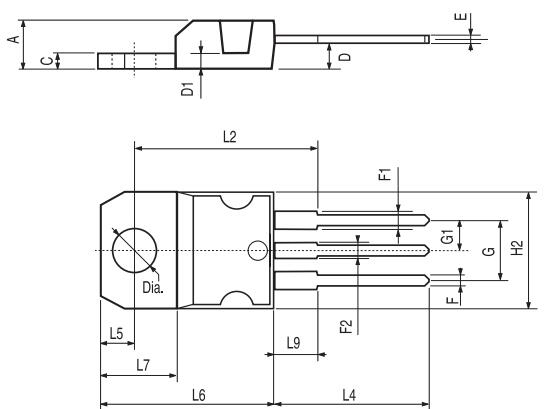

TIP110 Package Outline
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics TIP110.
Download datasheets and manufacturer documentation for TIP110
