Transistors - Bipolar (BJT) - Single TRANS PNP DARL 100V 2A TO-220 TIP117 is a complementary silicon power Darlington transistor.
60
Nov 13, 2021
King Cocker
TIP117
Transistors - Bipolar (BJT) - Single TRANS PNP DARL 100V 2A TO-220
TIP117 is a complementary silicon power Darlington transistor. This article is going to discuss pinout, datasheet pdf, equivalents, and other details about the TIP117 transistor.
TIP117
The TIP117 is a silicon epitaxial-base PNP transistor in a monolithic Darlington configuration mounted in Jedec TO-220 plastic package. It is intended for use in medium power linear and switching applications.

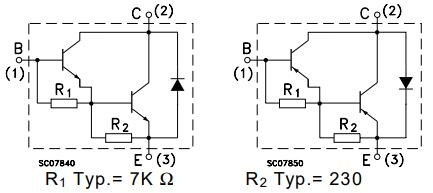

TIP117 Internal Schematic

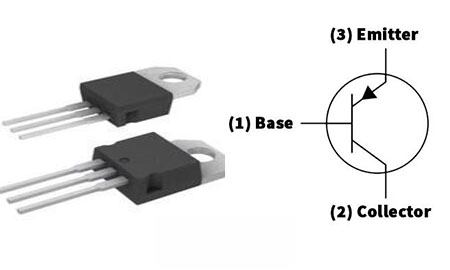

| Pin No | Pin Name |
| 1 | Base |
| 2 | Collector |
| 3 | Emitter |
| 4 | Case (Collector) |

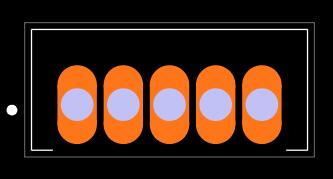

TIP117 Footprint

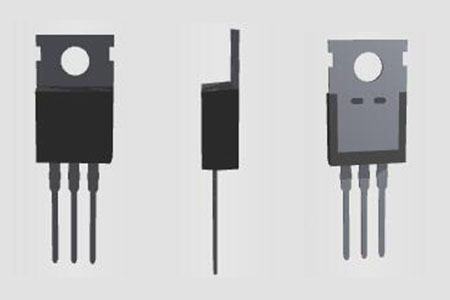

TIP117 3D Model
STMicroelectronics TIP117 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TIP117.
STMicroelectronics TIP117 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TIP117.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Weight | 4.535924g | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 100V | |
| Collector-Emitter Saturation Voltage | 2.5V | |
| Number of Elements | 1 Element | |
| hFEMin | 1000 | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Voltage - Rated DC | -100V | |
| Max Power Dissipation | 2W | |
| Current Rating | -2A | |
| Base Part Number | TIP117 | |
| Pin Count | 3 | |
| Polarity | PNP | |
| Element Configuration | Single | |
| Power Dissipation | 50W | |
| Power - Max | 2W | |
| Transistor Application | SWITCHING | |
| Transistor Type | PNP - Darlington |
| Product Attribute | Attribute Value | |
|---|---|---|
| Collector Emitter Voltage (VCEO) | 100V | |
| Max Collector Current | 2A | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 1A 4V | |
| Current - Collector Cutoff (Max) | 2mA | |
| JEDEC-95 Code | TO-220AB | |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 8mA, 2A | |
| Collector Base Voltage (VCBO) | 100V | |
| Emitter Base Voltage (VEBO) | 5V | |
| Height | 9.15mm | |
| Length | 10.4mm | |
| Width | 4.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
STMicroelectronics PREFERRED
Sales types
Complementary PNP - NPN devices
Monolithic Darlington
Configuration
Integrated antiparallel
Collector-emitter diode
Monolithic Construction with Built-in Base–Emitter Shunt Resistors
Type Designator: TIP117
Material of Transistor: Si
Polarity: PNP
TIP100, TIP101, TIP102, TIP105, TIP106, TIP107, TIP110, TIP112
Darlington
General–Purpose Amplifier
Linear and Switching Industrial Equipment

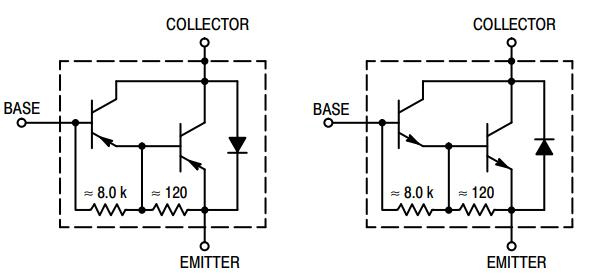

TIP117 darlington circuit schematic

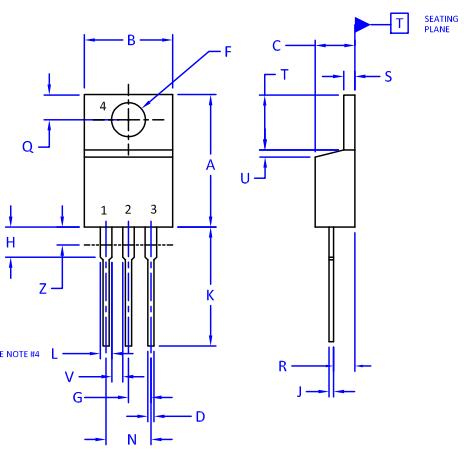

TIP117 Package Dimensions
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for TIP117
