Transistors - Bipolar (BJT) - Single TRANS PNP DARL 60V 5A TO-220 The TIP125 is a silicon Epitaxial-Base PNP power transistor. This post will cover its datasheet, pinout, circuit, equivalent and more details about TIP125.
2241
Dec 16, 2021
Elvis Meredith
Using the TIP120 & TIP125 Darlington Transistors with Arduino
Transistors - Bipolar (BJT) - Single TRANS PNP DARL 60V 5A TO-220
The TIP125 is a silicon Epitaxial-Base PNP power transistor. This post will cover its datasheet, pinout, circuit, equivalent and more details about TIP125.
TIP125
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.04148 | $1.04 |
| 10+ | $0.98253 | $9.83 |
| 100+ | $0.92691 | $92.69 |
| 500+ | $0.87445 | $437.23 |
| 1000+ | $0.82495 | $824.95 |
TIP125 Symbol

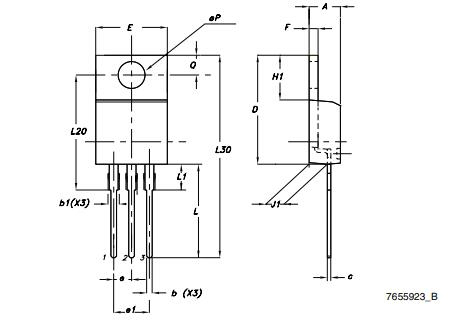

TIP125 Footprint
TIP125 3D Model
TIP125 is manufactured in planar technology with a “base island” layout and monolithic Darlington configuration. The resulting transistors show exceptional high gain performance coupled with very low saturation voltage.
■ Low collector-emitter saturation voltage
■ Complementary NPN - PNP transistors
■ General purpose linear and switching
The equivalents for TIP125:
TIP100
TIP101
TIP102
TIP105
TIP106
TIP107
TIP110
TIP120
The following figure shows the internal schematic diagram of TIP125
TIP125 Internal Schematic Diagrams

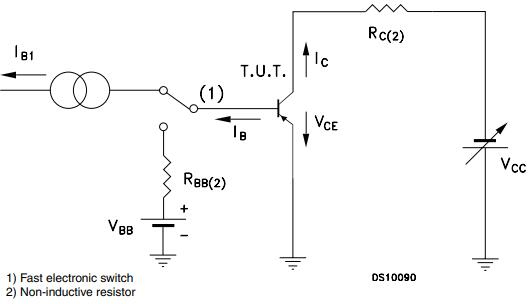

The TIP125 Test Circuit is shown below
TIP125 Resistive load switching for NPN type
TIP125 Resistive load switching for PNP type
STMicroelectronics TIP125 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TIP125.
STMicroelectronics TIP125 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TIP125.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 8 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Weight | 4.535924g | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 60V | |
| Collector-Emitter Saturation Voltage | 2V | |
| Number of Elements | 1 Element | |
| hFEMin | 1000 | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Voltage - Rated DC | -60V | |
| Max Power Dissipation | 65W | |
| Current Rating | -5A | |
| Base Part Number | TIP125 | |
| Pin Count | 3 | |
| Polarity | PNP | |
| Element Configuration | Single | |
| Power Dissipation | 65W | |
| Power - Max | 2W | |
| Transistor Application | SWITCHING | |
| Transistor Type | PNP - Darlington | |
| Collector Emitter Voltage (VCEO) | 60V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Collector Current | 5A | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 3A 3V | |
| Current - Collector Cutoff (Max) | 500μA | |
| JEDEC-95 Code | TO-220AB | |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 20mA, 5A | |
| Collector Base Voltage (VCBO) | 60V | |
| Emitter Base Voltage (VEBO) | 5V | |
| VCEsat-Max | 4 V | |
| Height | 15.75mm | |
| Length | 10.4mm | |
| Width | 4.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivalled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics TIP125.
Download datasheets and manufacturer documentation for TIP125
