TIP142/TIP147 amplifier circuit
Transistors - Bipolar (BJT) - Single In a Pack of 5, STMicroelectronics TIP142 NPN Darlington Pair, 10 A 100 V HFE: 500, 3-Pin TO-247
The TIP142 is a complementary power Darlington transistor. This post will unlock more details about Tip142. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ.
TIP142
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.76008 | $2.76 |
| 10+ | $2.60385 | $26.04 |
| 100+ | $2.45646 | $245.65 |
| 500+ | $2.31742 | $1158.71 |
| 1000+ | $2.18624 | $2186.24 |

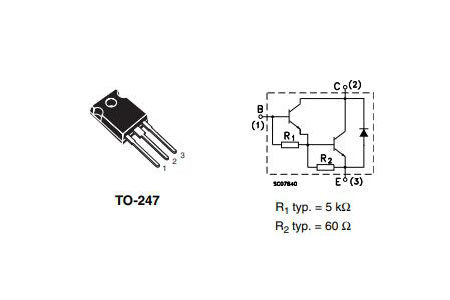

TIP142 Pinout
TIP142 Symbol
TIP142 Footprint

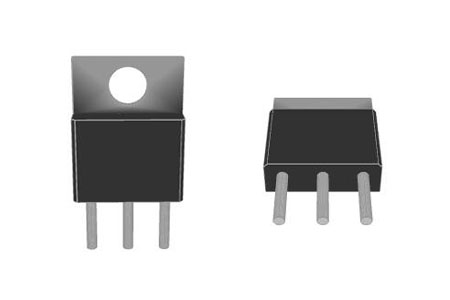

TIP142 3D Model
The TIP142 is manufactured in planar technology with a "base island” layout and monolithic Darlington configuration. The resulting transistors show exceptional high gain performance coupled with a very low saturation voltage.
Type: NPN
Collector-Emitter Voltage: 100 V
Collector-Base Voltage: 100 V
Emitter-Base Voltage: 5 V
Collector Current: 10 A
Collector Dissipation: 125 W
DC Current Gain (hfe): 1000
Operating and Storage Junction Temperature Range: -65 to +150 °C
Package: TO-247
Signal Processing
Power Management
Portable Devices
Consumer Electronics
Industrial
The Equivalent for TIP142
2SD1197
2SD2390
2SD2390-O
2SD2390-P
2SD2390-Y
BDV65B
BDV65BG
BDV67B
BDV67C
BDV67D
TIP142G
Resistive load switching test circuit (NPN type)
With 100Watt RMS power output at 8Ohm impedance and 150Watt RMS power output at 4Ohm impedance, the Power Amplifier is extremely powerful. The 200Watt 8Ohm power amplifier circuit can elevate 12Inch speakers, which are utilized for mid, midbass, and subwoofer.

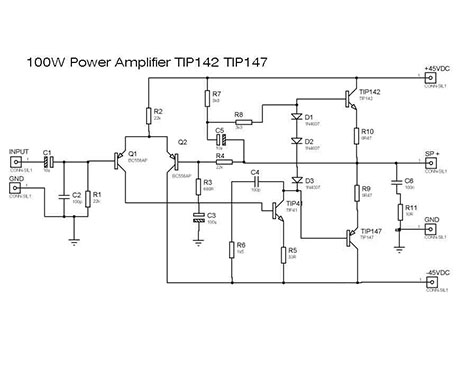

TIP142 TIP147 power amplifier circuit
TIP142 / TIP147 was utilized as the final transistor in the circuit above, and the transistor datasheet can be found at the datasheet file-base. The transistor has a stronger reinforcement due to its NPN / PNP Darlington architecture. I used the BC556AP PNP transistor and the TIP41 NPN transistor in the buffer and driver circuit. It is advised to install the cooler with the final transistor when installing the driver transistor (TIP41), and this is also true for the Thermo switch.
