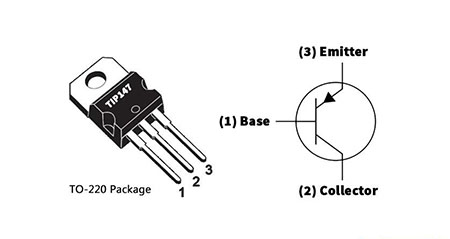

The TIP147 is a complementary power Darlington transistor.
It is manufactured in planar technology with a “base island” layout and monolithic Darlington configuration. The resulting transistors show exceptional high gain performance coupled with very low saturation voltage.
High DC Current Gain-
: hFE = 1000(Min)@ IC= -5A
Collector-Emitter Sustaining Voltage-
: VCEO(SUS) = -100V(Min)
Minimum Lot-to-Lot variations for robust device performance and reliable operation
Type Designator: TIP147
Material of Transistor: Si
Polarity: PNP
Linear And Switching Industrial Equipment
General Purpose Amplifier
Low-Frequency Switching
The equivalent for TIP147:
TIP100
TIP101
TIP102
TIP105
TIP106
TIP107
TIP110
TIP142
TIP147 Resistive load switching test circuit (PNP type)
STMicroelectronics TIP147 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TIP147.
STMicroelectronics TIP147 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TIP147.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 8 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-247-3 | |
| Number of Pins | 3Pins | |
| Weight | 9.071847g | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 100V | |
| Collector-Emitter Saturation Voltage | 2V | |
| Number of Elements | 1 Element | |
| hFEMin | 500 | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) | |
| Voltage - Rated DC | -100V | |
| Max Power Dissipation | 125W | |
| Current Rating | -10A | |
| Base Part Number | TIP147 | |
| Pin Count | 3 | |
| Polarity | PNP | |
| Element Configuration | Single | |
| Power Dissipation | 125W | |
| Transistor Application | SWITCHING | |
| Transistor Type | PNP - Darlington | |
| Collector Emitter Voltage (VCEO) | 100V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Collector Current | 10A | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 5A 4V | |
| Current - Collector Cutoff (Max) | 2mA | |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 40mA, 10A | |
| Collector Base Voltage (VCBO) | 100V | |
| Emitter Base Voltage (VEBO) | 5V | |
| VCEsat-Max | 3 V | |
| Height | 20.15mm | |
| Length | 15.75mm | |
| Width | 5.15mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
