TJA1051 CAN Transceiver: Features, Equivalent and Datasheet

Interface - Drivers, Receivers, Transceivers 8-SOIC (0.154, 3.90mm Width) 4.5V~5.5V -40°C~150°C 1.27mm TJA1051 Series 5.5 V 5 Mbit/s) High-speed CAN Transceiver - SOIC-8

2096

Dec 2, 2021

Berg Rossetti

Implementing partial networking: CAN Transceivers with Selective Wake & Advanced Diagnostics

Interface - Drivers, Receivers, Transceivers 8-SOIC (0.154, 3.90mm Width) 4.5V~5.5V -40°C~150°C 1.27mm TJA1051 Series 5.5 V 5 Mbit/s) High-speed CAN Transceiver - SOIC-8

The TJA1051 is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed CAN applications in the automotive industry, providing differential transmit and receive capability to (a microcontroller with) a CAN protocol controller. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.



TJA1051T/3/1J

43995In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $1.49975$1.5
10+ $1.41486$14.15
100+ $1.33477$133.48
500+ $1.25922$629.61
1000+ $1.18794$1187.94
Unit Price:$1.49975
Subtotal: $1.5
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

TJA1051 Pinout

The following figure is the diagram of TJA1051 pinout.

Pinout



           Pin                 Symbol                                                             Description
1 TXD transmit data input
2 GND ground
3 VCC supply voltage
4 RXD receive data output; reads out data from the bus lines
5 VIO supply voltage for I/O level adapter; TJA1051T/3 and TJA1051TK/3 only
6 CANL LOW-level CAN bus line
7 CANH HIGH-level CAN bus line
8 S Silent mode control input

Pin description

TJA1051 CAD Model

The followings are TJA1051 Symbol, Footprint, and 3D Model.

PCB Symbol

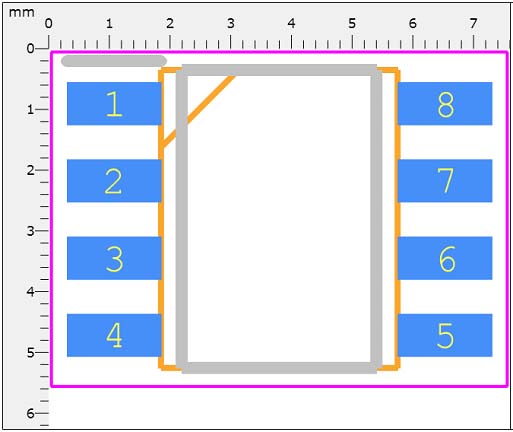

PCB Footprint

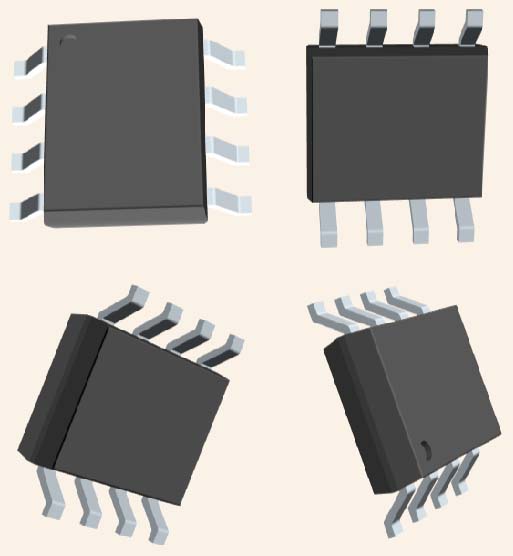

3D Model

TJA1051 Overview

The TJA1051 is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed CAN applications in the automotive industry, providing differential transmit and receive capability to (a microcontroller with) a CAN protocol controller. The TJA1051 belongs to the third generation of high-speed CAN transceivers from NXP Semiconductors, offering significant improvements over first- and second-generation devices such as the TJA1050. It offers improved ElectroMagnetic Compatibility (EMC) and ElectroStatic Discharge (ESD) performance, and also features: Ideal passive behavior to the CAN bus when the supply voltage is off; TJA1051T/3 and TJA1051TK/3 can be interfaced directly to microcontrollers with supply voltages from 3 V to 5 V. The TJA1051 implements the CAN physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5. This implementation enables reliable communication in the CAN FD fast phase at data rates up to 5 Mbit/s. These features make the TJA1051 an excellent choice for all types of HS-CAN networks, in nodes that do not require a standby mode with wake-up capability via the bus.

This article provides you with a basic overview of the TJA1051 CAN Transceiver, including its pin descriptions, features and specifications, etc., to help you quickly understand what TJA1051 is.

TJA1051 Features and Benefits

● General

   ◆ ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant

   ◆ Timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase

   ◆ Suitable for 12 V and 24 V systems

   ◆ Low ElectroMagnetic Emission (EME) and high ElectroMagnetic Immunity (EMI)

   ◆ VIO input on TJA1051T/3 and TJA1051TK/3 allows for direct interfacing with 3 V to 5 V microcontrollers (available in SO8 and very small HVSON8 packages respectively)

   ◆ EN input on TJA1051T/E allows the microcontroller to switch the transceiver to a very low-current Off mode

   ◆ Available in SO8 package or leadless HVSON8 package (3.0 mm × 3.0 mm) with improved Automated Optical Inspection (AOI) capability

   ◆ Dark green product (halogen free and Restriction of Hazardous Substances (RoHS) compliant)

   ◆ AEC-Q100 qualified

● Low-power management

   ◆ Functional behavior predictable under all supply conditions

   ◆ Transceiver disengages from the bus when not powered up (zero load)

● Protection

   ◆ High ElectroStatic Discharge (ESD) handling capability on the bus pins

   ◆ Bus pins protected against transients in automotive environments

   ◆ Transmit Data (TXD) dominant time-out function

   ◆ Undervoltage detection on pins VCC and VIO

   ◆ Thermally protected



Specifications

NXP USA Inc. TJA1051T/3/1J technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. TJA1051T/3/1J.

TJA1051T/3/1J Tech Specifications

NXP USA Inc. TJA1051T/3/1J technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. TJA1051T/3/1J.

Product Attribute Attribute Value
Factory Lead Time6 Weeks
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154, 3.90mm Width)
Surface MountYES
Operating Temperature-40°C~150°C
PackagingTape & Reel (TR)
Published2010
JESD-609 Codee4
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations8Terminations
Product Attribute Attribute Value
TypeTransceiver
Terminal FinishNickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Voltage - Supply4.5V~5.5V
Terminal PositionDUAL
Terminal FormGULL WING
Peak Reflow Temperature (Cel)NOT SPECIFIED
Number of Functions1Function
Supply Voltage5V
Terminal Pitch1.27mm
Time@Peak Reflow Temperature-Max (s)NOT SPECIFIED
Pin Count8
Product Attribute Attribute Value
JESD-30 CodeR-PDSO-G8
Data Rate5Mbps
ProtocolCANbus
Number of Drivers/Receivers1/1Drivers/Receiver
DuplexHalf
Receiver Hysteresis120mV
Length4.9mm
Height Seated (Max)1.75mm
Width3.9mm
RoHS StatusROHS3 Compliant
0 Products View Similar

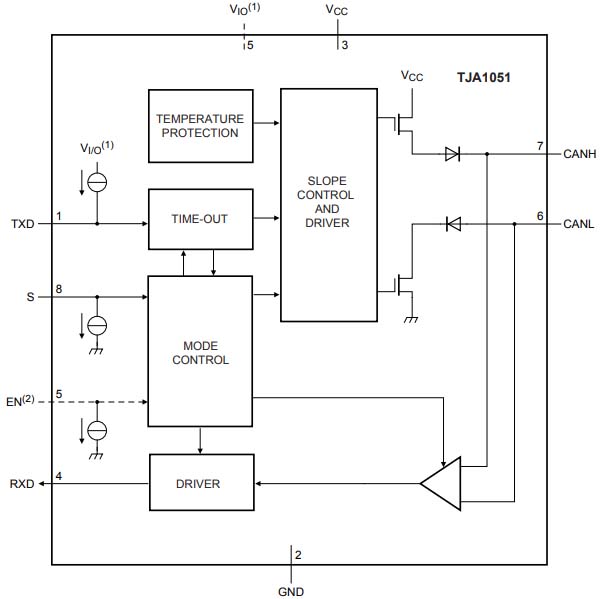

TJA1051 Functional Block Diagram

The following is the Block Diagram of TJA1051.

Block diagram

TJA1051 Equivalent

                Model number                  Manufacturer                                     Description
PCA82C251T/N3,118 NXP Semiconductors PCA82C251 - CAN transceiver for 24 V systems SOIC 8-Pin
PCA82C251U NXP Semiconductors IC DATACOM, INTERFACE CIRCUIT, UUC8, DIE-8, Network Interface
MCP2542FDT-E/MF Microchip Technology Inc DATACOM, INTERFACE CIRCUIT
935303566118 NXP Semiconductors DATACOM, INTERFACE CIRCUIT, PDSO8
MAX3053ASA Maxim Integrated Products Interface Circuit, 1-Trnsvr, BICMOS, PDSO8, SOIC-8
TJA1057T/1Z NXP Semiconductors Interface Circuit
MCP2542FD-H/MF Microchip Technology Inc DATACOM, INTERFACE CIRCUIT
935301677118 NXP Semiconductors DATACOM, INTERFACE CIRCUIT
TJA1049T NXP Semiconductors DATACOM, INTERFACE CIRCUIT, PDSO8, 3.90 MM, GREEN, PLASTIC, MS-012, SOT96-1, SOP-8
78Q8430-100IGTR/F Maxim Integrated Products Manchester Encoder/Decoder, PQFP100, 14 X 14 MM, ROHS COMPLIANT, LQFP-100

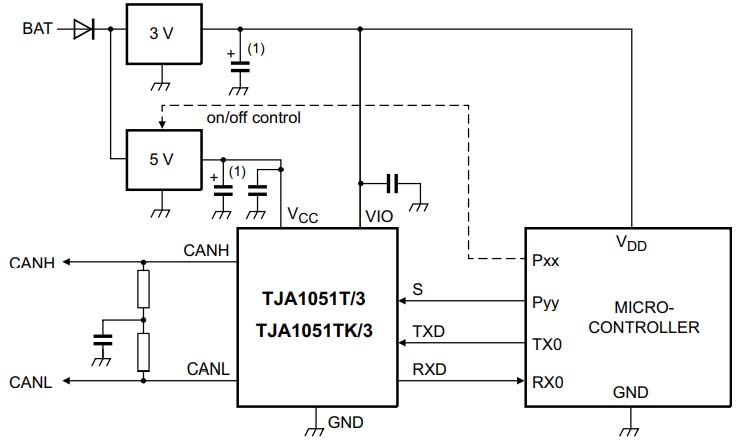

TJA1051 Application Diagram

The following is the Application Diagram of TJA1051.

Typical application

TJA1051 Test Information

The following figure is the diagram of TJA1051 Test Information.

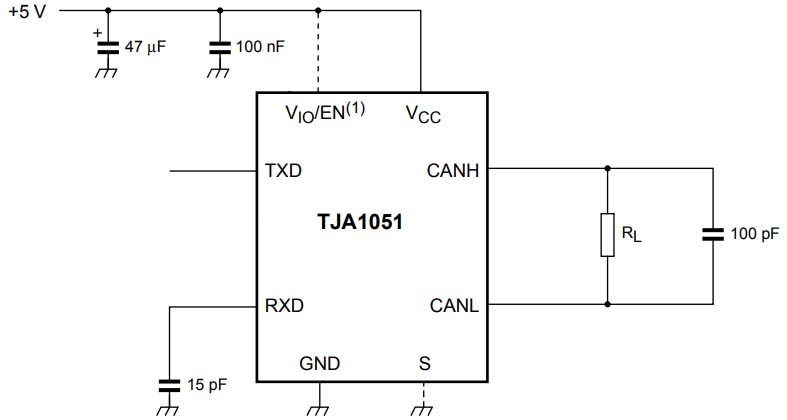

Timing test circuit for CAN transceiver

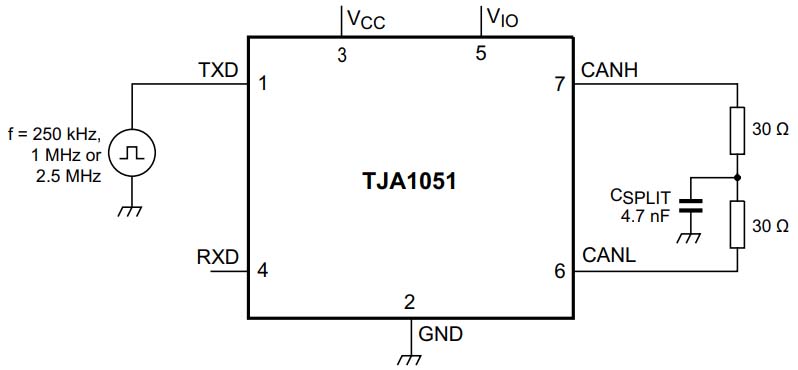

Test circuit for measuring transceiver driver symmetry

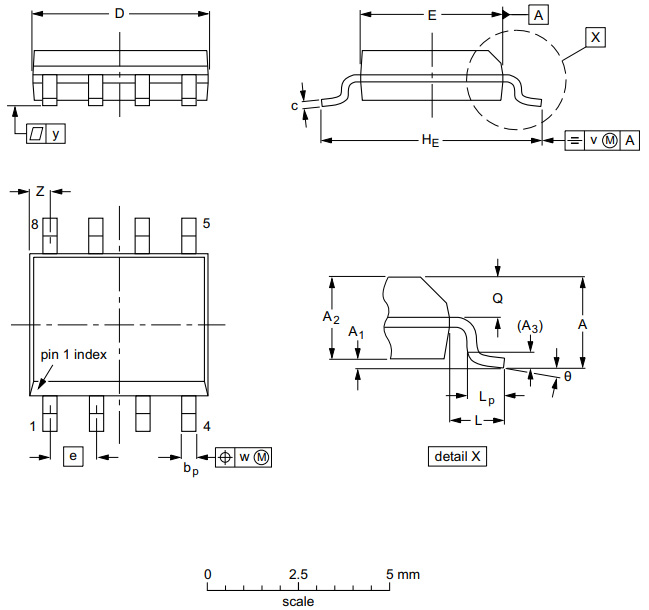

TJA1051 Package

The following diagram shows the TJA1051 package.

Package outline

TJA1051 Manufacturer

NXP Semiconductors enables secure connections and infrastructure for a smarter world, advancing solutions that make lives easier, better and safer. As the world leader in secure connectivity solutions for embedded applications, NXP is driving innovation in the secure connected vehicle, end-to-end security & privacy and smart connected solutions markets. Built on more than 60 years of combined experience and expertise, the company has 45,000 employees in more than 35 countries. Freescale Semiconductor has been acquired by NXP Semiconductor. Freescale Semiconductor parts are now a part of the NXP family (Dec 2015).



Datasheet PDF

TJA1051T/3/1J Documents

Download datasheets and manufacturer documentation for TJA1051T/3/1J

Datasheets
TJA1051
Environmental Information
NXP RoHS3 Cert

Frequently Asked Questions

What is the essential property of the TJA1051?
The TJA1051 is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed CAN applications in the automotive industry, providing differential transmit and receive capability to (a microcontroller with) a CAN protocol controller.
What are the advantages of the TJA1051 over the TJA1050 transceiver? Where is it reflected?
The TJA1051 is a high-speed CAN stand-alone transceiver with Silent mode. It combines the functionality of the TJA1050 transceiver with improved EMC and ESD handling capability. Improved slope control and high DC handling capability on the bus pins provides additional application flexibility.
How many versions of TJA1051 are there? What's the difference between them?
The TJA1051 is available in three versions, distinguished only by the function of pin 5: The TJA1051T is backwards compatible with the TJA1050; The TJA1051T/3 and TJA1051TK/3 allow for direct interfacing to microcontrollers with supply voltages down to 3 V; The TJA1051T/E allows the transceiver to be switched to a very low-current Off mode. There are three versions of the TJA1051 available, only differing in the function of a single pin.
FAQ
What is the essential property of the TJA1051?
The TJA1051 is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed CAN applications in the automotive industry, providing differential transmit and receive capability to (a microcontroller with) a CAN protocol controller.
What are the advantages of the TJA1051 over the TJA1050 transceiver? Where is it reflected?
The TJA1051 is a high-speed CAN stand-alone transceiver with Silent mode. It combines the functionality of the TJA1050 transceiver with improved EMC and ESD handling capability. Improved slope control and high DC handling capability on the bus pins provides additional application flexibility.
How many versions of TJA1051 are there? What's the difference between them?
The TJA1051 is available in three versions, distinguished only by the function of pin 5: The TJA1051T is backwards compatible with the TJA1050; The TJA1051T/3 and TJA1051TK/3 allow for direct interfacing to microcontrollers with supply voltages down to 3 V; The TJA1051T/E allows the transceiver to be switched to a very low-current Off mode. There are three versions of the TJA1051 available, only differing in the function of a single pin.
