IC OPAMP JFET 1 CIRCUIT 8SO
TL061 is a Low power JFET single operational amplifiers. This article mainly introduce its features, pinout, datasheet PDF and other detailed information about STMicroelectronics TL061
TL061CD
The TL061 is a high-speed JFET-input single operational amplifier, which integrates well-matched high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The device has a high slew rate, low input bias and offset current, and low offset voltage temperature coefficient.

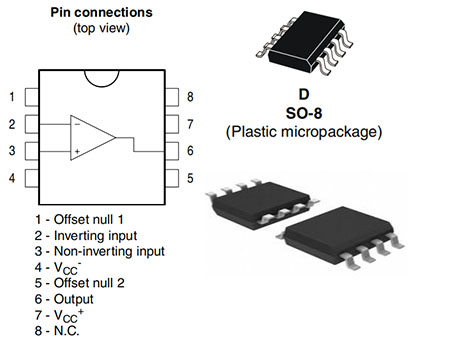

Symbol
Footprint

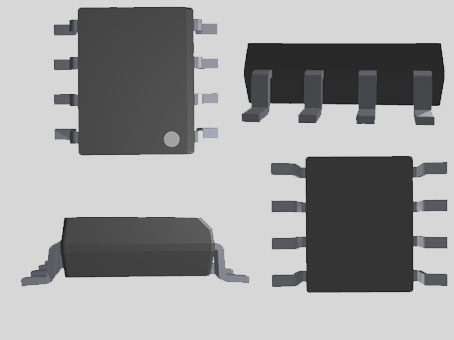

3D Model
■ Very low power consumption: 200 µA
■ Wide common mode (up to VCC+) and Differential voltage range
■ Low input bias and offset current
■ Output short circuit protection
■ High input impedance JFET input stage
■ Internal frequency compensation
■ Latch-free operation
■ High slew rate: 3.5 V/µs
STMicroelectronics TL061CD technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TL061CD.
STMicroelectronics TL061CD technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TL061CD.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 15V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | TL061 | |
| Pin Count | 8 | |
| Operating Supply Voltage | 18V | |
| Number of Channels | 1Channel | |
| Operating Supply Current | 200μA | |
| Nominal Supply Current | 250μA | |
| Power Dissipation | 680mW | |
| Slew Rate | 3.5V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | J-FET | |
| Common Mode Rejection Ratio | 70 dB | |
| Current - Input Bias | 30pA | |
| Voltage - Supply, Single/Dual (±) | 6V~36V ±3V~18V | |
| Output Current per Channel | 20mA | |
| Input Offset Voltage (Vos) | 15mV | |
| Neg Supply Voltage-Nom (Vsup) | -15V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Unity Gain BW-Nom | 1000 kHz | |
| Voltage Gain | 75.56dB | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Voltage - Input Offset | 3mV | |
| Low-Bias | YES | |
| Bias Current-Max (IIB) @25C | 0.0004μA | |
| Dual Supply Voltage | 9V | |
| Input Offset Current-Max (IIO) | 0.005μA | |
| Height | 1.25mm | |
| Length | 4.9mm | |
| Width | 3.9mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• Tablets
• Computers
• White goods
• Personal electronics
Functional Block Diagram
Input offset voltage null circuit
■ STMicroelectronics is a French-Italian multinational electronics and semiconductor manufacturer headquartered in Geneva, Switzerland.
■ It was formed by the merger of two state-owned semiconductor companies in 1987: France's "Thomson Semiconducteurs" and Italy's "SGS Microelettronica".
■ It is often referred to as "ST" and is the largest semiconductor chip manufacturer in Europe by revenue.
■ STMicroelectronics corporate headquarters and EMEA regional headquarters are located in Geneva, while the holding company STMicroelectronics N.V. is incorporated in the Netherlands.
■ The company's US headquarters are located in Koper, Texas. The Asia-Pacific region is headquartered in Singapore, while the Japan and South Korea operations are headquartered in Tokyo. The headquarter of the company in China is located in Shanghai.
Download datasheets and manufacturer documentation for STMicroelectronics TL061CD.
Download datasheets and manufacturer documentation for TL061CD
