The TL062CD is a high-speed JFET input single operational amplifier. This article will unlock more details about TL062CD.
TL062CD OP-AMP: Datasheet, Schematic, Typical Application
IC OPAMP JFET 2 CIRCUIT 8SO The TL062CD is a high-speed JFET input single operational amplifier. This article will unlock more details about TL062CD.
124
Sep 6, 2021
Trista Robinson
TL062CD
5000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.92482 | $1.92 |
| 10+ | $1.81587 | $18.16 |
| 100+ | $1.71309 | $171.31 |
| 500+ | $1.61612 | $808.06 |
| 1000+ | $1.52464 | $1524.64 |
Unit Price:$1.92482
Subtotal: $1.92
Quick Links

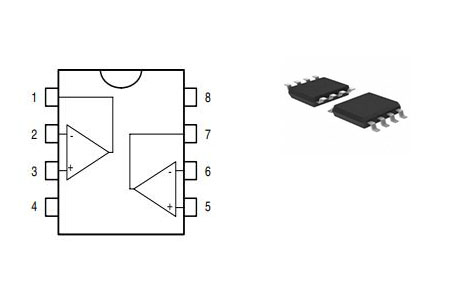

TL062CD Pinout
| Pin | Pin Name |
| 1 | Output 1 |
| 2 | Inverting input 1 |
| 3 | Non-inverting input 1 |
| 4 | Vcc |
| 5 | Non-inverting input 2 |
| 6 | Inverting input 2 |
| 7 | Output 2 |
| 8 | Vcc |
TL062CD CAD Model

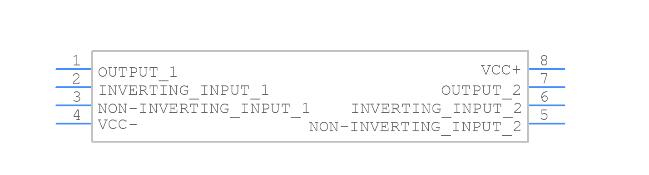

Symbol
Symbol

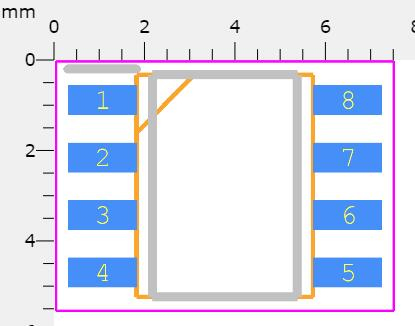

Footprint
Footprint

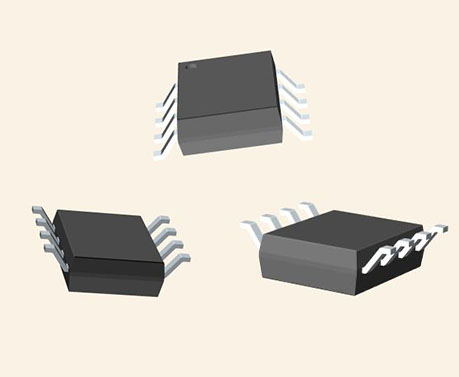

3D Model
3D Model
Specifications
STMicroelectronics TL062CD technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TL062CD.
TL062CD Tech Specifications
TL062CD Tech Specifications
STMicroelectronics TL062CD technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TL062CD.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 months ago) | |
| Factory Lead Time | 25 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Weight | 4.535924g | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 2Functions |
| Product Attribute | Attribute Value | |
|---|---|---|
| Supply Voltage | 15V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | TL062 | |
| Pin Count | 8 | |
| Operating Supply Voltage | 18V | |
| Power Supplies | +-15V | |
| Number of Channels | 2Channels | |
| Operating Supply Current | 200μA | |
| Nominal Supply Current | 250μA | |
| Power Dissipation | 680mW | |
| Slew Rate | 3.5V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | J-FET | |
| Common Mode Rejection Ratio | 70 dB | |
| Current - Input Bias | 30pA | |
| Voltage - Supply, Single/Dual (±) | 6V~36V ±3V~18V | |
| Output Current per Channel | 20mA | |
| Input Offset Voltage (Vos) | 15mV | |
| Gain Bandwidth Product | 1MHz |
| Product Attribute | Attribute Value | |
|---|---|---|
| Neg Supply Voltage-Nom (Vsup) | -15V | |
| Unity Gain BW-Nom | 1000 kHz | |
| Voltage Gain | 75.56dB | |
| Average Bias Current-Max (IIB) | 0.01μA | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Voltage - Input Offset | 3mV | |
| Low-Bias | YES | |
| Micropower | YES | |
| Bias Current-Max (IIB) @25C | 0.0004μA | |
| Dual Supply Voltage | 9V | |
| Height | 1.25mm | |
| Length | 4.9mm | |
| Width | 3.9mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
TL062CD Features
■Very low power consumption: 200 µA
■ Wide common-mode (up to VCC+) and differential voltage ranges
■ Low input bias and offset currents
■ Output short-circuit protection
■ High input impedance JFET input stage
■ Internal frequency compensation
■ Latch-up free operation
■ High slew rate: 3.5 V/µs

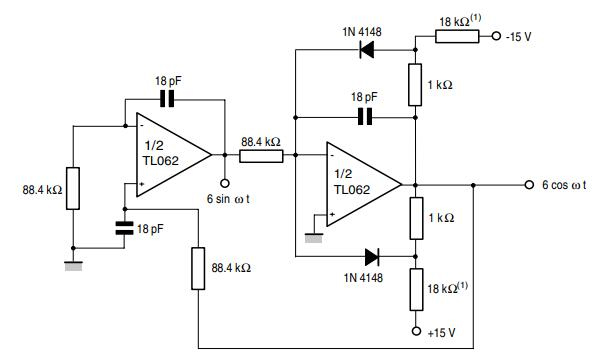

TL062CD Typical Application Circuit
TL062CD Typical Application Circuit

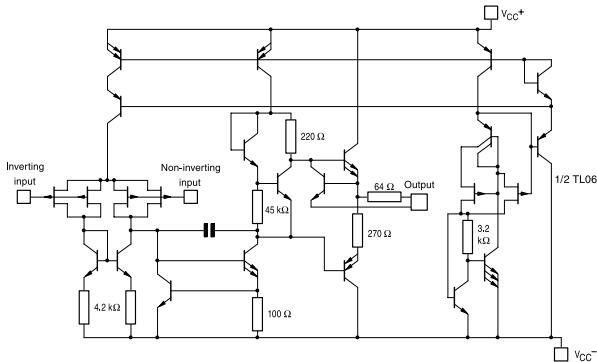

TL062CD Schematic
TL062CD Schematic

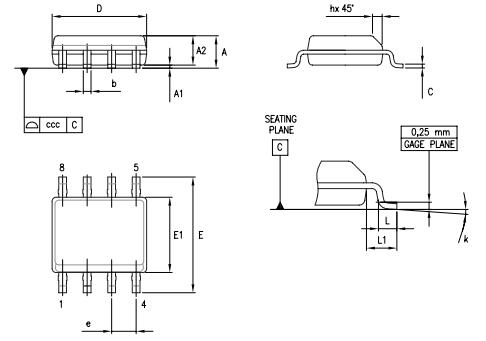

TL062CD Package
TL062CD Package
TL062CD Manufacturer
STMicroelectronics believe the future should not be in the labs of a few, but in the hands of the many and ST believes in open ecosystems and a partnership approach. ST provides easy-to-use software development tools, design kits, and support educational initiatives to make our technologies accessible to more engineers and enthusiasts today.
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics TL062CD.
TL062CD Documents
TL062CD Documents
Download datasheets and manufacturer documentation for TL062CD
Frequently Asked Questions
What is the TL062CD?
The TL062CD is a high-speed JFET input single operational amplifier. It incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit and features high slew rates, low input bias and offset currents, and a low offset voltage temperature coefficient.
What package does the TL062CD come?
The TL062CD come with an 8-SOIC (0.154, 3.90mm Width).
What is the Operating Temperature of TL062CD?
The Operating Temperature of TL062CD is from 0°C to 70°C.
How many pins does TL062CD have?
8-pins.
FAQ
What is the TL062CD?
The TL062CD is a high-speed JFET input single operational amplifier. It incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit and features high slew rates, low input bias and offset currents, and a low offset voltage temperature coefficient.
What package does the TL062CD come?
The TL062CD come with an 8-SOIC (0.154, 3.90mm Width).
What is the Operating Temperature of TL062CD?
The Operating Temperature of TL062CD is from 0°C to 70°C.
How many pins does TL062CD have?
8-pins.
