TL071 OP-AMP: Where & How to Use TL071？

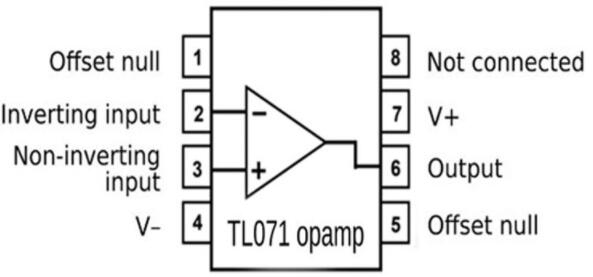

TL071 Pinout

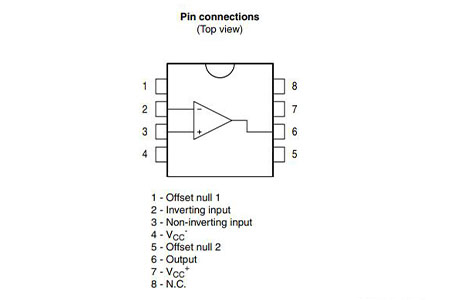

TL071 Symbol

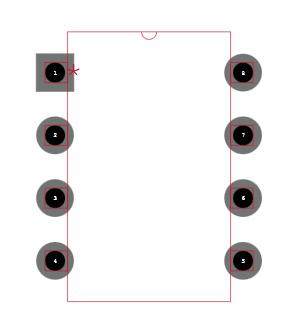

TL071 Footprint

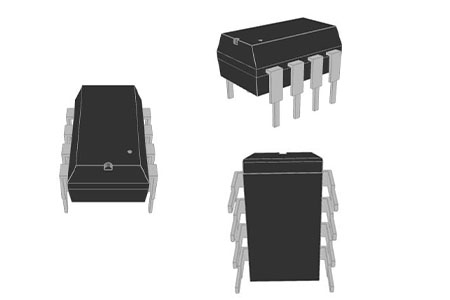

TL071 3D Model

The TL071 is a high-speed JFET input single operational amplifier. This JFET input operational amplifier incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The device features high slew rates, low input bias and offset currents, and a low offset voltage temperature coefficient

The TL071 is a Single Package Operational Amplifier, meaning it has one Op-Amps inside it, this op-amp has many optional features that we will discuss later.

Where to use TL071

The TL071 Op-Amp is distinguished by the use of high-voltage bipolar transistors, which enable the transistor to have a very high input impedance and low bias current. This Op-Amp also features low noise and harmonic distortion, making it an excellent choice for audio pre-amplifiers. Aside from that, these amplifiers can be utilized in high-speed integrators, fast D/A converters, sample and hold circuits, and a variety of other circuits that require low input offset voltage, low input bias current, high input impedance, high slew rate, and broad bandwidth. Low noise and offset voltage drift are also features of the devices.

We may use this IC for audio pre-amplification, weigh scales, ECG and medical equipment, and more. Because of its low price relative to its specifications, it can provide a sound quality advantage. A non-inverting op-amp design is illustrated below as an example.

How to use TL071

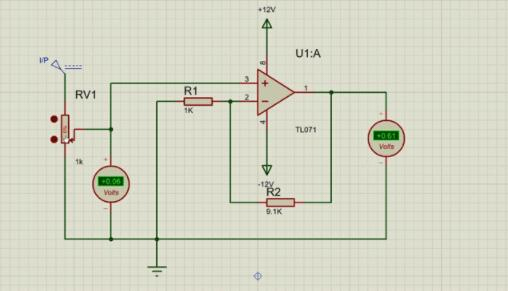

The TL071 Op-amp is configured as a non-inverting arrangement in the simulated circuit above. The op-gain amp is set to ten. We used a 1K resistor and a 9.1K resistor for that. As you can see, we used a variable potentiometer for the simulation. By varying the potentiometer, we can change the input voltage and thus the output voltage. To power the op-amp, we used +12V and -12V supplies. Because the gain of the op-amp is 10, if we provide 1V at the input, we will get 10V at the output.

■ Wide common-mode (up to VCC+) and differential voltage range

■ Low input bias and offset currenT

■ Low noise en = 15 nV/ √Hz (typ)

■ Output short-circuit protection

■ High input impedance JFET input stage

■ Low harmonic distortion: 0.01 % (typ)

■ Internal frequency compensation

■ Latch-up free operation

■ High slew rate: 16 V /µs (typ)

• Solar energy: string and central Inverter

• Motor drives: AC and servo drive control and power stage modules

• Single-phase online UPS

• Three-phase UPS

• Pro audio mixers

• Battery test equipment

The equivalent for TL071

• TL072

• Tl074

• LM358

• LM324

• LM741C

• LM709C

• LM201

• MC1439

• LM748

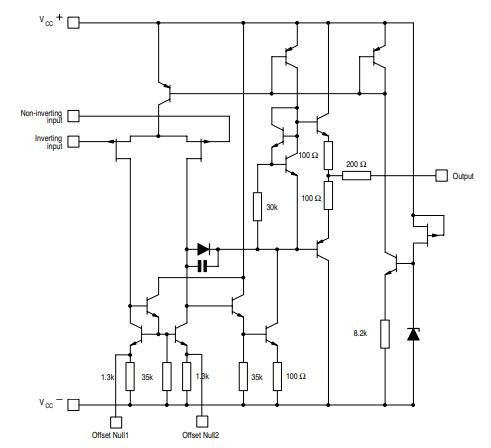

TL071 Schematic

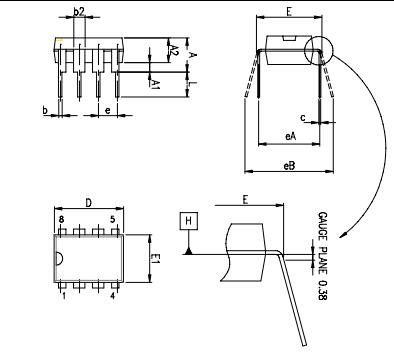

TL071 Package
