TL072A JFET Dual Op-Amp: Pinout, Equivalent and Datasheet

Pinout

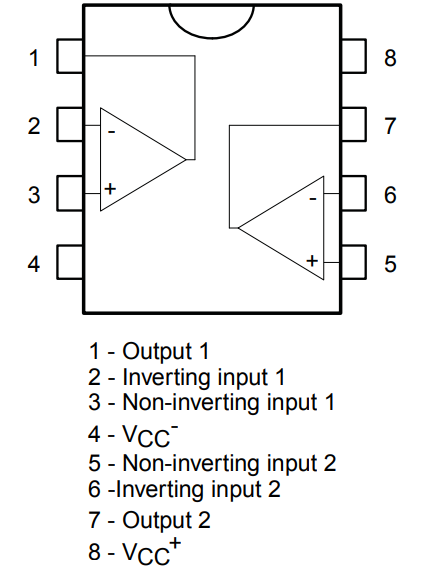

Pin connections (top view)

Symbol

Footprint

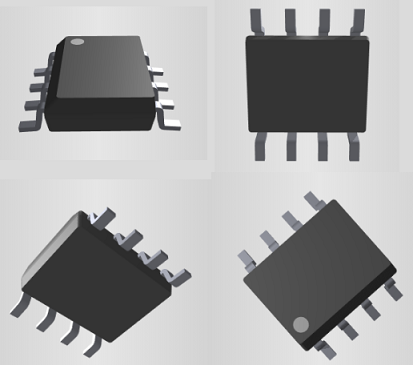

3D Model

The TL072A is high speed JFET input dual operational amplifier incorporating well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The device features high slew rates, low input bias and offset current, and low offset voltage temperature coefficients. These are high-voltage JFET-input operational amplifiers with low noise versions and high slew rate. The Input bias and Offset currents is also low. It’s a dual Op-amp IC means it contain two op-amp inside. This TL07x series come with low harmonic distortion and low noise which makes it fit for the use where high-accuracy needed. It also used in the application of audio pre-amplification.

This article provides you with a basic overview of the TL072A JFET Dual Operational Amplifier, including its pin descriptions, features and specifications, etc., to help you quickly understand what TL072A is.

● Wide common-mode (up to V_CC⁺) and differential voltage range

● Low input bias and offset current

● Low noise e_n = 15 nV/√Hz (typ)

● Output short-circuit protection

● High input impedance JFET input stage

● Low harmonic distortion: 0.01 % (typical)

● Internal frequency compensation

● Latch-up free operation

● High slew rate: 16 V/µs (typ)

● Distortion of Harmonic is low (normally 0.003%)

● Low noise at the operation

   V_n = 18 nV/√Hz (Typical) at f = 1 kHz

● Having high slew rate (normally 13 V/μs)

● Supply voltage ranges from 6 to 36v

● Having infinite output short circuit duration

● Storage temperature ranges -65 to 150 °C

● Operating Temperature is -40 to 125 °C

● Output current is 10mA (normally)

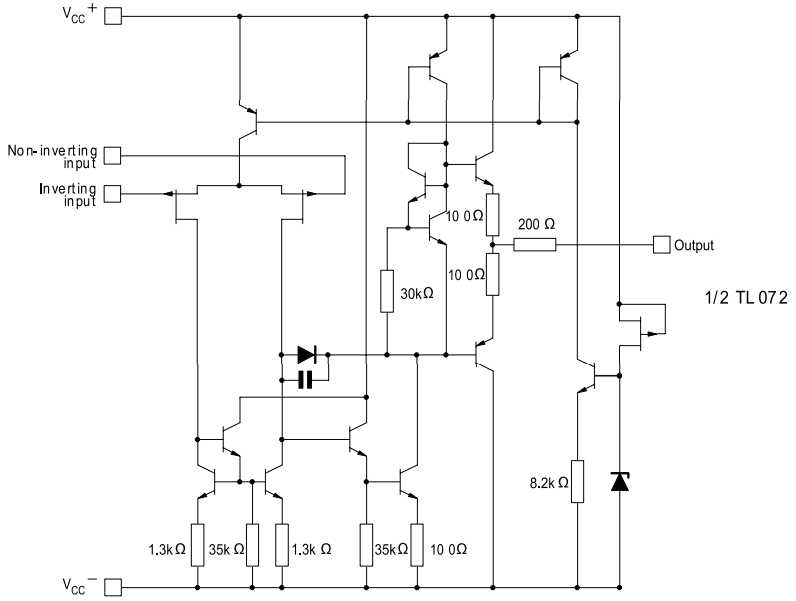

Schematic diagram

TL072 is mainly used where high-accuracy is needed with respect to low harmonic and noise, as used for audio pre-amplification. The audio pre-amplification means for getting output audio with low noise, interference, distortion and also used for controlling the volume, bass and treble. It also compares the voltage like the other op-amp ICs do. So, can be used as a voltage comparator IC.

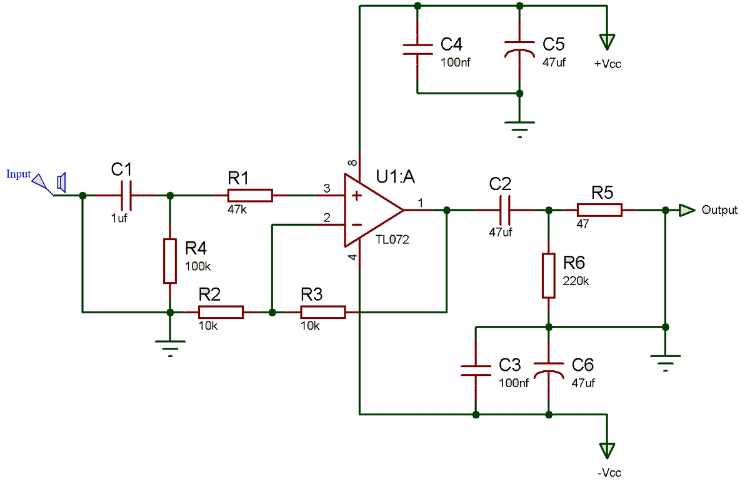

We can use this IC for audio pre-amplification or for better sound quality with having a low price of it with a high accuracy. In the circuit, as the audio input is attached it will receive from the output with low noise and distortion. We can increase the value of resistor R4 due to having high input impedance. R1 is used for impedance balancing, which helps in getting low distortion. R2 and R3 are negative feedback resistors, used for measuring the output signal. If the value of R2 and R3 is placed too high then the noise will increase and if it is too low then the noise will be lower, but it may increase distortion as the load on IC gets high. R6 is used to discharge or empty the C2 flows in order to reduce noise strikes.

100 kHz quadruple oscillator

Voltage follower

Gain-of-10 inverting amplifier

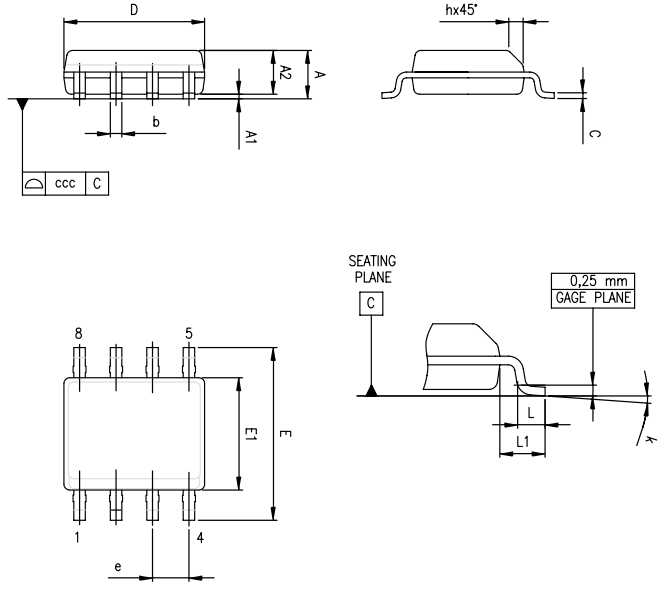

SO8 package mechanical drawing

STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
