OP Amp Quad GP ±18V 14-Pin PDIP Tube
TL074CN is a high-speed JFET input single operational amplifier. This article will introduce more details about TL074CN, including Typical Characteristics, CAD models, Logic Symbols, Block diagrams, and so on.
TL074CN
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.8047 | $1.8 |
| 10+ | $1.70254 | $17.03 |
| 100+ | $1.60617 | $160.62 |
| 500+ | $1.51526 | $757.63 |
| 1000+ | $1.42949 | $1429.49 |
The TL074CN is the next-generation version of the industry-standard TL07x (TL071, TL072, and TL074) devices. The TL074CN provides outstanding value for cost-sensitive applications, with features including low offset (1 mV, typical), high slew rate (20 V/μs), and common-mode input to the positive supply. High ESD (1.5 kV, HBM), integrated EMI and RF filters, and operation across the full –40°C to 125°C enable the TL074CN to be used in the most rugged and demanding applications.

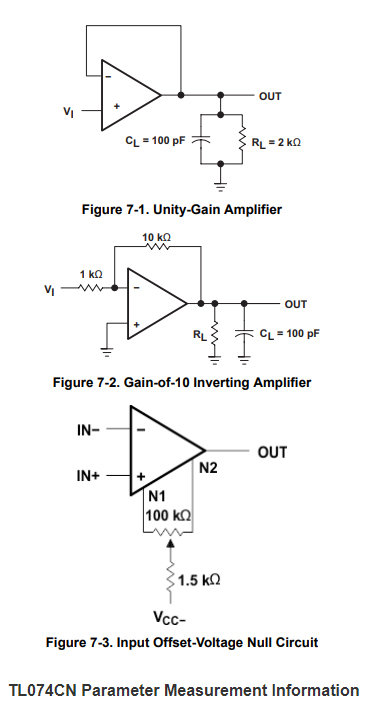

TL074CN Typical Characteristics
TL074CN Symbol
TL074CN Footprint

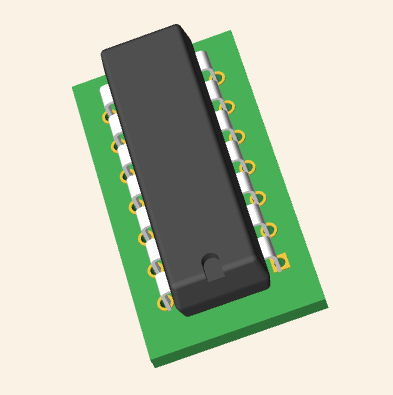

TL074CN 3D Model

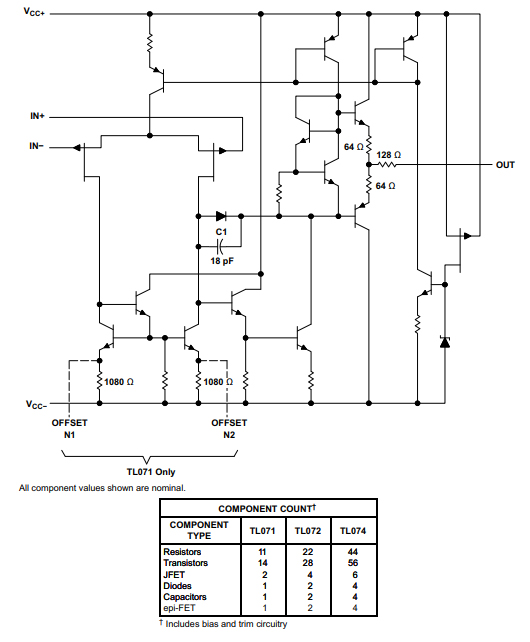

TL074CN Block Diagram
NA TL074CN technical specifications, attributes, parameters and parts with similar specifications to NA TL074CN.
Texas Instruments TL074CN technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TL074CN.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 5 days ago) | |
| Factory Lead Time | 12 Weeks | |
| Contact Plating | Gold | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 14-DIP (0.300, 7.62mm) | |
| Number of Pins | 14Pins | |
| Manufacturer Package Identifier | PDIP0014-C | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 14Terminations | |
| ECCN Code | EAR99 | |
| Terminal Position | DUAL | |
| Number of Functions | 4Functions | |
| Supply Voltage | 15V | |
| Base Part Number | TL074 | |
| Pin Count | 14 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Channels | 4Channels | |
| Operating Supply Current | 1.4mA | |
| Nominal Supply Current | 10mA | |
| Max Supply Current | 10mA | |
| Slew Rate | 13V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | J-FET | |
| Common Mode Rejection Ratio | 70 dB | |
| Current - Input Bias | 65pA | |
| Voltage - Supply, Single/Dual (±) | ±5V~15V | |
| Input Offset Voltage (Vos) | 10mV | |
| Bandwidth | 3MHz | |
| Rise Time | 100ns | |
| Neg Supply Voltage-Nom (Vsup) | -15V | |
| Unity Gain BW-Nom | 3000 kHz | |
| Voltage Gain | 106.02dB | |
| Average Bias Current-Max (IIB) | 0.007μA | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Supply Voltage Limit-Max | 18V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Input Offset | 3mV | |
| Low-Bias | YES | |
| Micropower | NO | |
| Bias Current-Max (IIB) @25C | 0.0002μA | |
| Programmable Power | NO | |
| Dual Supply Voltage | 5V | |
| Neg Supply Voltage-Max (Vsup) | -18V | |
| Nominal Gain Bandwidth Product | 3MHz | |
| Max I/O Voltage | 10mV | |
| Power | NO | |
| Input Offset Current-Max (IIO) | 0.01μA | |
| Height | 5.08mm | |
| Length | 19.3mm | |
| Width | 6.35mm | |
| Thickness | 3.9mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• High slew rate : 20 V/μs (TL07xH, typ)
• Low offset voltage : 1 mV (TL07xH, typ)
• Low offset voltage drift: 2 μV/°C
• Low power consumption: 940 μA/ch (TL07xH, typ)
• Wide common-mode and differential
voltage ranges
– Common-mode input voltage range
includes VCC+
• Low input bias and offset currents
• Low noise:
Vn = 18 nV/√Hz (typ) at f = 1 kHz
• Output short-circuit protection
• Low total harmonic distortion: 0.003% (typ)
• Wide supply voltage :
±2.25 V to ±20 V, 4.5 V to 40 V
Texas Instruments Incorporated (TI) is an American technology corporation based in Dallas, Texas, that creates and manufactures semiconductors and integrated circuits for electronic designers and manufacturers around the world. After a reorganization of Geophysical Service Incorporated, a company founded in 1930 that made equipment for the seismic industry as well as defense electronics, Texas Instruments was formed in 1951.
Download datasheets and manufacturer documentation for TL074CN
