Quality Tone Control Using TL074 or LM324 (14DIP IC)
IC OPAMP JFET 4 CIRCUIT 14SO
The TL074ID is a high-speed JFET input single operational amplifier.
TL074ID OP-AMP: Pinout, Specification, and Datasheet
IC OPAMP JFET 4 CIRCUIT 14SO The TL074ID is a high-speed JFET input single operational amplifier.
129
Jun 11, 2021
Marian
TL074ID
30In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.56321 | $2.56 |
| 10+ | $2.41813 | $24.18 |
| 100+ | $2.28125 | $228.13 |
| 500+ | $2.15212 | $1076.06 |
| 1000+ | $2.03031 | $2030.31 |
Unit Price:$2.56321
Subtotal: $2.56
Quick Links
TL074ID Pinout
TL074ID CAD Model
Symbol
Footprint

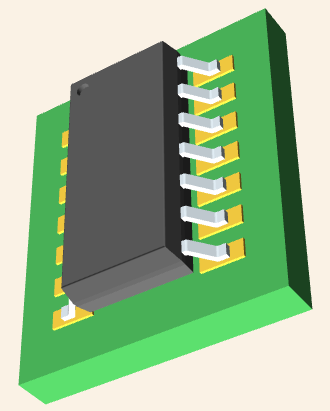

3D Model
TL074ID Description
The TL074ID incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The device features high slew rates, low input bias and offset currents, and low offset voltage temperature coefficients.
TL074ID Features
• Wide common-mode (up to VCC+) and differential voltage range
• Low input bias and offset current
• Low noise en = 15 nV/ √Hz (typ)
• Output short-circuit protection
• High input impedance JFET input stage
• Low harmonic distortion: 0.01% (typical)
• Internal frequency compensation
• Latch-up free operation
• High slew rate: 16 V/µs (typical)
Specifications
STMicroelectronics TL074ID technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TL074ID.
TL074ID Tech Specifications
TL074ID Tech Specifications
STMicroelectronics TL074ID technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TL074ID.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 months ago) | |
| Factory Lead Time | 25 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 14Pins | |
| Operating Temperature | -40°C~105°C | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 14Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 4Functions | |
| Supply Voltage | 15V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Pitch | 1.27mm | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | TL074 | |
| Pin Count | 14 | |
| Power Supplies | +-15V | |
| Number of Channels | 4Channels | |
| Operating Supply Current | 1.4mA | |
| Nominal Supply Current | 2.5mA | |
| Power Dissipation | 680mW | |
| Output Current | 40mA | |
| Slew Rate | 13V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | J-FET | |
| Common Mode Rejection Ratio | 80 dB | |
| Current - Input Bias | 20pA | |
| Voltage - Supply, Single/Dual (±) | 6V~36V ±3V~18V | |
| Output Current per Channel | 40mA | |
| Input Offset Voltage (Vos) | 10mV | |
| Neg Supply Voltage-Nom (Vsup) | -15V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Unity Gain BW-Nom | 3000 kHz | |
| Voltage Gain | 106.02dB | |
| Average Bias Current-Max (IIB) | 0.02μA | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Supply Voltage Limit-Max | 18V | |
| Voltage - Input Offset | 3mV | |
| Low-Bias | YES | |
| Max Frequency | 100kHz | |
| Bias Current-Max (IIB) @25C | 0.0002μA | |
| Neg Supply Voltage-Max (Vsup) | -18V | |
| Height | 1.65mm | |
| Length | 8.75mm | |
| Width | 4mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
TL074ID Schematic Diagram

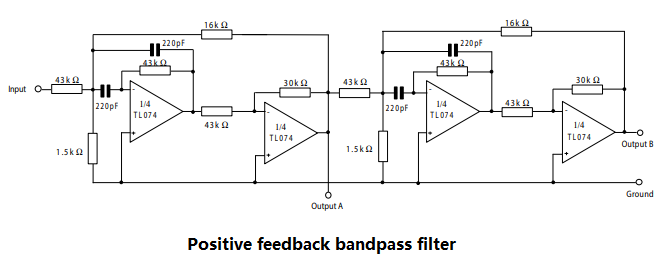

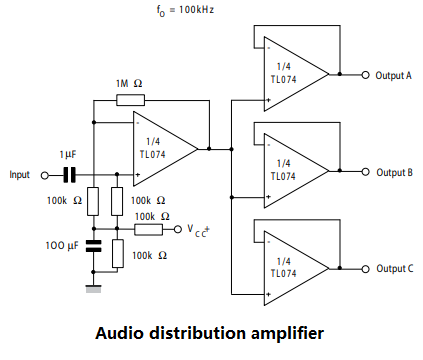

TL074ID Typical Application
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics TL074ID.
TL074ID Documents
TL074ID Documents
Download datasheets and manufacturer documentation for TL074ID
Datasheets
TL074
TL074ID-STMicroelectronics-datasheet-21828679.pdf
TL074ID-STMicroelectronics-datasheet-12515684.pdf
TL074ID-STMicroelectronics-datasheet-14138390.pdf
TL074ID-STMicroelectronics-datasheet-10696296.pdf
TL074ID-STMicroelectronics-datasheet-109748.pdf
TL074ID Documents
Simulation Models
TL07x Spice Model
Frequently Asked Questions
What kind of amplifier is the tl074?
Note: Complete Technical Details can be found in the TL074 IC datasheet given at the end of this page. The TL074 is a Quad Package Operational Amplifier, meaning it has four Op-Amps inside it and each Op-Amp can be used independently.
Which is TSSOP package does the tl074 come in?
Available in 14-pin PDIP, SO-14, TSSOP packages with variations like TL74A, TL74AB, TL74AC, and TL74L. Note: Complete Technical Details can be found in the TL074 IC datasheet given at the end of this page. The TL074 is a Quad Package Operational Amplifier, meaning it has four Op-Amps inside it and each Op-Amp can be used independently.
Is the tl074 and LM324 the same IC?
However, they differ a bit in their characteristics since the TL074 has a JFET inside it. If you are curious to learn about few application circuits of this IC then you can read through how LM324 is used since both the IC shares the same applications.
Which op-amp IC is recommended for audio filtering and pre-amplification?
TL072, TL074, NE5532, NE5534 are good choices for your job. They are better than the conventional LM358 or uA741. They can be used for audio filtering and preamplification. I myself used TL074 and TL074 for an audio filtering circuit.
Are TL074 and MCP6004 interchangeable?
NO, they have the same pinout and function but different maximum voltages and different bandwidths and other specifications with just a cursory exam.
If the conditions are right they probably can be interchanged but it may also fail disastrously.
TL074 is still an active part and readily available for a couple of bucks. Why take risks or spend a lot of analysis time?
FAQ
What kind of amplifier is the tl074?
Note: Complete Technical Details can be found in the TL074 IC datasheet given at the end of this page. The TL074 is a Quad Package Operational Amplifier, meaning it has four Op-Amps inside it and each Op-Amp can be used independently.
Which is TSSOP package does the tl074 come in?
Available in 14-pin PDIP, SO-14, TSSOP packages with variations like TL74A, TL74AB, TL74AC, and TL74L. Note: Complete Technical Details can be found in the TL074 IC datasheet given at the end of this page. The TL074 is a Quad Package Operational Amplifier, meaning it has four Op-Amps inside it and each Op-Amp can be used independently.
Is the tl074 and LM324 the same IC?
However, they differ a bit in their characteristics since the TL074 has a JFET inside it. If you are curious to learn about few application circuits of this IC then you can read through how LM324 is used since both the IC shares the same applications.
Which op-amp IC is recommended for audio filtering and pre-amplification?
TL072, TL074, NE5532, NE5534 are good choices for your job. They are better than the conventional LM358 or uA741. They can be used for audio filtering and preamplification. I myself used TL074 and TL074 for an audio filtering circuit.
Are TL074 and MCP6004 interchangeable?
NO, they have the same pinout and function but different maximum voltages and different bandwidths and other specifications with just a cursory exam.
If the conditions are right they probably can be interchanged but it may also fail disastrously.
TL074 is still an active part and readily available for a couple of bucks. Why take risks or spend a lot of analysis time?
