TL082 JFET Dual Op-Amp: Where & How to Use TL082?

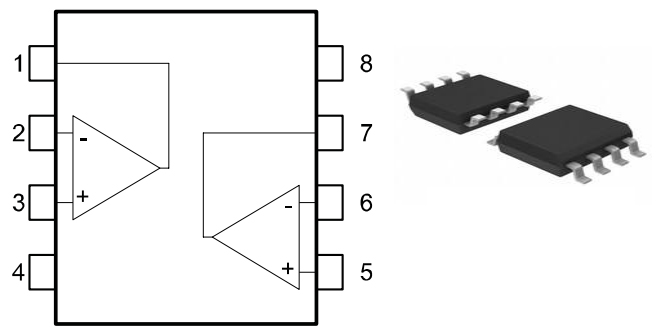

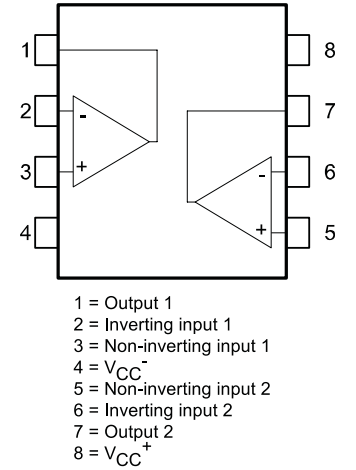

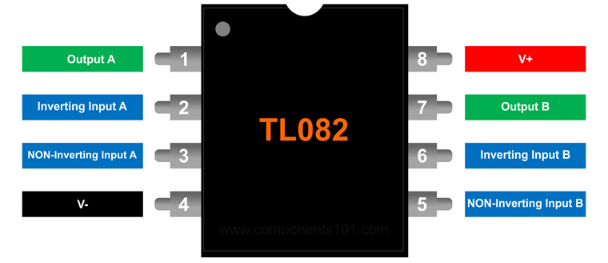

Pinout

PCB Symbol

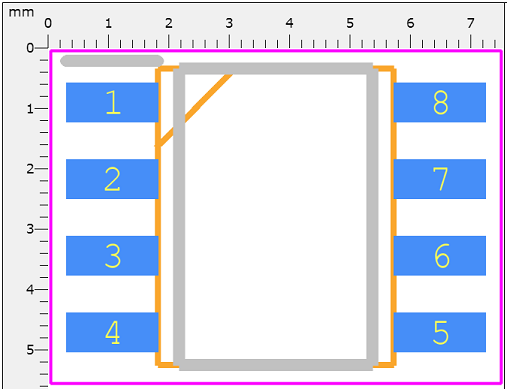

PCB Footprint

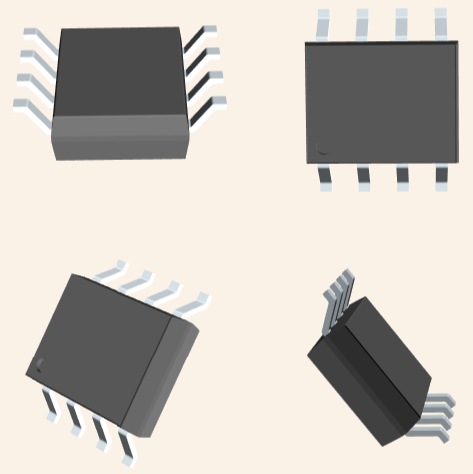

3D Model

The TL082 Op-Amp is a low cost, high speed, dual JFET input operational amplifier with an internally trimmed input offset voltage. This device requires a low supply current yet maintains a large gain bandwidth product and fast slew rate. In addition, well-matched high voltage JFET input devices provide very low input bias and offset currents. The TL082 is high speed JFET input dual operational amplifier incorporating well-matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit. This device features high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.

This article provides you with a basic overview of the TL082 JFET Dual Operation Amplifier, including its pin descriptions, features and specifications, etc., to help you quickly understand what TL082 is.

● Wide common-mode (up to V_CC⁺) and differential voltage range

● Low input bias and offset current

● Output short-circuit protection

● High input impedance JFET input stage

● Internal frequency compensation

● Latch up free operation

● High slew rate: 16 V/µs (typical)

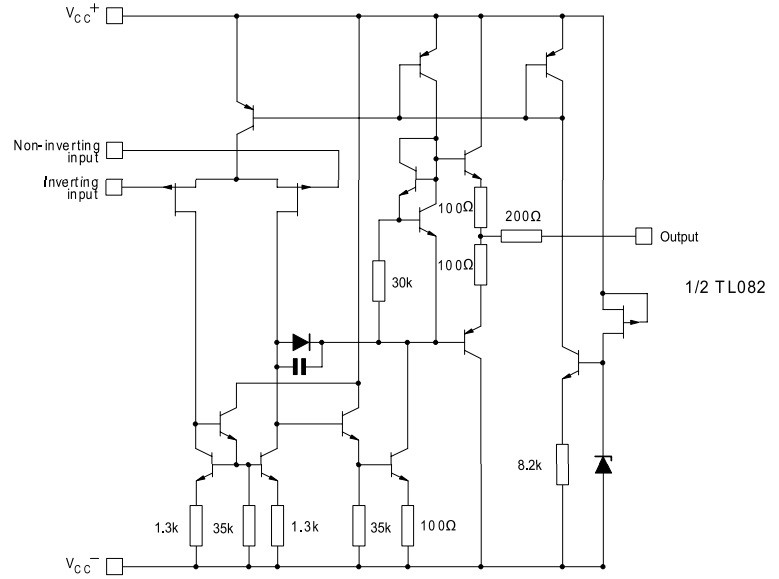

Schematic diagram

The TL082 is a Dual Package Operational Amplifier, meaning it has two Op-Amps inside it and each Op-Amp can be used independently.

The main distinguishing feature of the TL082 Op-Amp is that they incorporate high-voltage JFET and bipolar transistors which helps the transistor to have very high input impedance and low bias current. Also, this Op-Amp has low noise and harmonic distortion making it an ideal choice for audio pre-amplifiers. Other than that, these amplifiers may be used in applications such as high-speed integrators, fast D/A converters, sample and hold circuits and many other circuits requiring low input offset voltage, low input bias current, high input impedance, high slew rate and wide bandwidth. These devices also exhibit low noise and offset voltage drift. So, if you are looking for an Op-Amp IC with Quad package and JFET driven then this IC might be the right choice for you.

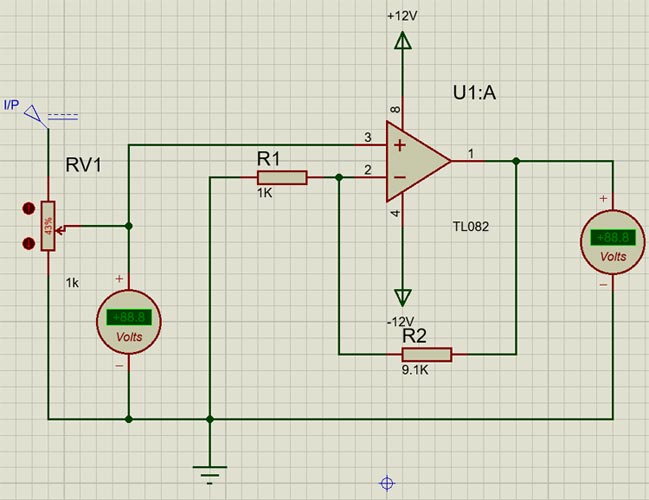

TL082 Op-Amp IC can be used for audio pre-amplification and it can provide an edge in terms of sound quality because of its price compared to its specs. As a test, a non-inverting op-amp configuration is shown below.

In the above the TL082 Op-amp is configured as a non-inverting configuration. The gain of the op-amp is set to 10. For that we have used a 1K resistor and a 9.1K resistor, as you can see for the simulation, we have used a variable potentiometer. By varying the potentiometer, we can vary the input voltage and the output voltage will also vary, to power the op-amp we have used +12V and -12V supply, as the gain of the op-amp is 10 so if we provide 1V at the input we will get 10V at the output and the simulated circuit shows exactly that.

● Circuit requiring high input impedance

● Buffer application

● Filter circuits, Voltage followers

● Integrator, Differentiator, Summer, adder, Voltage follower, etc.

● DC gain blocks

● Comparators (Loop control & regulation)

● Audio Amplifier

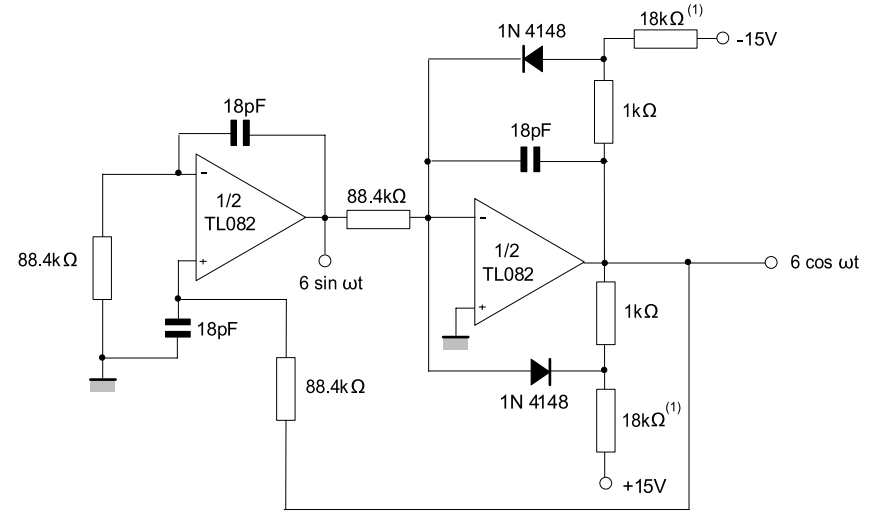

100 kHz quadruple oscillator

Voltage follower

Gain-of-10 inverting amplifier

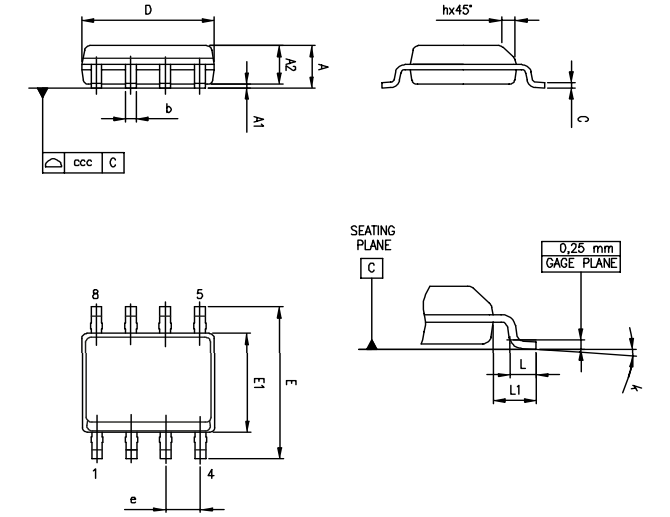

SO8 package outline

STMicroelectronics is a globally recognized semiconductor company. They are dedicated to developing semiconductor solutions for various microelectronics applications. STMicroelectronics enjoys unrivaled silicon and system expertise, strong manufacturing strength, IP portfolio,and solid relationships with their strategic partners. Based on these advantages, STMicroelectronics has become a pioneer in System-on-Chip (SoC) technology and its products has a positive effect in realizing today's convergence trends.
